Locking Hardware for Steel Ammo Can

Instructions:

1) Close the lid and latch of the ammo can and mark the center of the hole
where the locking hardware will be installed (try to be exact!)

2) Drill a 5/16”hole into the can at the center mark (drilling out a smaller
guide hole beforehand may be helpful)

3) Form the outside of the can,insert the locking stud through the drill hole

4) On the inside of the can,put the neoprene washer over the threads of the
locking stud,followed by the small washer,and then the nylon lock nut.Tighten
the assembly with a wrench,being aware that the “round” side of the locking
stud may have sharp edges/burs,so a tool should be utilized on”round”side,not
bare hands

5) For ammo cans with large holes,put the large washer between the ammo can’s
latch and the padlock in order to prevent the large latch hole from slipping
over the padlock

-If you finshin the assembly and find the locking stud is not centered,simply
file or drill the ammo can’s latch holes to be larger until the latches
properly fit the locking stud

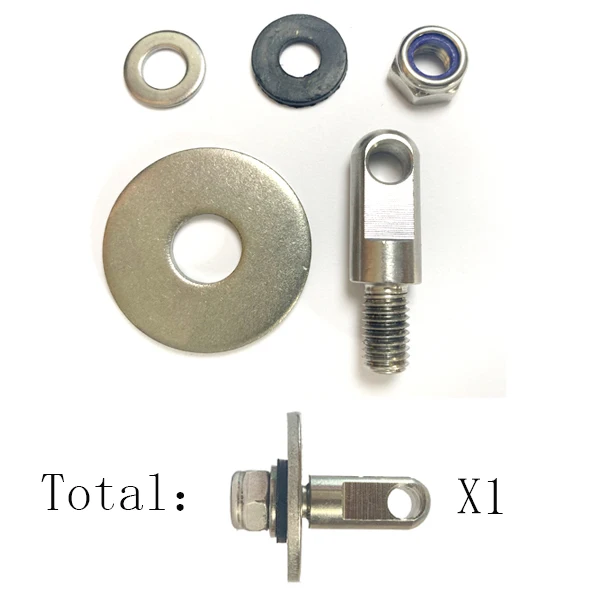

You will only get the accessories in the picture below,others are not included
