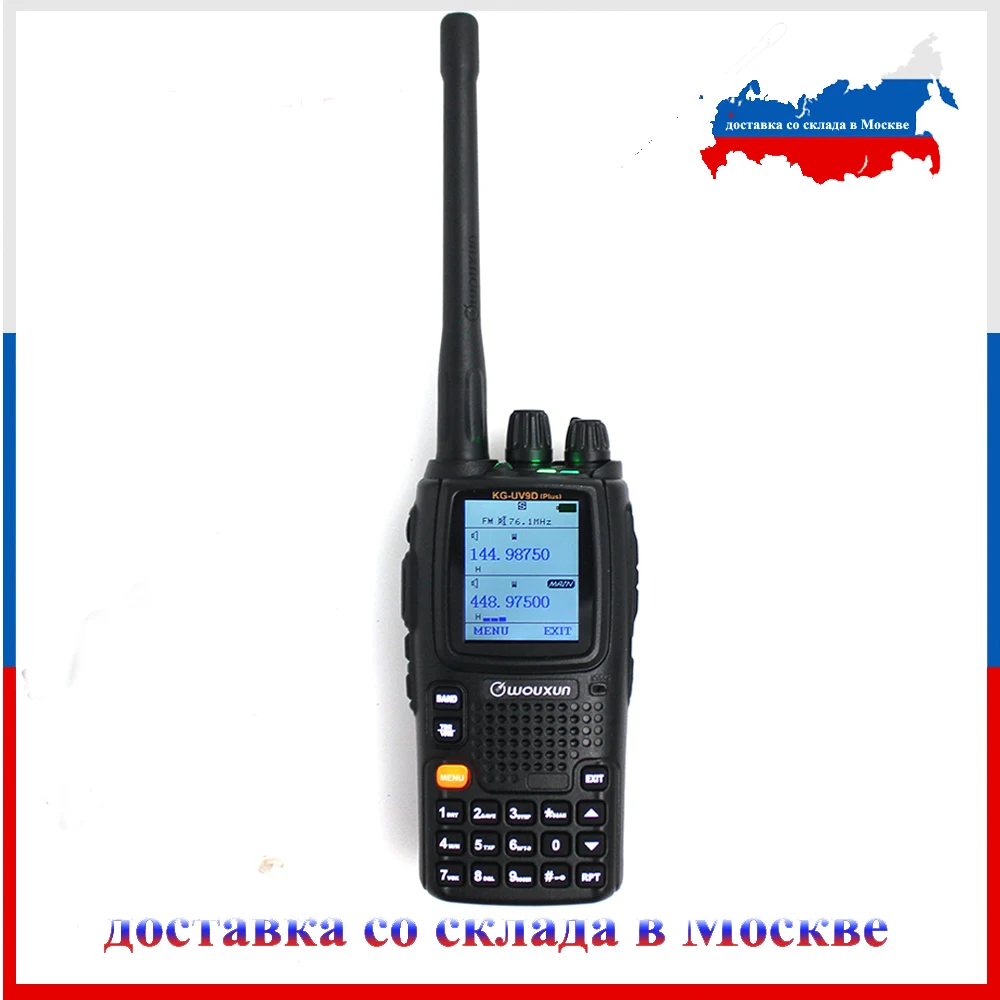

Wouxun-WalkieTalkie KG-UV9D Plus, estación de Radio de varias bandas, kg-uv9dplus, 76-174/230-250/350-512/700-985MHz, transceptor FM

Wouxun KG-UV9D Plus WalkieTalkie Multi Bands kg-uv9dplus Radio Station 76-174/230-250/350-512/700-985MHz FM Transceiver

Description of Features

New Functions
1. UHF/VHF or VHF/UHF Cross-Band Repeater
2. Completely turn off display screen background light

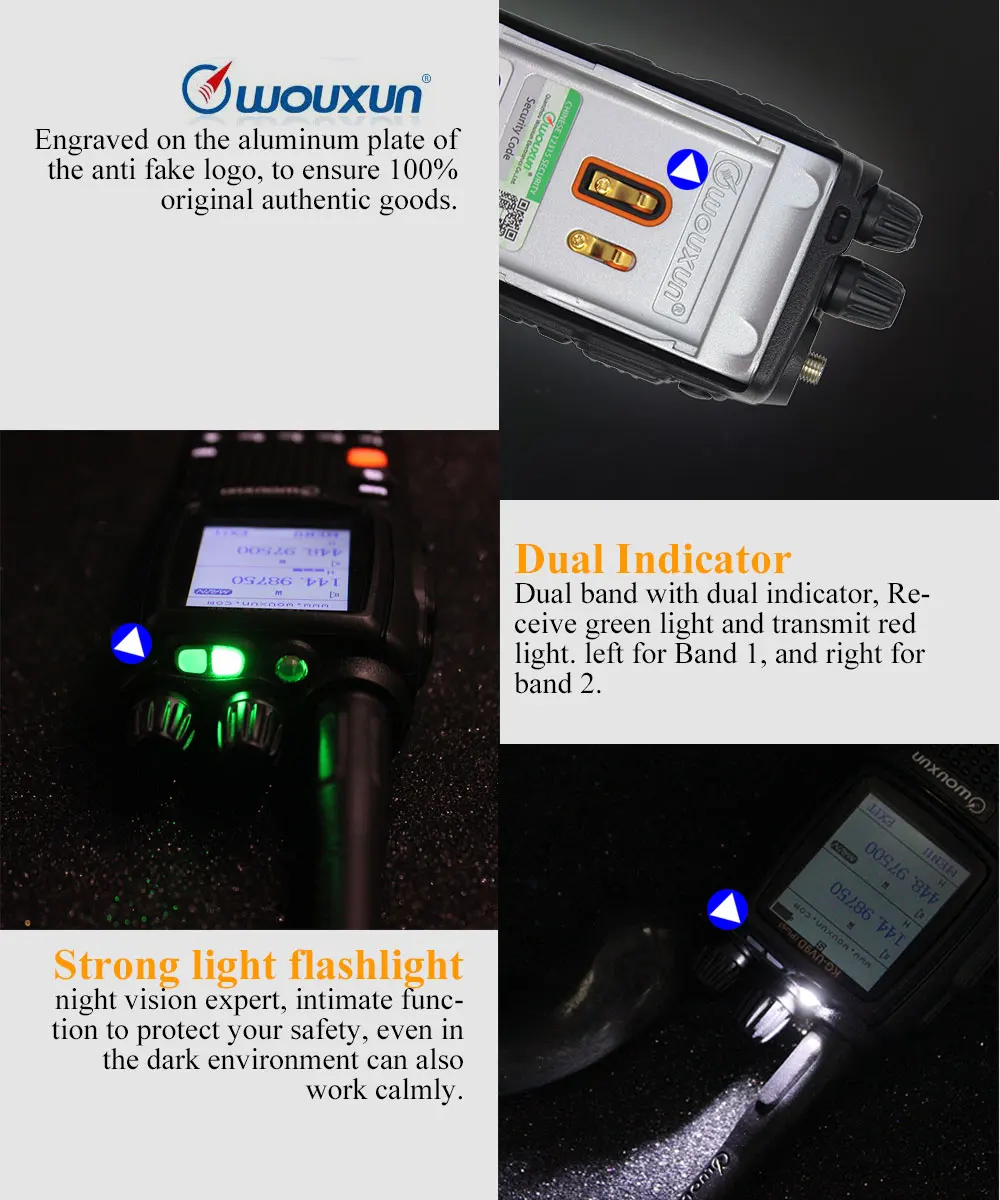

3. Completely trun off flickering indicator light

Old Functions
1. Duplex Work Mode
2. Duplex Work on A&B Areas (TX on one area while RX on the other area simultaneously)
3. Dual Receiving
4. RX on the same/different bands of A&B areas simultaneously

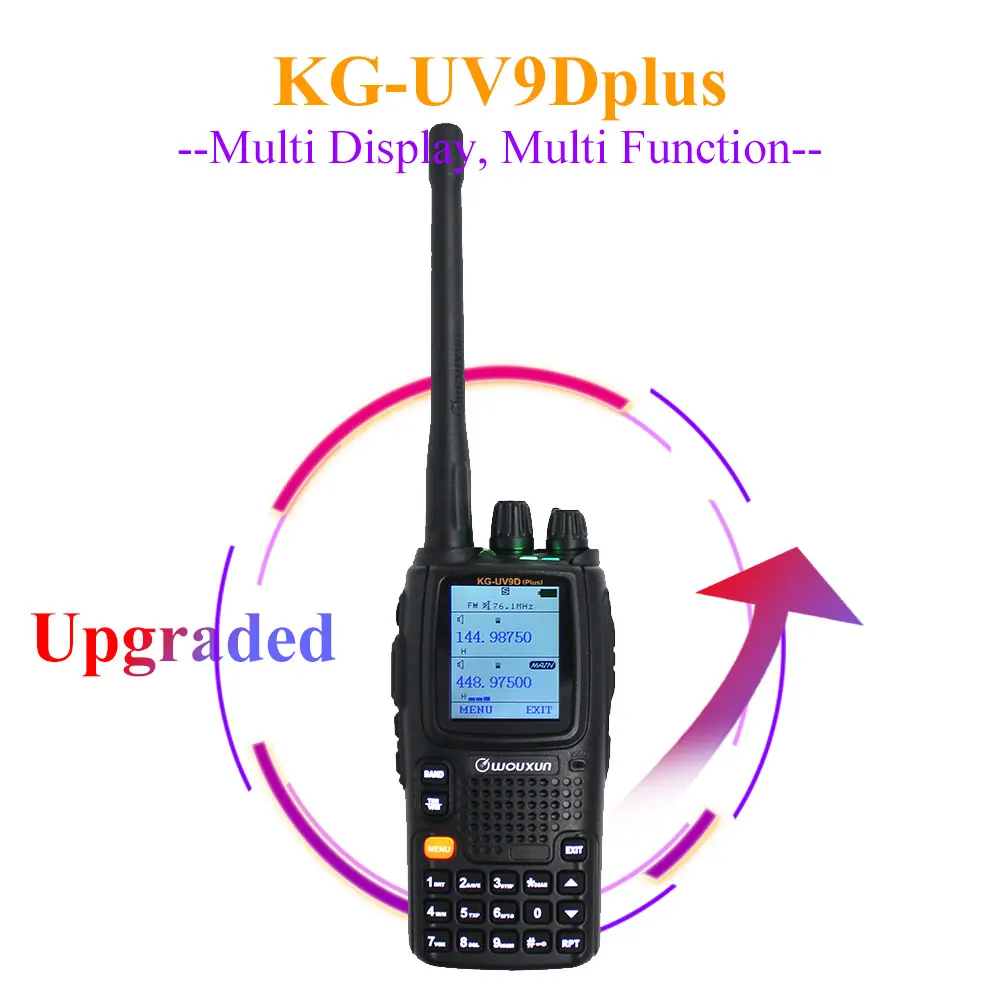

5. Large Colorful Screen
6. Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency (Frequency Mode, Self-definition Scanned Frequency Range), Channel Groups Scanning

7. Memory Channels 999
8. Output Power VHF H:5W,M:2W,L:1W UHF H:4W,M:2W,L:1W
9. QT/DQT Encoding/Decoding,QT/DQT Scan
10. Non-Standard CTCSS can be set arbitrarily
11. VOX
12. Multi Definition for Sidekeys
13. Amplitude-frequency PTT settings
14. Incoming Message Display Caller ID display
15. DTMF Encoding&Decoding
16. Channel groups scanning
17. All Calls,Group Calls And Selective Calls
18. SOS Function
19. Priority Scan Function
20. Remote Alarm
21. Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
22. Voice Guide:Chinese/English
23. Chinese/English Screen Display
24. English Channel Name Edit
25. Bright Flashlight illumination
26. Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz(signalling for activating repeater)
27. Reverse Frequency

28. Stopwatch

Integral Part

Frequency Range

Suitable for different countries or areas

1 TX:US:144-148MHZ(FM) 430-450MHZ(FM)

EU:144-146MHZ(FM) 430-440MHZ(FM)

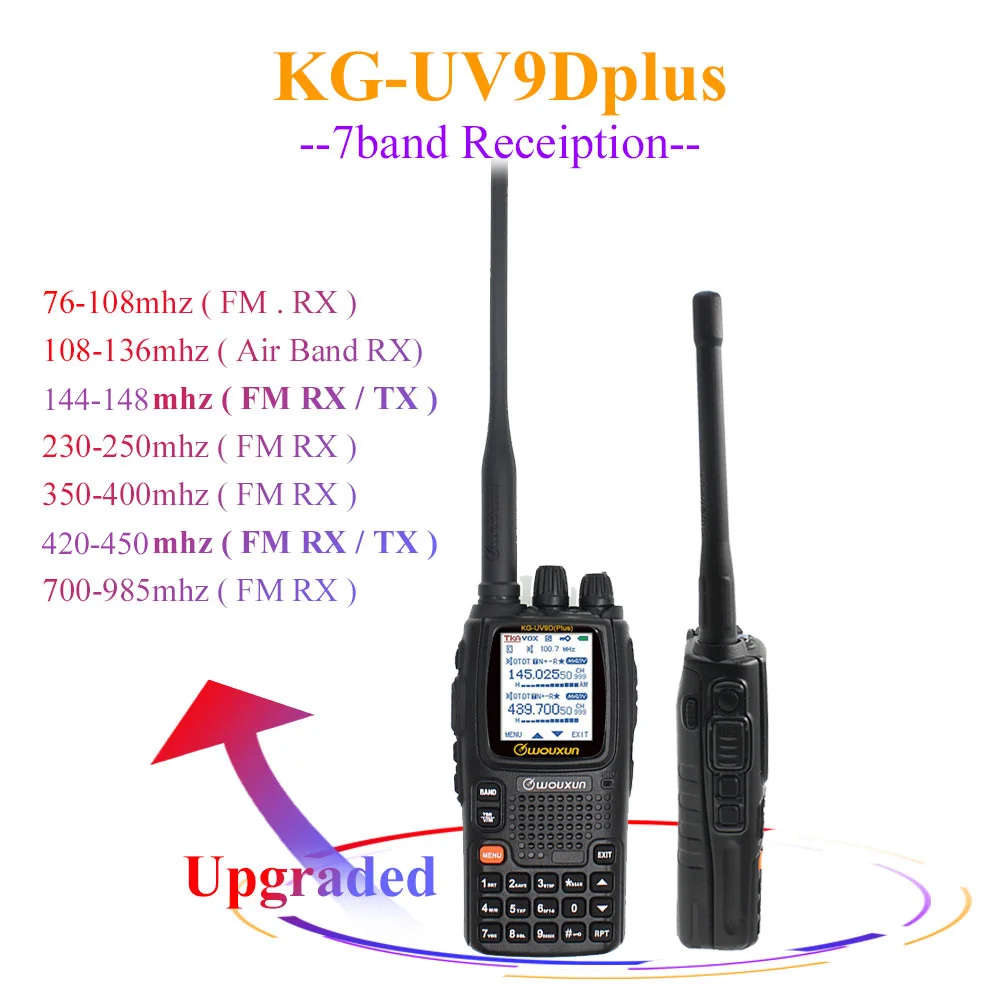

2 RX: 76-108MHZ(FM)
108-136MHZ(Air ground)
136-174MHZ(FM)
230-250MHZ(FM)
350-400MHZ(FM)
400-512MHZ(FM)
700-985MHZ(FM)

Step

2.5K/5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz

Channel Number

999

Work Mode

F2D/F3E

Operating Temperature

-20~+40

Voltage

7.4VDC

Antenna Impedance

50Ω

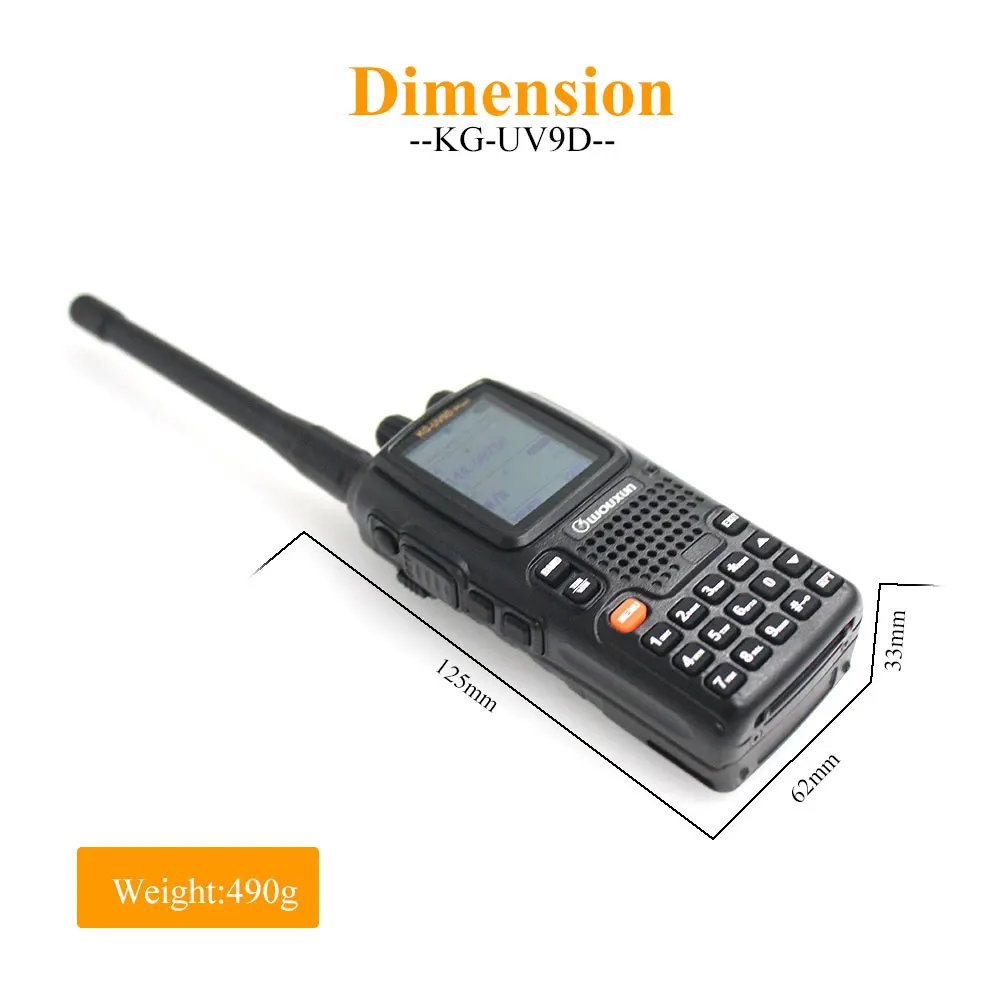

Weight

490 g

Size

124.5X61.5X33.9 (mm)

Receiver

Wide

Narrow

Adjacent Channel Selectivity

≤70dB

≤60dB

Inter Modulation

≤65dB

≤60dB

Spurious Response

≤70dB

≤70dB

Audio Response

+1~-3dB(0.3~3KHz)

+1~-3dB(0.3~3KHz)

Signal to Noise Ratio

≥45dB

≥40dB

Audio Distortion

≤5%

Audio Power

≤500mW

Sensitivity

108-136MHz(AM) -106.0dbm SN 13dB
136-180MHz -119.0dbm SINAD 13dB
230-250MHz -116.0dbm SINAD 13dB
350-400MHz -119.0dbm SINAD 13dB
400-512MHz -119.0dbm SINAD 13dB
700-986MHz -96.0dbm SINAD 12dB

Transmitter

Wide

Narrow

Type of Modulation

16K F3E

11K F3E

Adjacent Channel Power

≥70dB

≥60dB

Spurious Response

≥60dB

≥60dB

Audio Response

+1~-3dB(0.3~3KHz)

+1~-3dB(0.3~3KHz)

Max Frequency Deviation

±5KHz

±2.5KHz

Frequency Stability

±2.5ppm

Audio Distortion

≤5%

Output Power

VHF H:5W, M:2W, L:1W
UHF H:4W, M:2W, L:1W

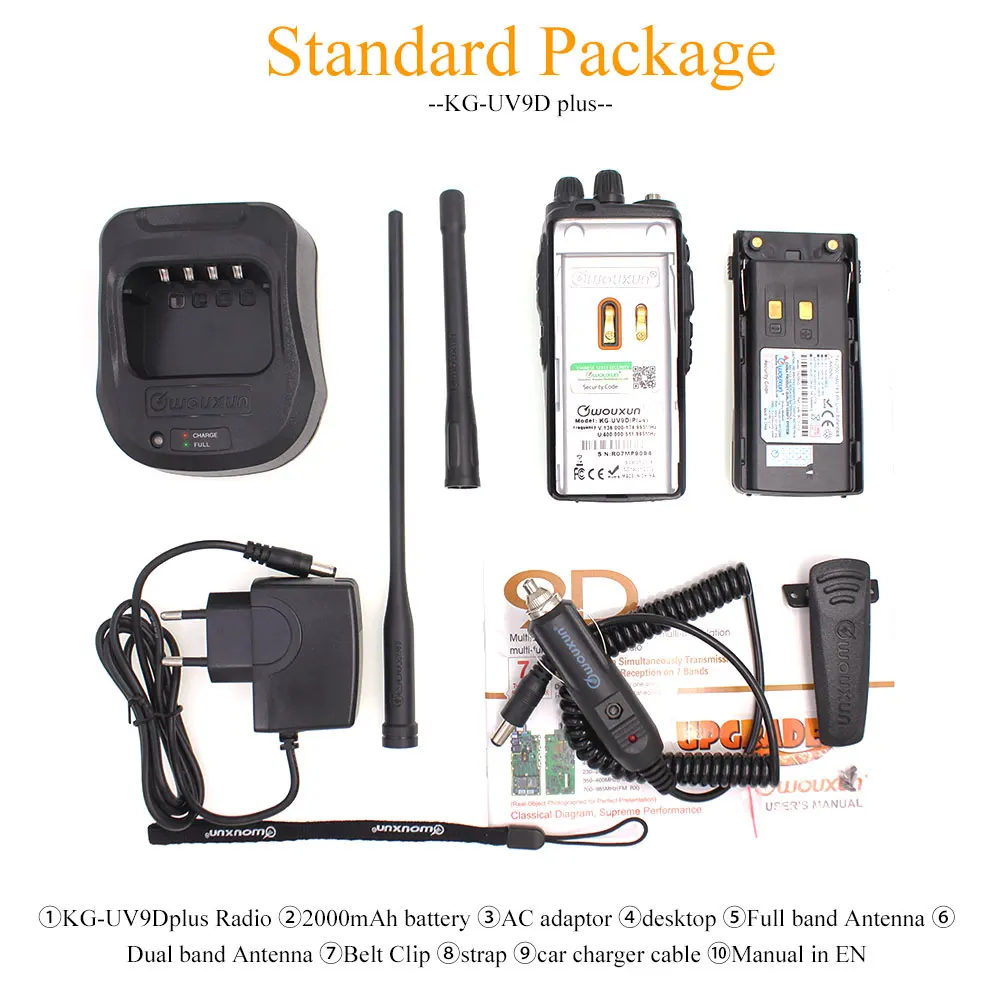

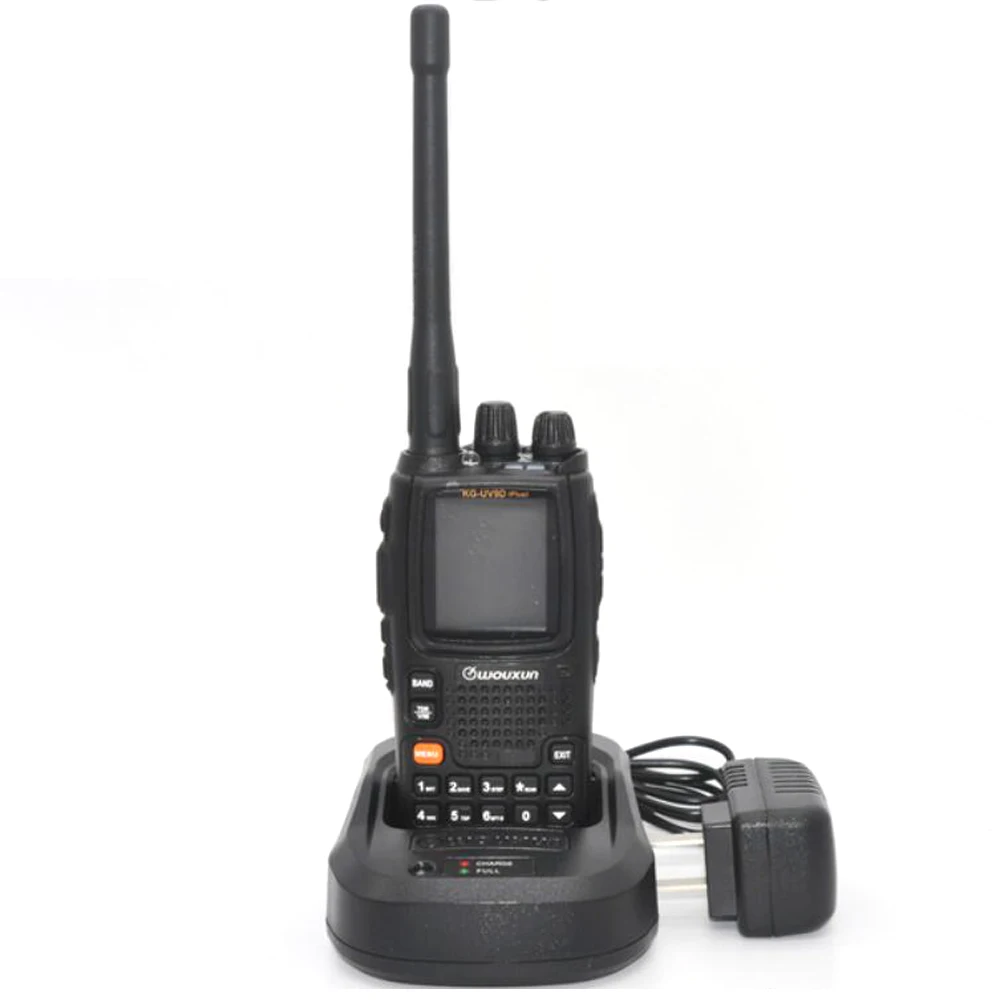

unit contain:

KG-UV9D two way radio*1

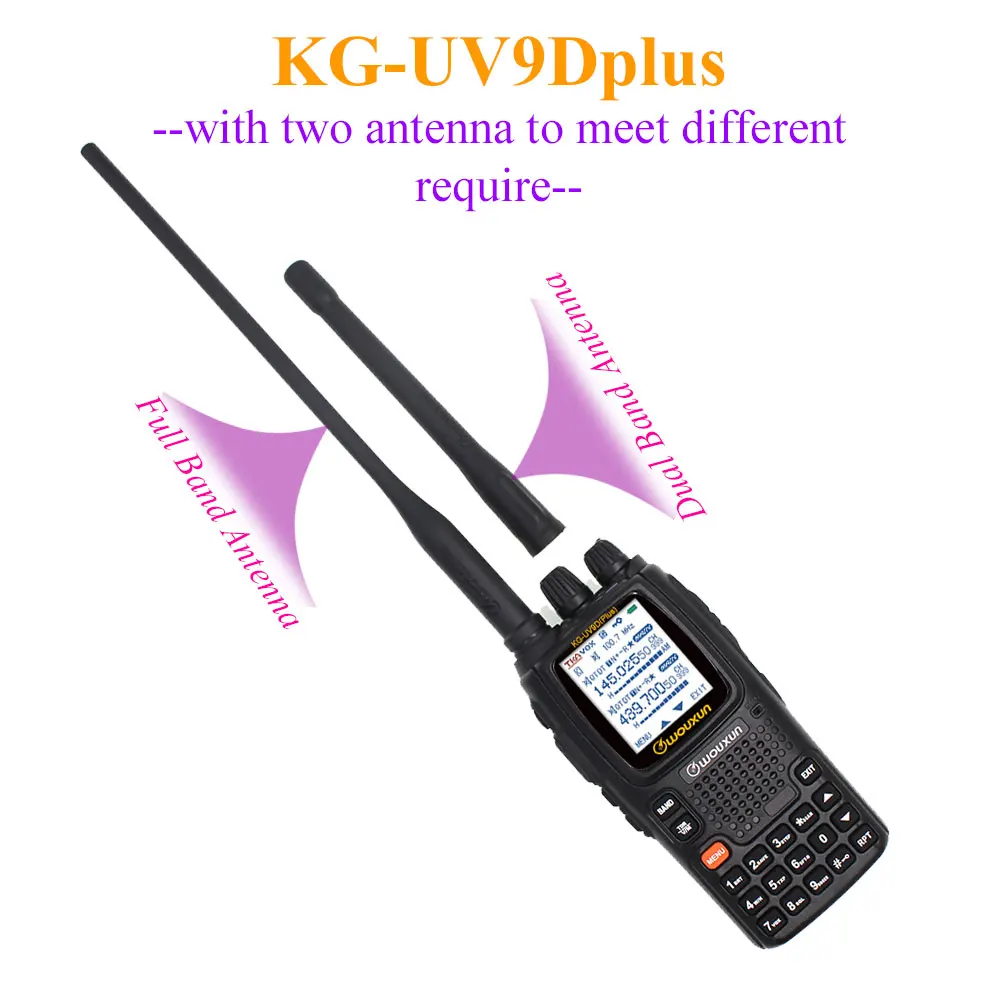

antenna*1

battery*1

charger*1

desktop*1

belt clip*1

hold strap*1
