Module features and parameters:
Name: 1A lithium battery charging and protection integrated board two in one MICRO interface
interface:MICRO
Voltage: 5V
Charge cut-off voltage: 4.2V ±1%
Maximum charging current: 1000mA
Battery over discharge protection voltage: 2.5V
Battery overcurrent protection current: 3A
Board size: 2.8*1.7CM
Module features and parameters:

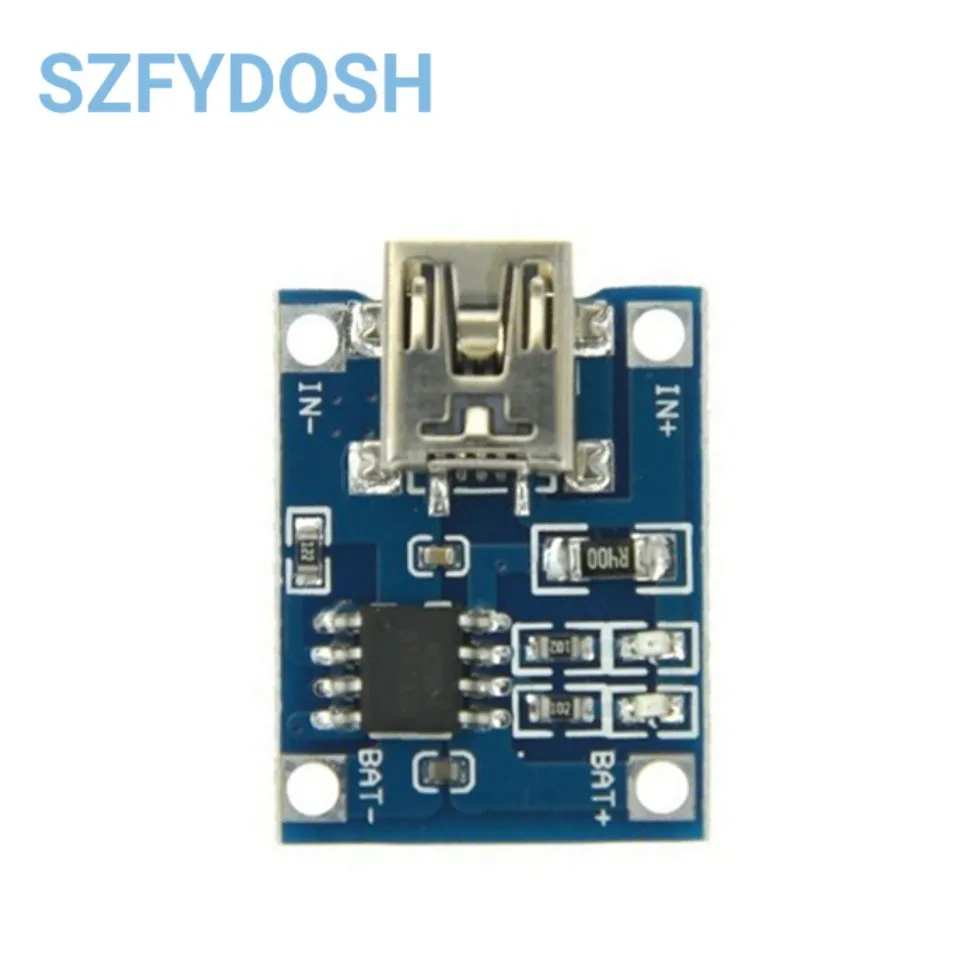

Name: 1A lithium battery charging source module Mini interface(Red parameters are consistent)
interface:MINI
Charging method: linear charging
ChargingCurrent: 1A
Accuracy: 1.5%
Input voltage: 4.5V-5.5V
Full charge voltage: 4.2V
Can not reverse
Board size: 2.2*1.7CM
Module features and parameters:

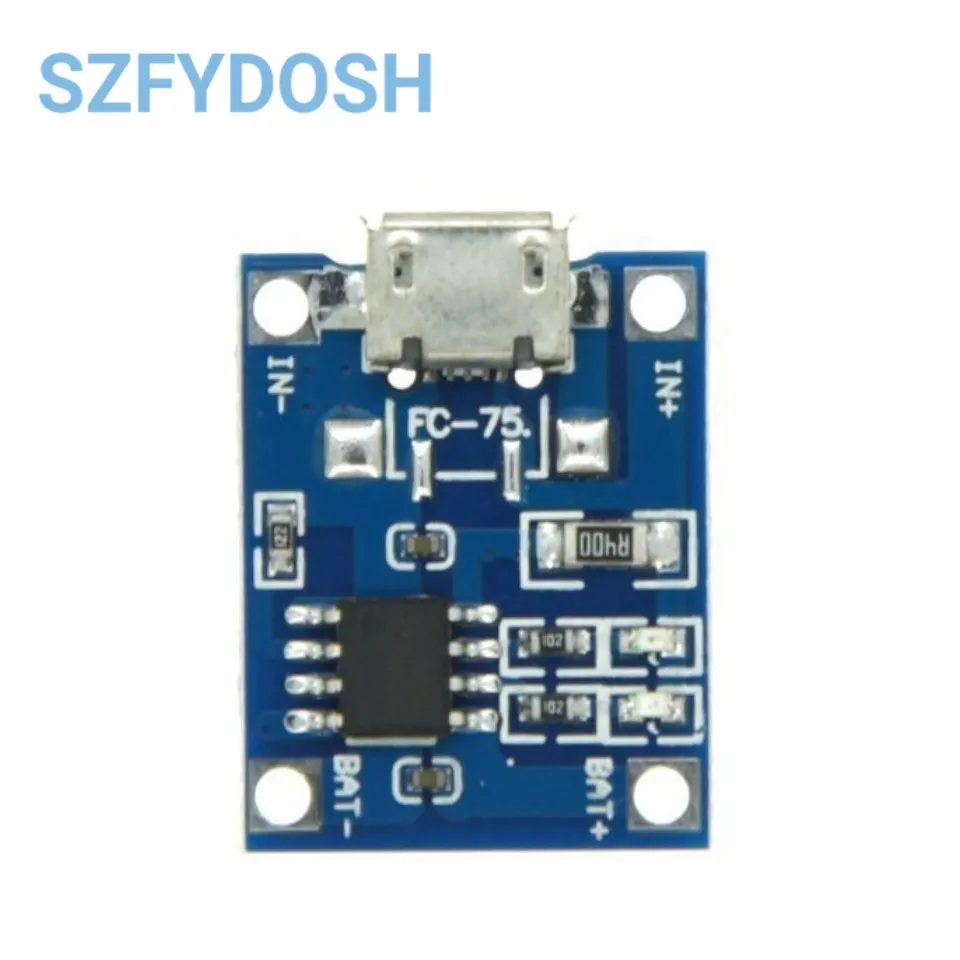

Name: 1A lithium battery charging source module MICRO interface
interface:MICRO
Charging method: linear charging
ChargingCurrent: 1A
Accuracy: 1.5%
Input voltage: 4.5V-5.5V
Full charge voltage: 4.2V
Can not reverse
Board size: 2.2*1.7CM
Module features and parameters:

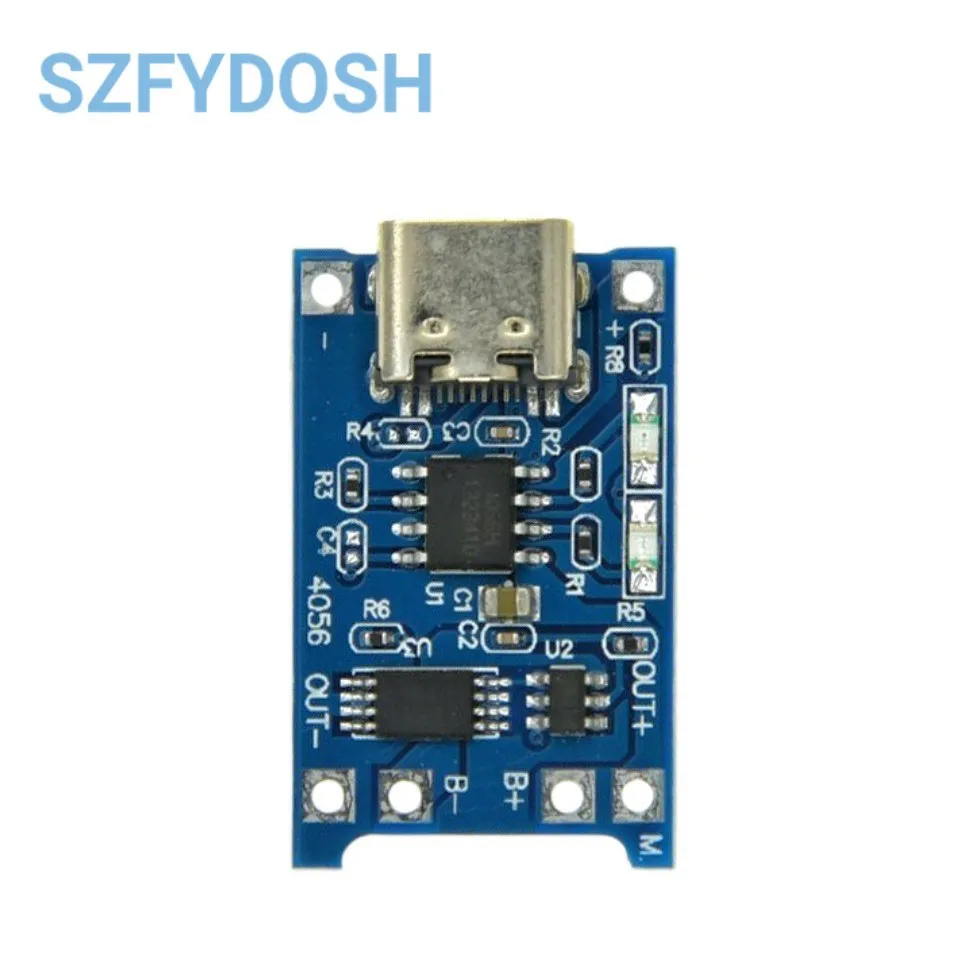

Name: 1A lithium battery charging and protection integrated board two in oneTYPE-Cinterface
interface:TYPE-C
Voltage: 5V
Charge cut-off voltage: 4.2V ±1%
Maximum charging current: 1000mA
Battery over discharge protection voltage: 2.5V
Battery overcurrent protection current: 3A
Board size: 2.8*1.7CM
Opiniones de clientes
20 opinionesGran producto funciona perfectamente.
Comprados diez, pero ninguno de ellos trabajó
Todo perfectamente con envío a colombia
Pedí los equivocados, esta versión es la antigua. la nueva tiene mas protección para la batería.
trabajando bien, todo llegó
El voltaje de carga máximo retiene un poco menos de 4,2 voltios. no se apaga al finalizar la carga.
Bueno
