Accesorios para agua gaseosa, cilindro, adaptador de estación de recarga de CO2 con adaptador de encendido/apagado de manguera, conector W21.8-14 o G3/4 o CGA320

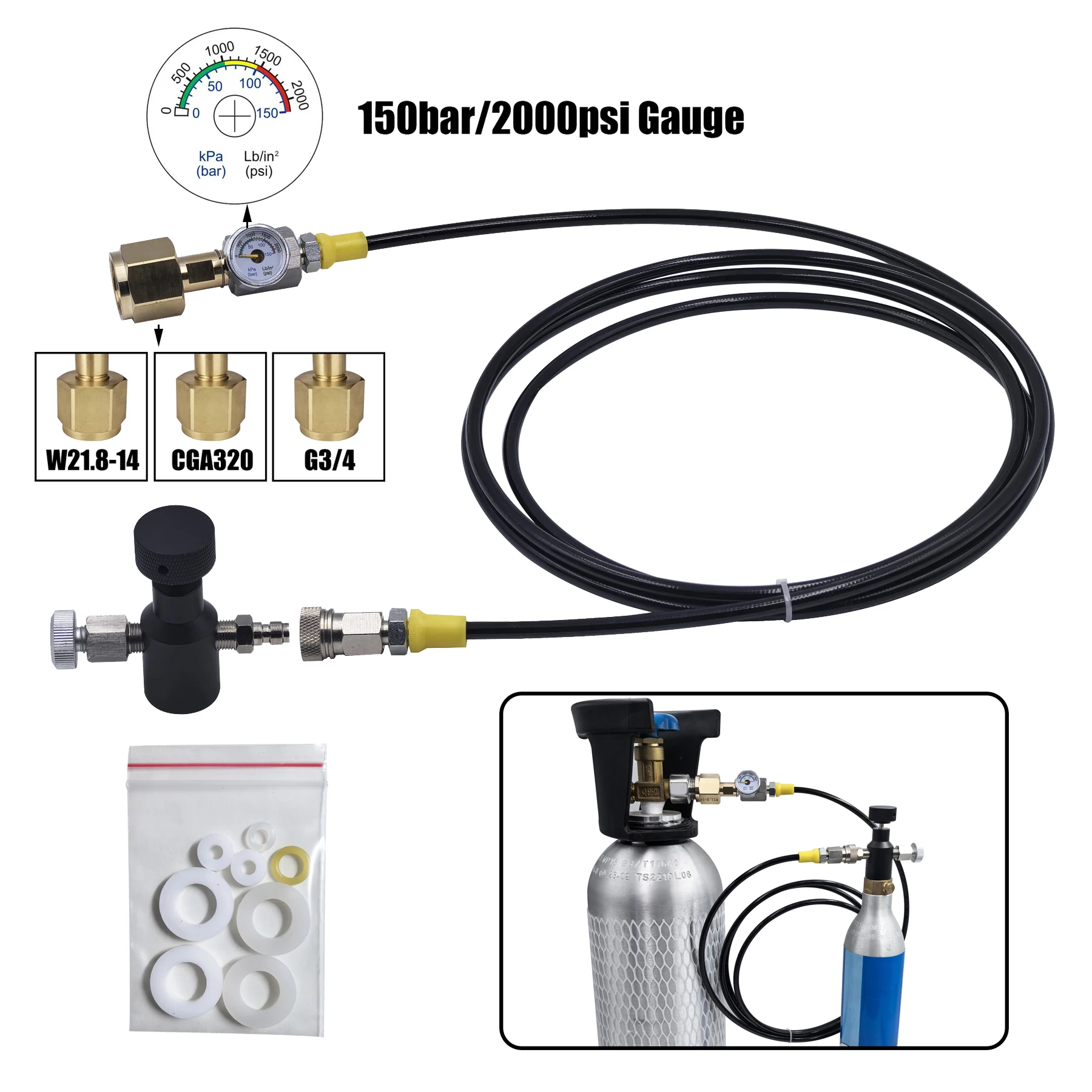

Soda Water Accessories Cylinder CO2 Refill Station Adaptor With Hose On/Off Adapter W21.8-14 or G3/4 or CGA320 Connector

Product Features:

1. Safety and health are the most important, and all materials meet food safety requirements, allowing you to use them with confidence.

2. This fill station fills CO2 from large tanks into small soda water CO2 cylinders, which with TR21-4 thread valve.

3. CO2 tank valve connector thread W21.8-14 (Din477) or G3/4 or CGA320 can be used.

4. Made by stainless steel, copply alloy and aluminum alloy. Hose length is 40inches/100cm or 100inches/250cm.

5. The o-ring made of polyurethane is used inside the quick disconnect, silicone gasket used on black adapter, and the PTFE gasket are used on screw nut. These are all the best materials.

6. Comes with a complete set of spare o-rings and gaskets. Can effectively extend the service life of the product.

7. All pictures are real photos without any beautification. We hope to present you with the most authentic product.


Instructions for use:
1. Screw the adapter nut onto the larger CO2 cylinder.
2. The empty CO2 cylinder is screwed into the black fill adapter.
3. Connect the quick disconnect, and close the bleed vent.
4. Open the valve of the larger tanks.
5. Wait for the cylinder to be fully filled, about 30 seconds.
6. Close the valve of the larger tanks.
7. Open the bleed vent of the filling adapter to remove residual gas.
8. Remove all devices, inflation completed.


How to choose the nut thread:

W21.8-14(Din 477)/JIS M22-14
Diameter=21.8mm
Generally applicable to UK, Germany, France, Poland, Japan, Korea, Norway, Switzerland, Russia, Ukraine, South Africa, Sweden, Chile, Czech Republic, Singapore, etc.

CGA320
Diameter=20.8mm
Generally applicable to USA, Canada, Brasil, Colombia, Philippines, etc.

G3/4
Diameter=26.4mm
Generally applicable to Russia, Lithuania, Belarus, Czech Republic, Slovakia, Kazakhstan, etc.


Tips: This item can't fit Australia or New Zealand soda bottles. This item can't works with liquid CO2. It can't use siphon tube Co2 Tanks!
