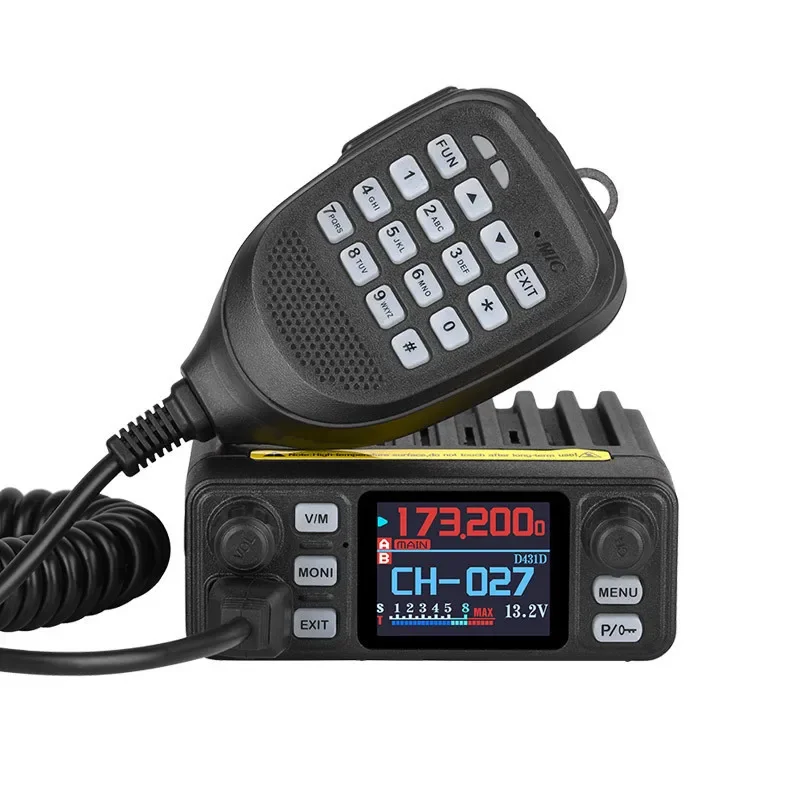

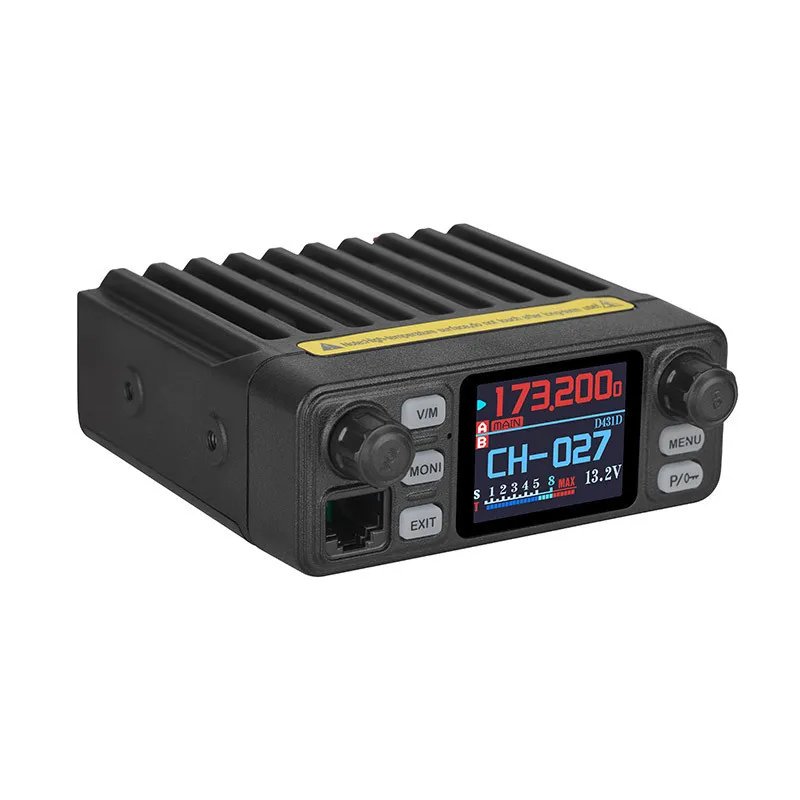

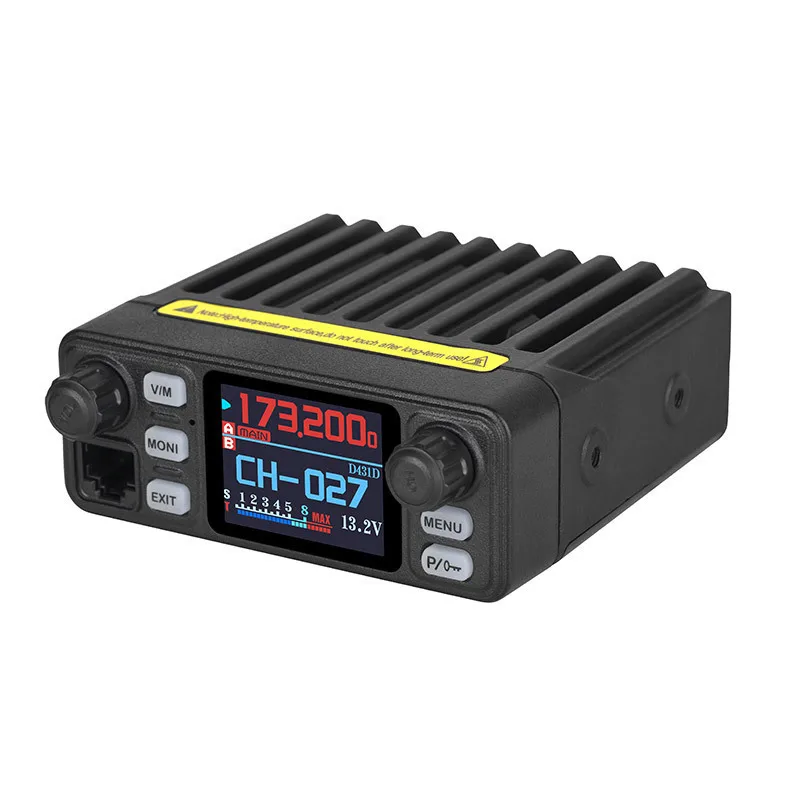

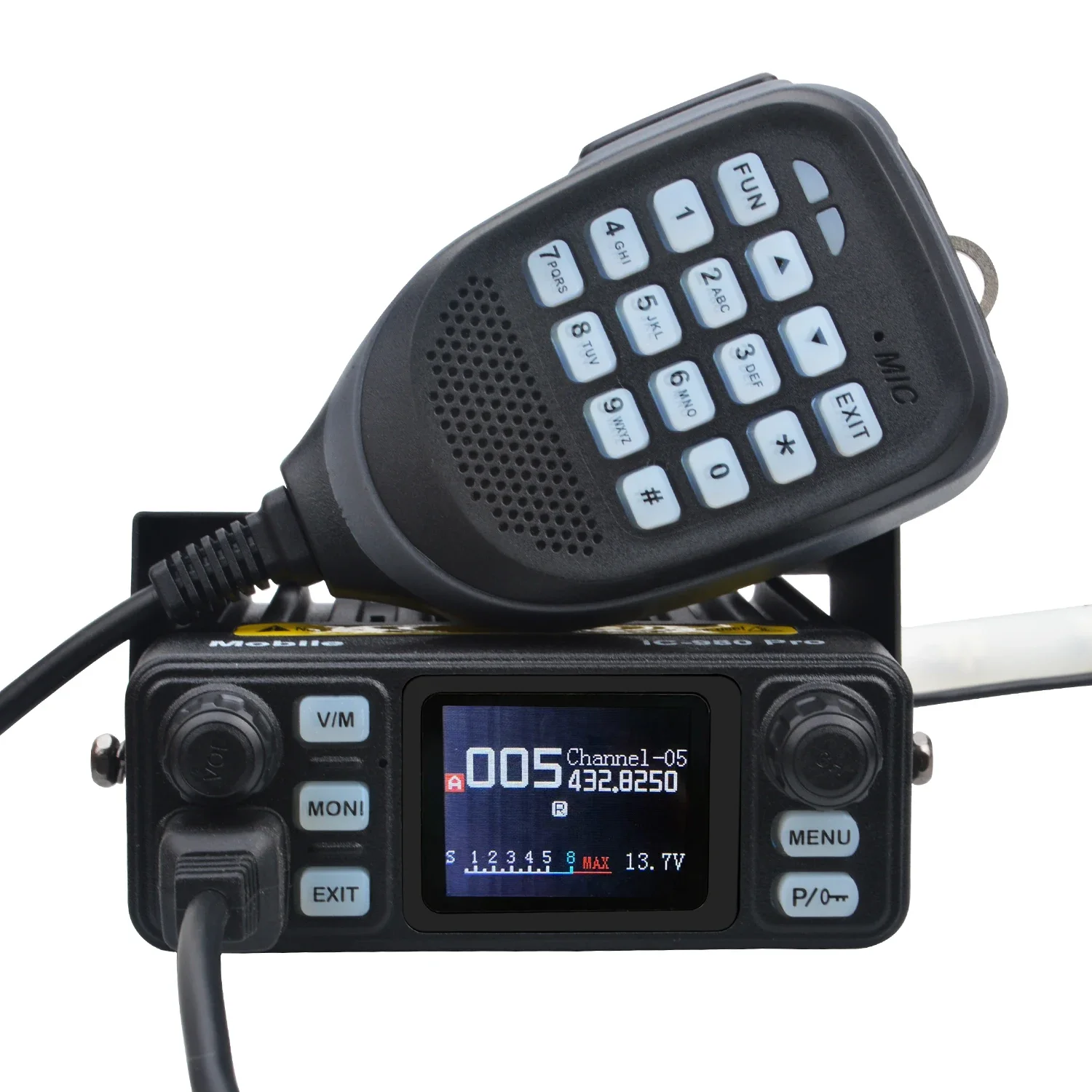

Anysecu Walkie Talkie IC-980Pro/FT-6000plus VHF UHF Dual Band Dual Watch 25W 200Ch Background Noise Reduction Mini FM Vox Scrambler Mobile Radio IC-980 Pro Transceiver with 13.8V Car Cigarette Lighter Input Power Cable
Troubleshoot:
1.Q: How to turn the FM Broadcast Radio Station ON?
A: Press "FUN" key on the microphone momentarily, then press Numeric key"7" subsequently to turn the Commercial FM Radio ON. repeater the procedure to turn FM radio off.
2. Q: does this transceiver have 1750Hz Tone for Repeater Access in E.U
A: Yes,we re-designed the PCB board, and added a 1750Hz Tone Module in it basd on the demands from E.U customers. and all production batch of radios starting from April 19 are configuated with 1750Hz Tone.
3. Q: How to save a memory channel?

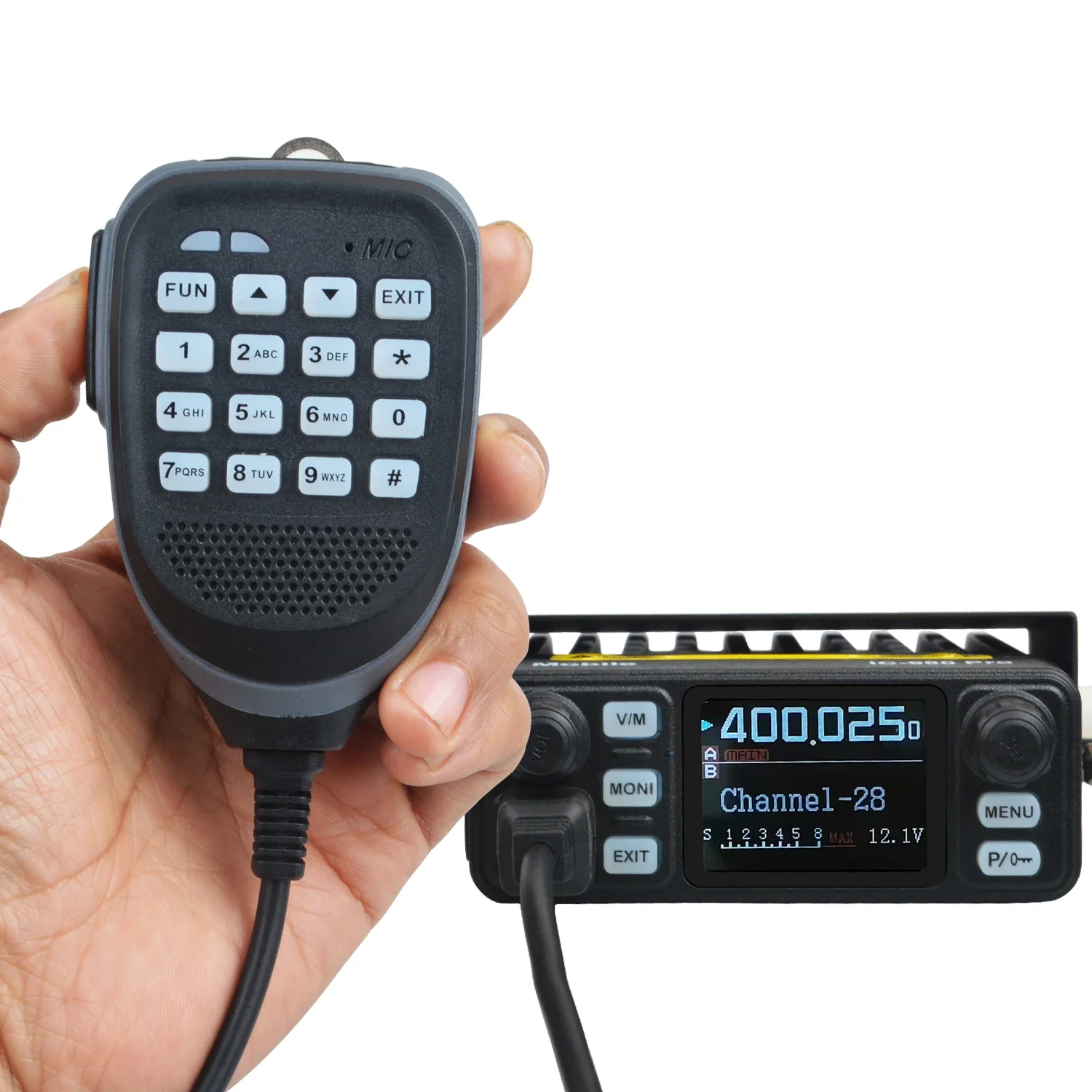

A: 1st. Press V/M button on the front panel to switch your radio in VFO Mode,
2nd: Input the desired frequency by the numeric key on the microphone
3rd: Press "FUN" key on the microphone momentarily, then press Numeric key"0" subsequently, and press "Up" or" Down" Key on the microphone to select your desired channel number . (Notes:the LCD will display Cover- 001, "Cover- 001 " means that the channel 1 is occupied, you can save your frequency to cover the previous memory channel., SAVE- 234 means that the channel you selected is empty, you can directly save your frequency to it. )
4th: Press "FUN" key on the microphone to save the frequency to channel,.When the data is stored, the word OK will be displayed.
5th: you can recall the memory channel in channel model.

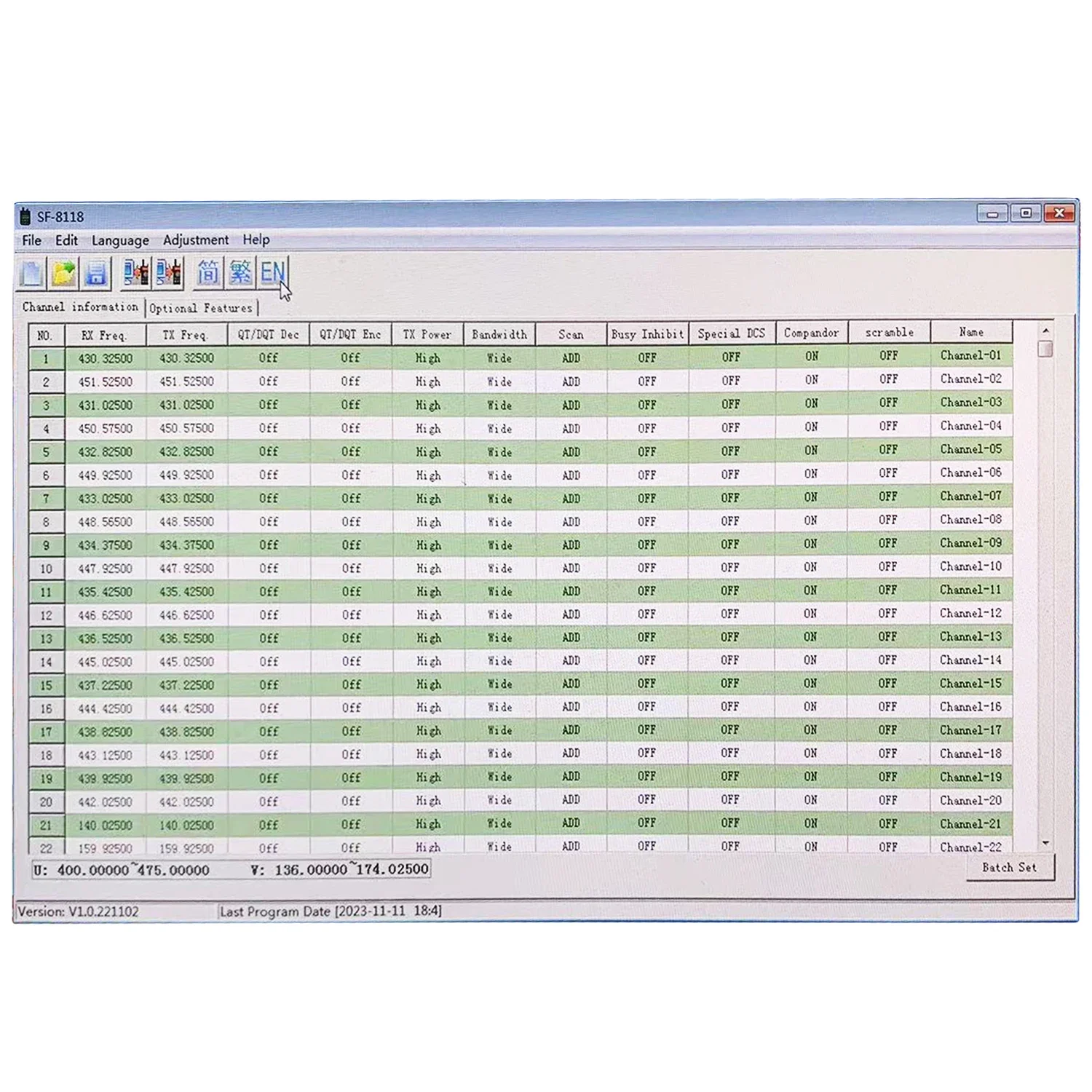

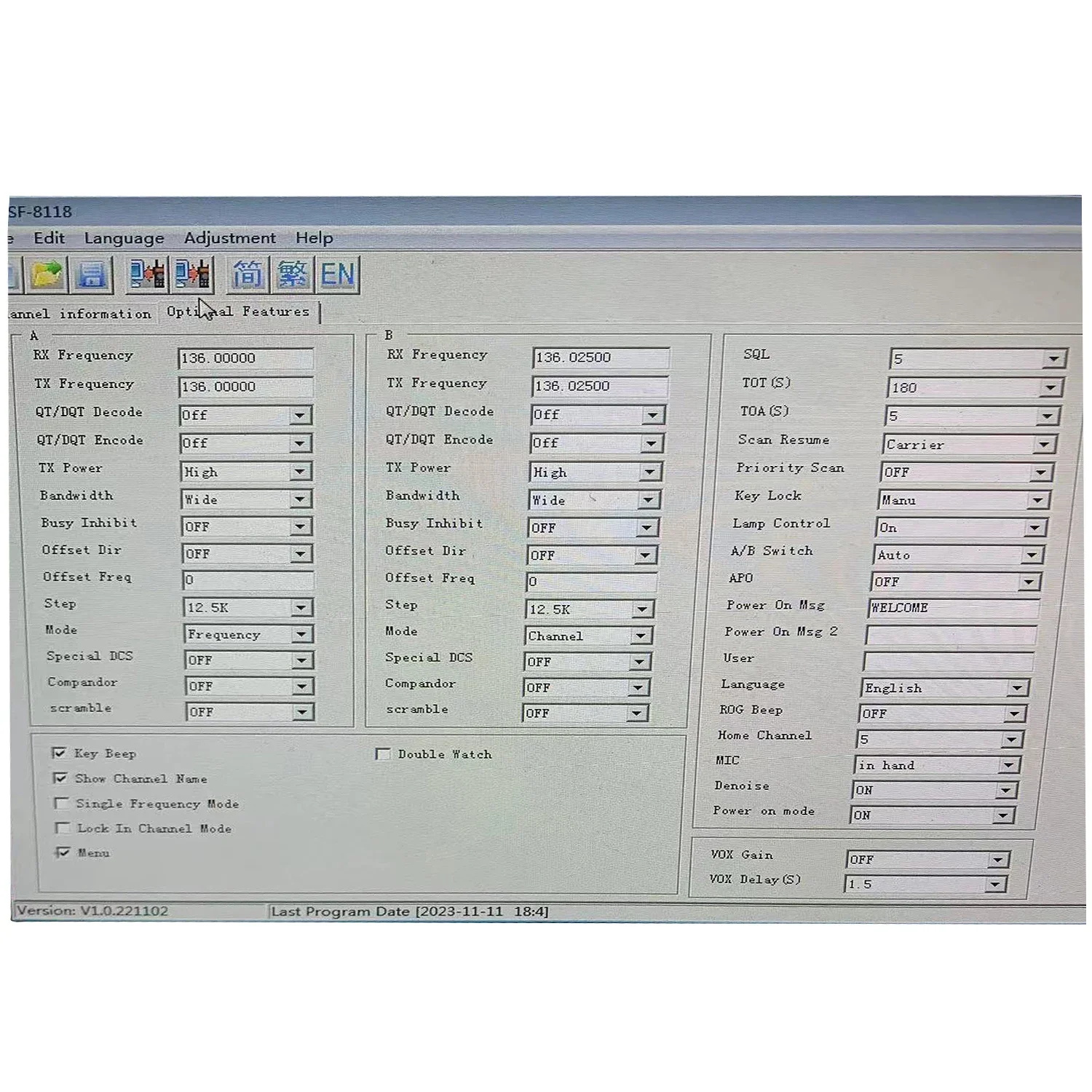

4. Q: where can i get the HIROYASU IC-980Pro programming software?
A: send us your email address by order message , then we will email it to you immediately when we read your message.

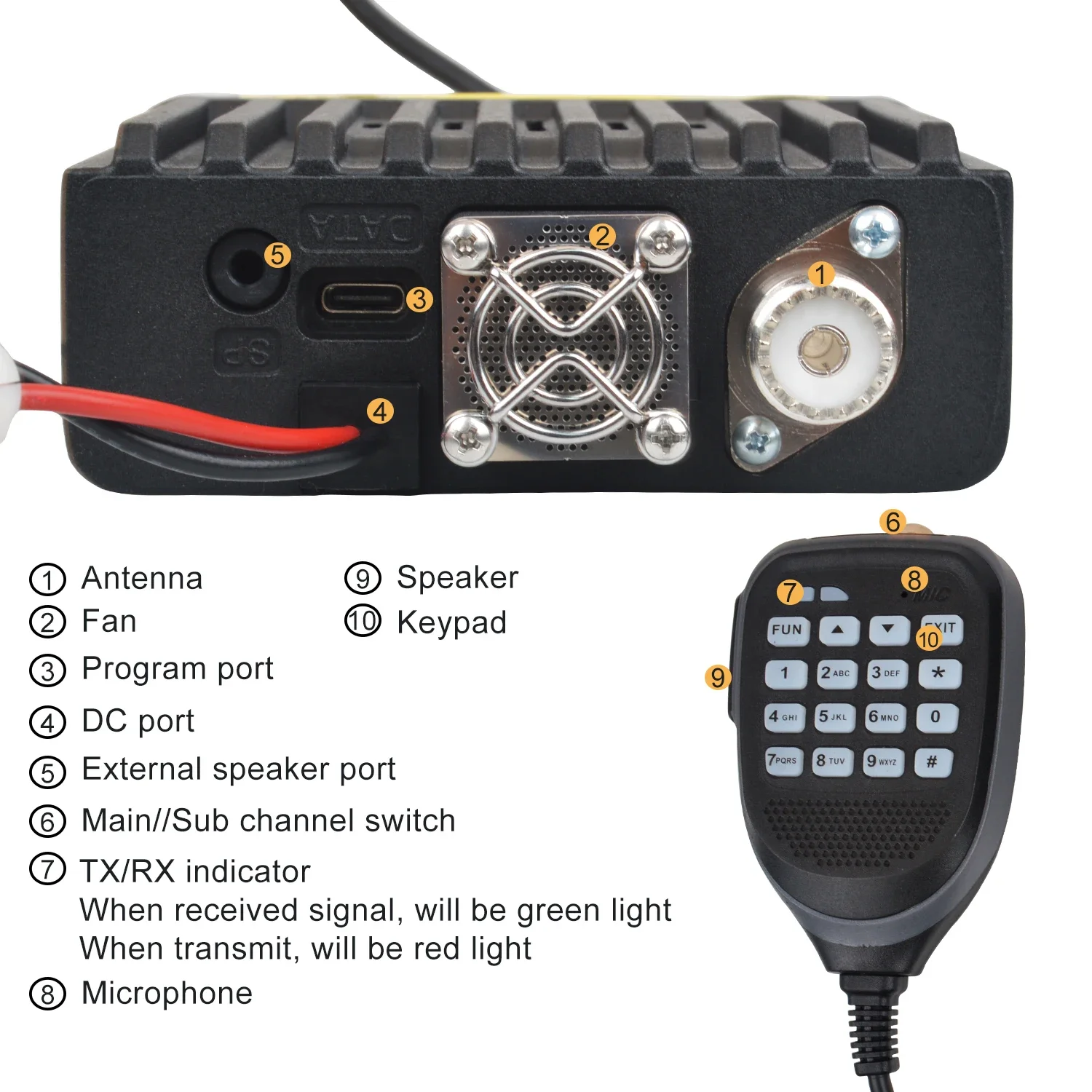

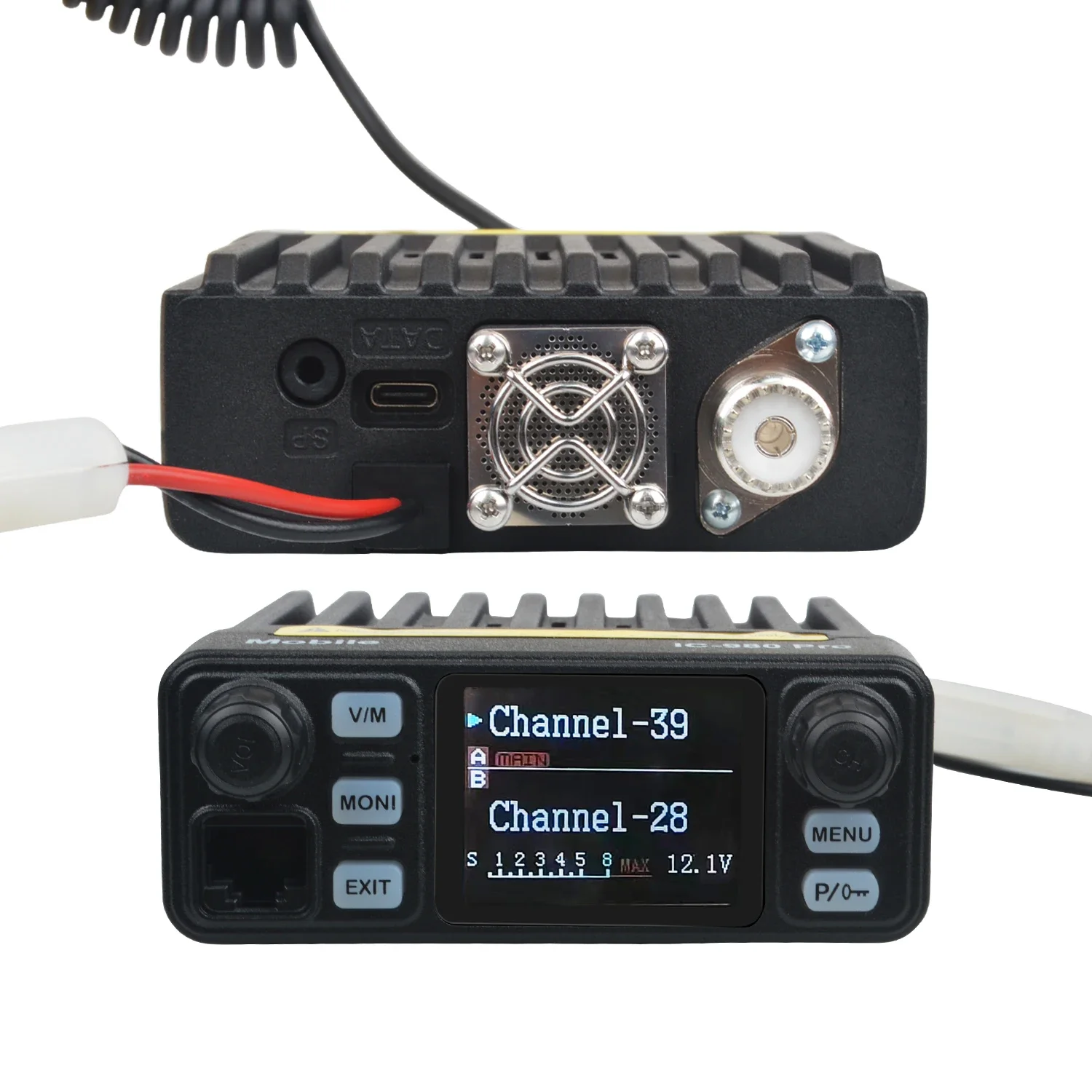

5. Q: How does the built-in cooling fans initiate?
A:The cooling fan works intelligently when radiator of the RF power amplifier reaches a certain high temperature even if the transceiver is receiving still.
Features:

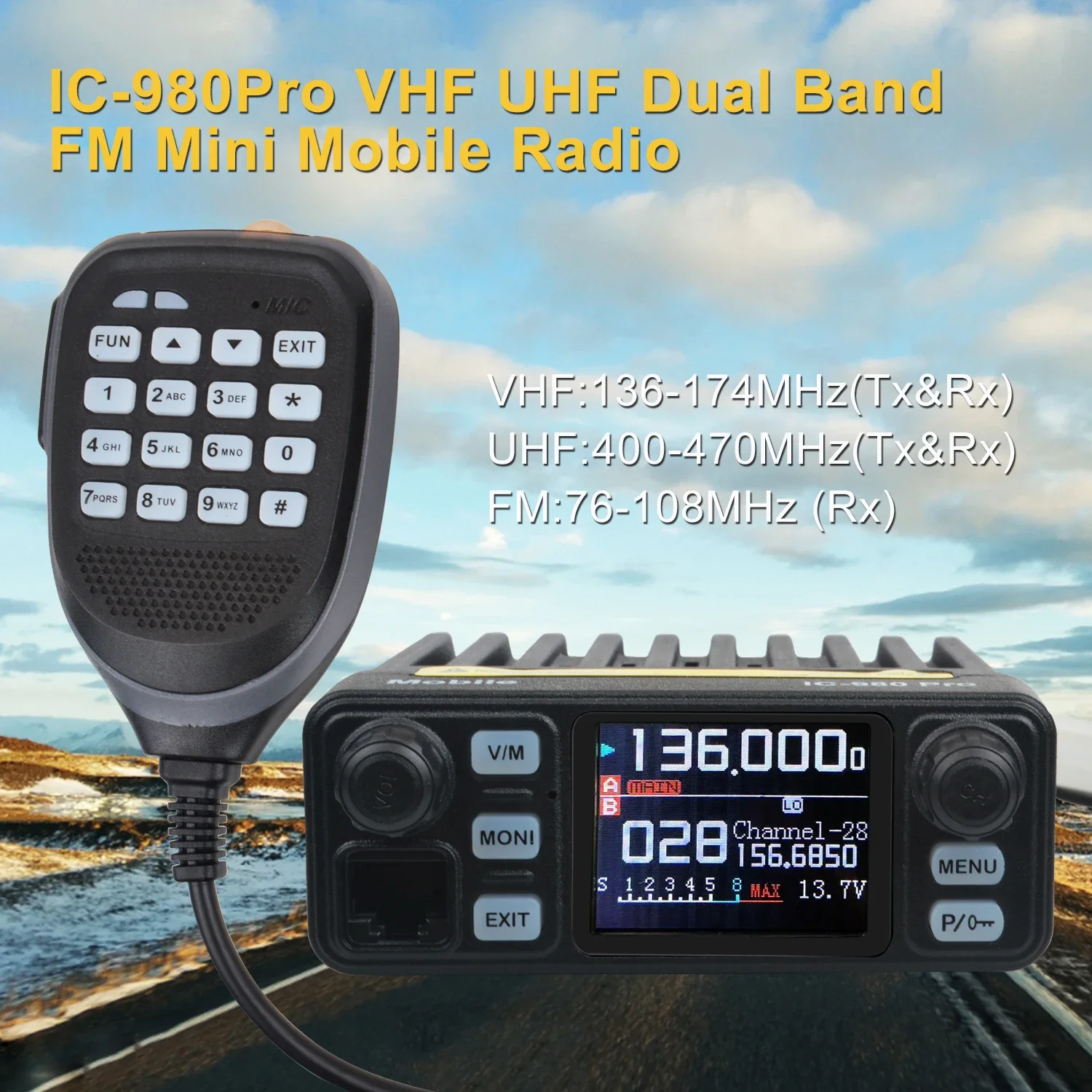

Frequency Range:

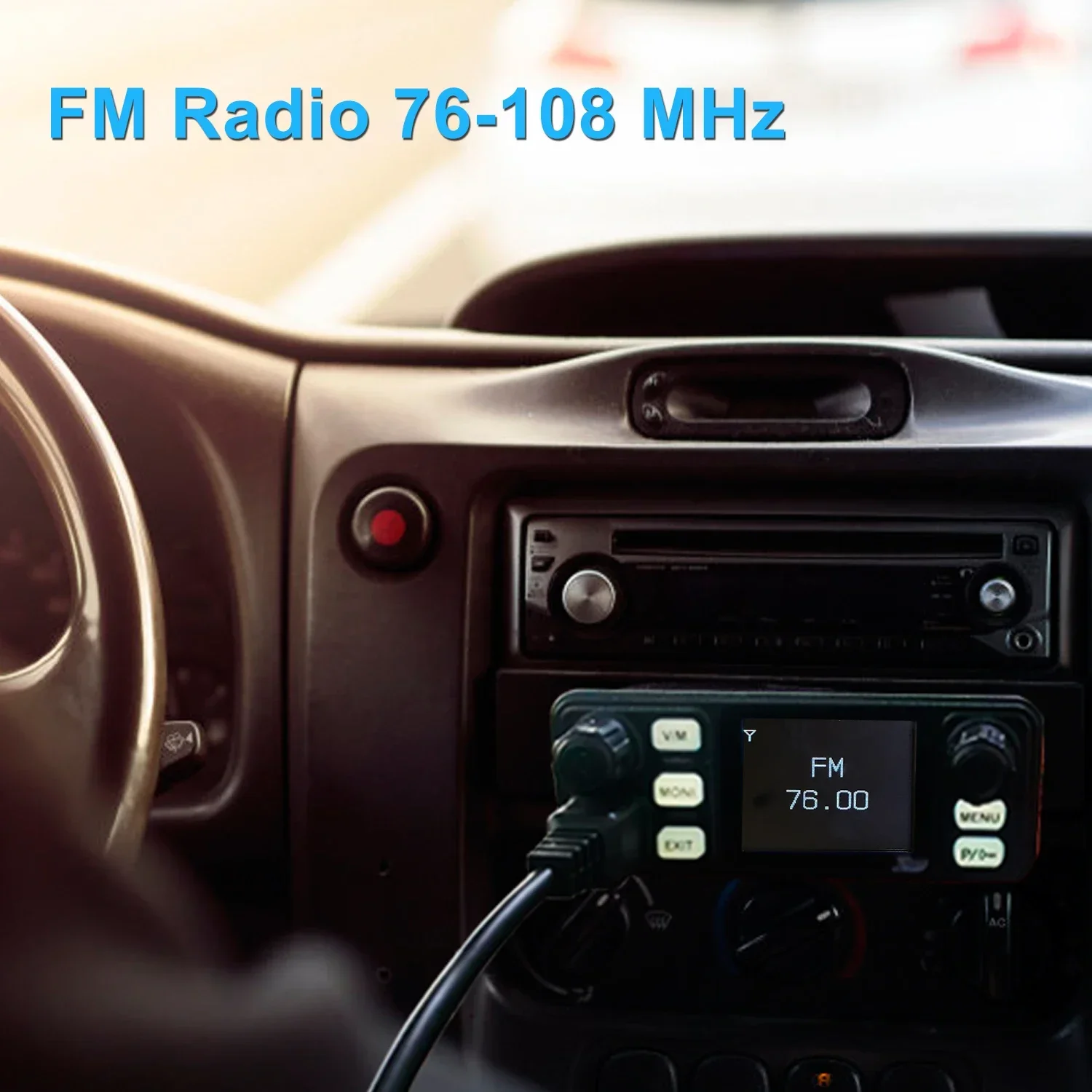

FM:76-108MHz (Rx)
VHF:136-174MHz (Tx&Rx)
UHF:400-470MHz (Tx&Rx)

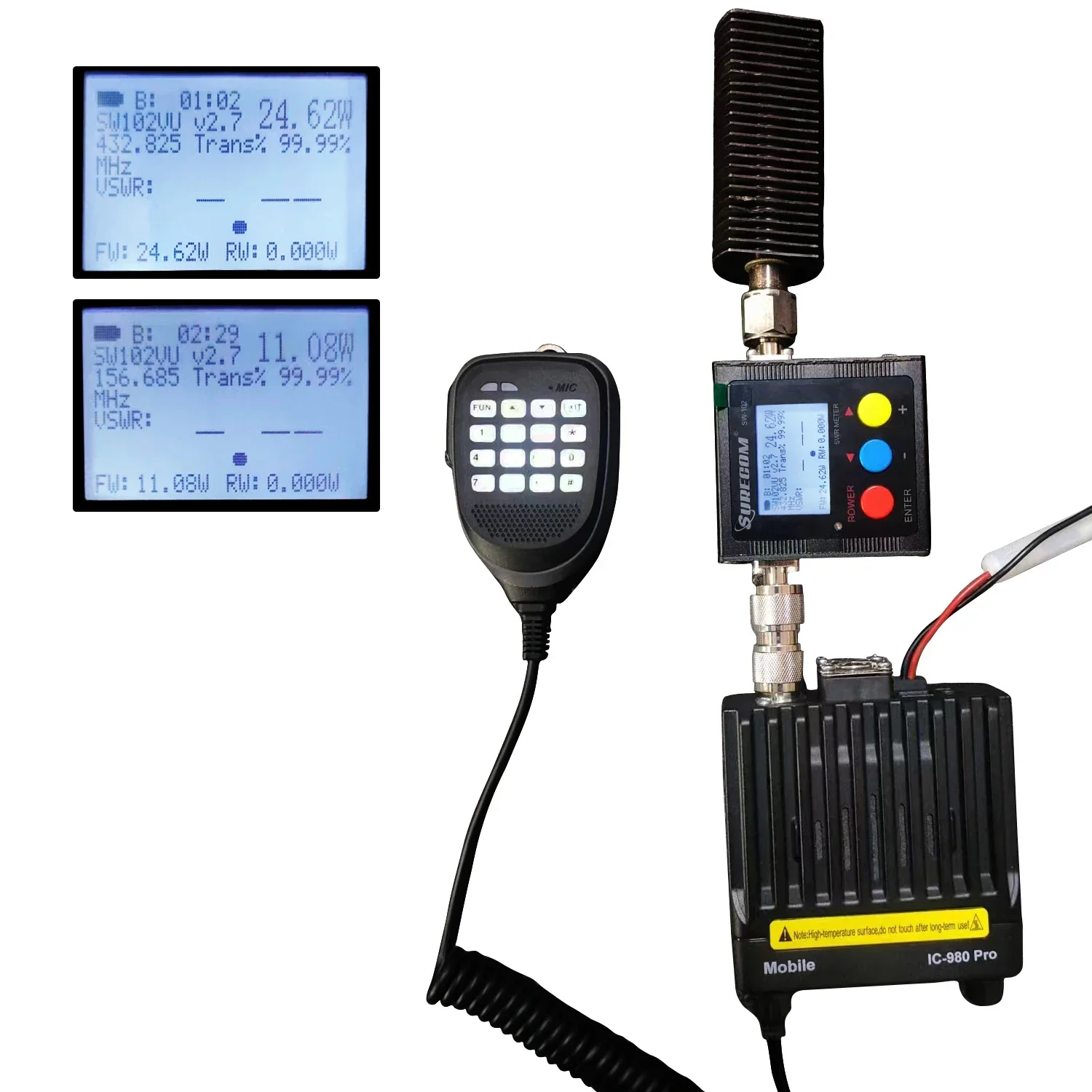

Output Power(H/L Power Switchable): High=25W, LOW=10W
Memory Channels: 200
Background noise Canceling
1750Hz Tone
Mini Size, light weight
Compandor
Scrambler
Busy Channel Lock
TOT
TOA
Repeater SFT-D
SFT Frequency
Sep:2.5/5/6.25/10/12.5/20/25/30K
CTCSS/DCS and special DCS
Display Mode: Frequency/Ch/MR
Roger Beep (end of transmission tone)
Double Watch
VOX( Voice-activated transmission)
Keypad lock
Priority Channel Scan
Cigarette Lighter Power cable
Dc 13.8V power Supply
Photos:
Specifications:
General
Frequency Range:
FM Radio:76-108MHz (Receive only)
VHF:136-174MHz (Tx& Rx)
UHF: 400-470MHz (Tx&Rx)
Memory Channel
200
Frequency Step
2.5/5/6.25/10/12.5/20/25/30/50KHz
Working Voltage
13.8V±15%
Squelch Mode
Carrier/CTCSS/DCS
Frequency Stability
±2.5ppm
Working Temperature
-20°cto 60°c
Dimensions
108mm*40mm*102mm
Weight
450g
Receiver
Wide Band
Narrow Band
Sensitivity(12dB SINAD)
≥0.2uV
≥0.14uV
AdjacentChannel Selectivity
≥70dB
≥60dB
Inter-modulation
≥65dB
≥60dB
Spurious Response
≥70dB
≥70dB
Signal to Noise Ratio
≥45dB
≥45dB
Audio Distortion
≤5%
Audio power
≥2W±10%
Transmission
Wide Band
Narrow Band
Output Power
H: 25/20W (VHF/UHF), L: 10W/8W(VHF/UHF)
Modulation
16KΦF3E
11KΦF3E
Adjacent Ch. power
≥70dB
≥60dB
Signal to Noise Ratio
≥40dB
≥40dB
Parasitics and harmonics
≥60dB
≥60dB
Audio Distortion
≤5%
Note: Specifications are subject to change without notice due to technical improvement.

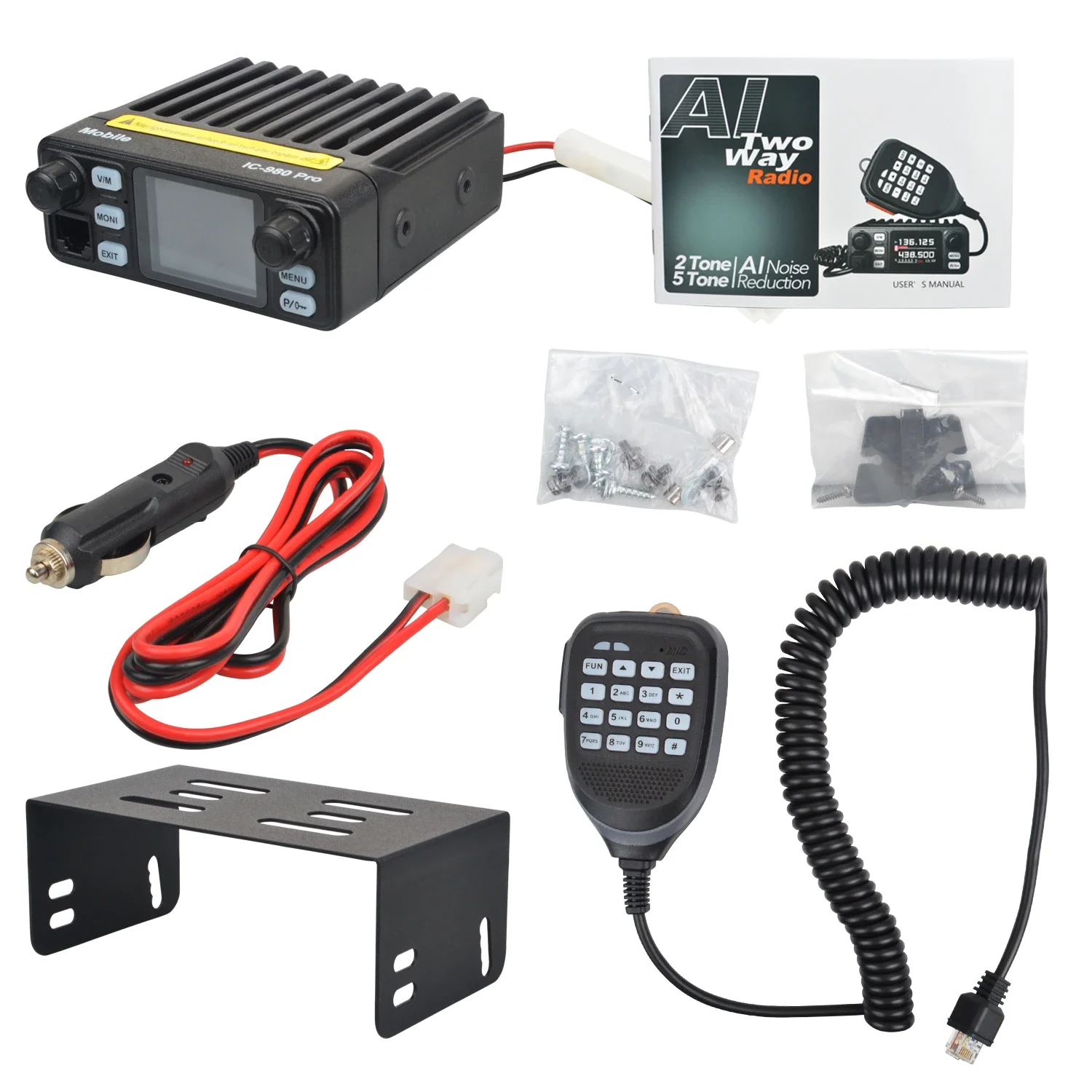

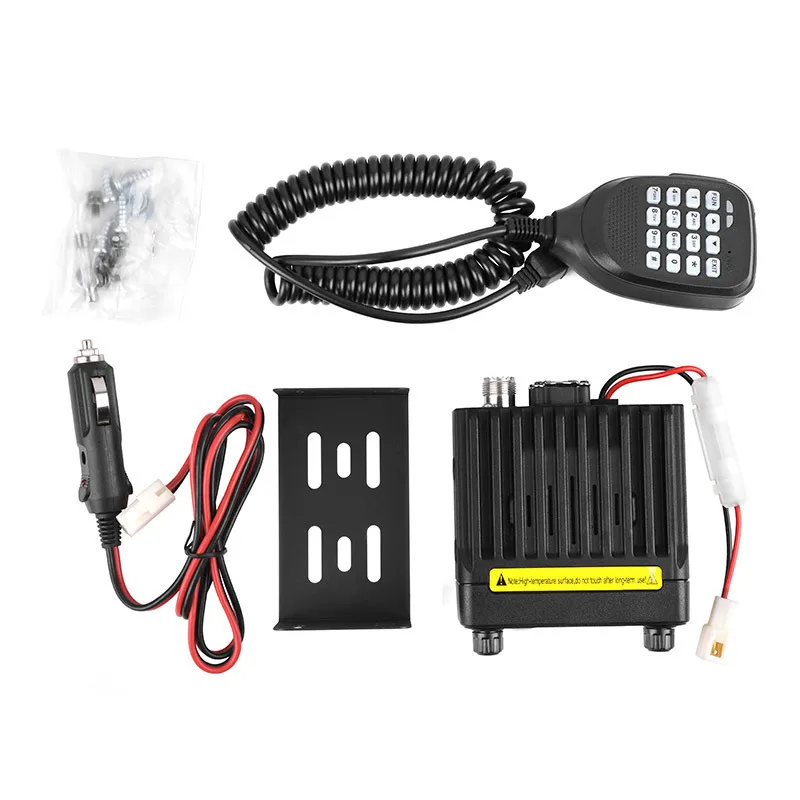

Package Contains:
1×FT-6000plus Mni Radio Body

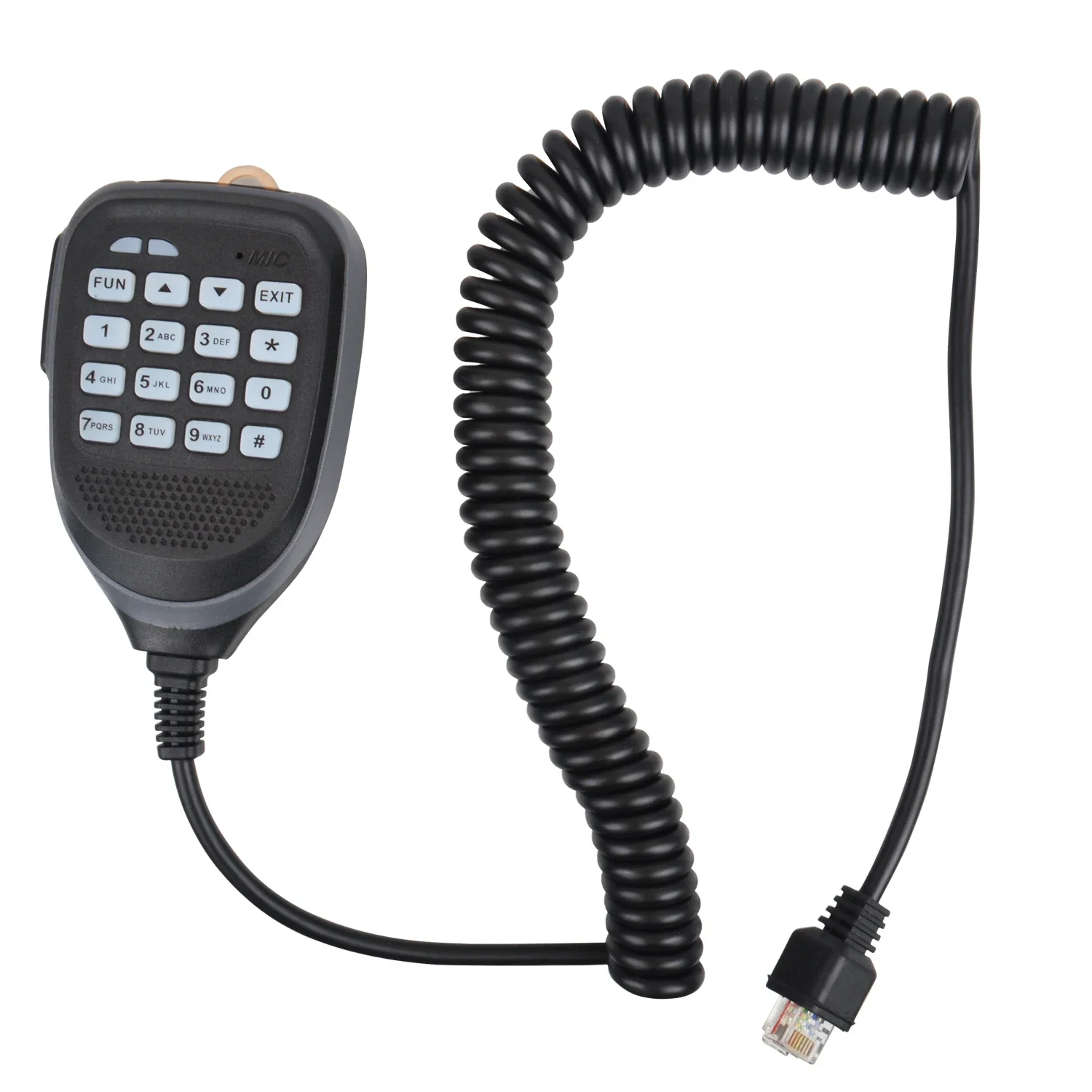

1× Speaker Mic
1× Bracket
1× Cigarette Light Power Cable
1× Screw Sets
1× Hook for Speaker Mic
1× ENG Manual
