Calentador de rodamiento TWIM15/230V TWIM15-3 Sonda de temperatura magnética tipo K TWIM15-BAG
4492,69 €
Selección del modelo
Color

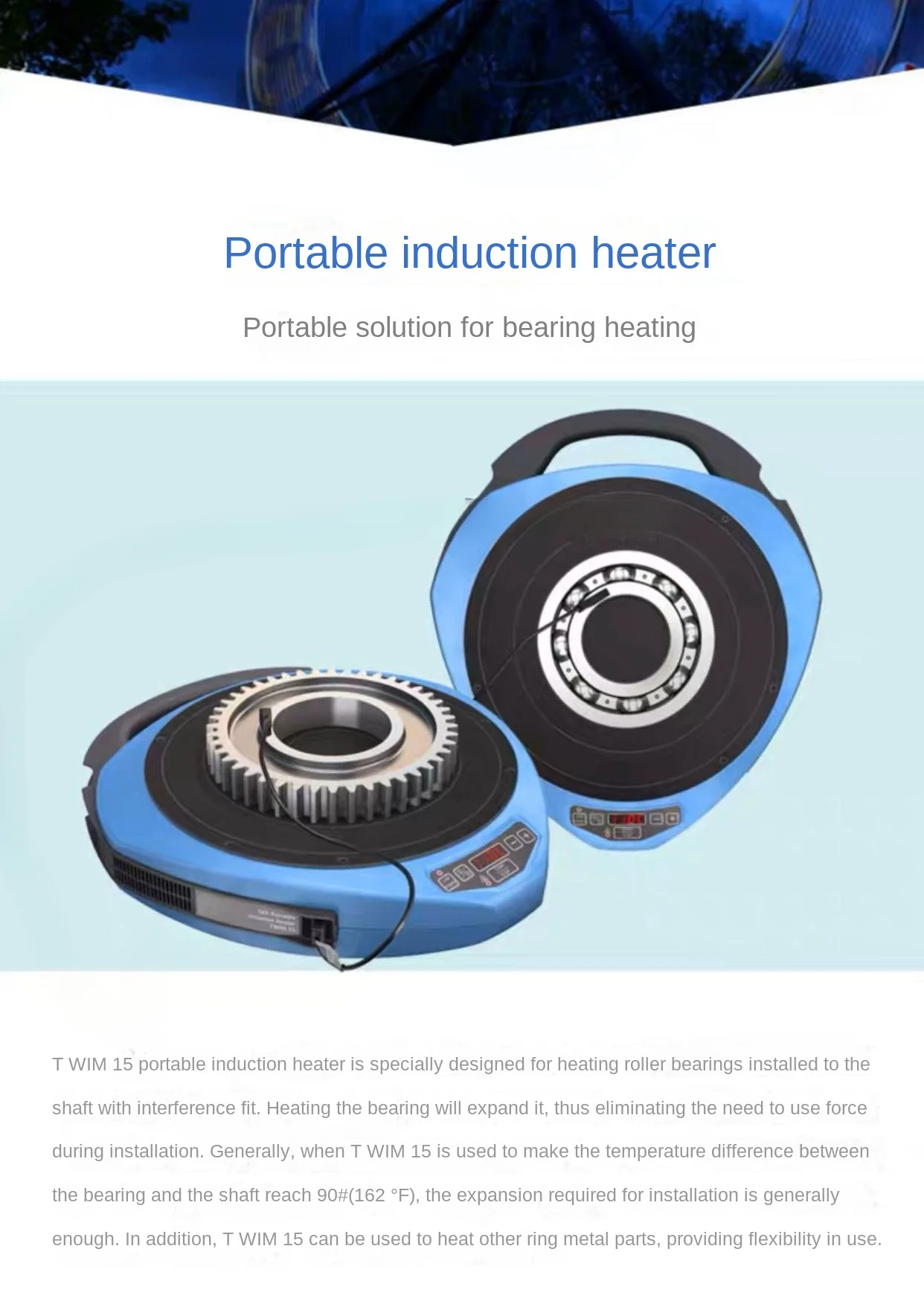

Portable induction heater
Portable solution for bearing heating

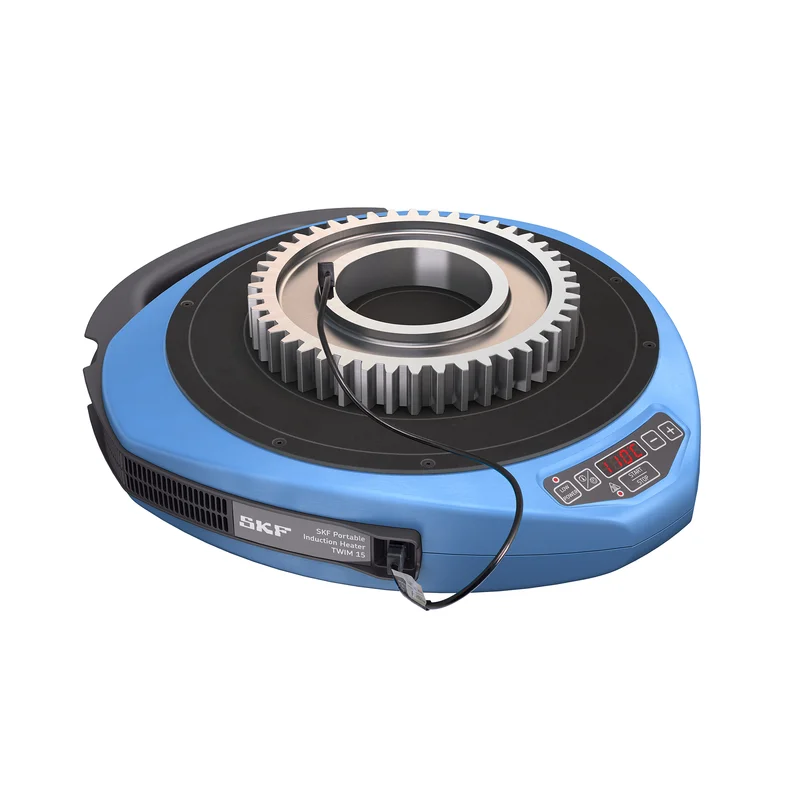

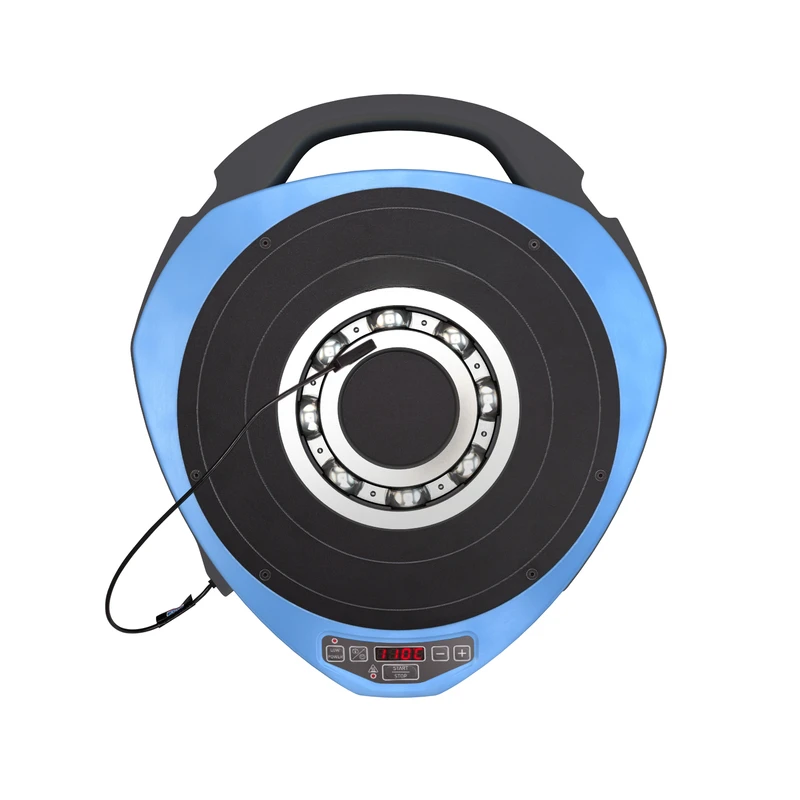

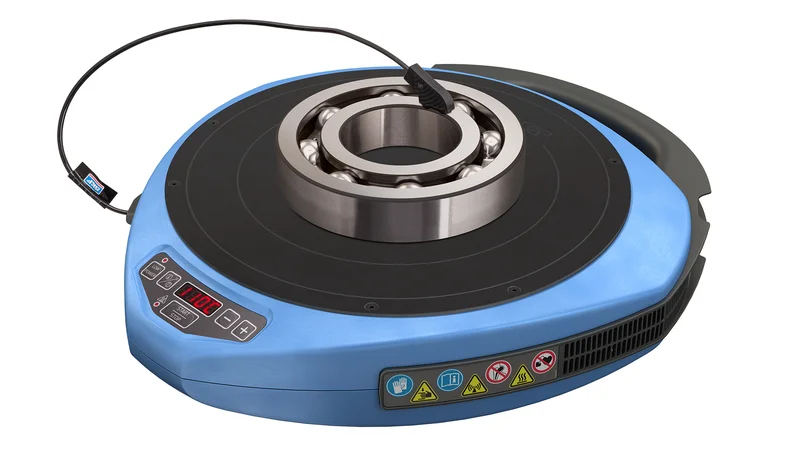

The SKF portable induction heater TWIM 15 is designed for heating roller bearings mounted to shafts with an interference fit. Heating expands the bearing, eliminating the need for resistance in mounting. In general, the use of TWIM 15 to create a temperature difference of 90°C (162 °F) between the bearing and the shaft is sufficient to initiate the installation. In addition, the TWIM 15 can be used to heat other ring-shaped metal parts, providing flexibility in use.
Using a power supply, TWIM 15 is characterized by a high-temperature resistant plastic structure made of fiberglass, which can achieve a low temperature difference between the inner and outer rings of the bearing. This helps to reduce the internal tension caused by excessive thermal expansion on the inner ring compared to the outer ring.
The device is equipped with a user-friendly LED control panel, which does not require special training and is easy to understand. This panel is used to regulate temperature and indicate whether TWIM 15 is in operation.
Advantages of TWIM 15:
Innovative bearing heating method
Portable, compact, and lightweight;
No magnetic yoke required
Automatic temperature monitoring
Proper detection of bearing size and heat
Two power classes and three power configurations
User friendly LED control panel
Noise-free operation

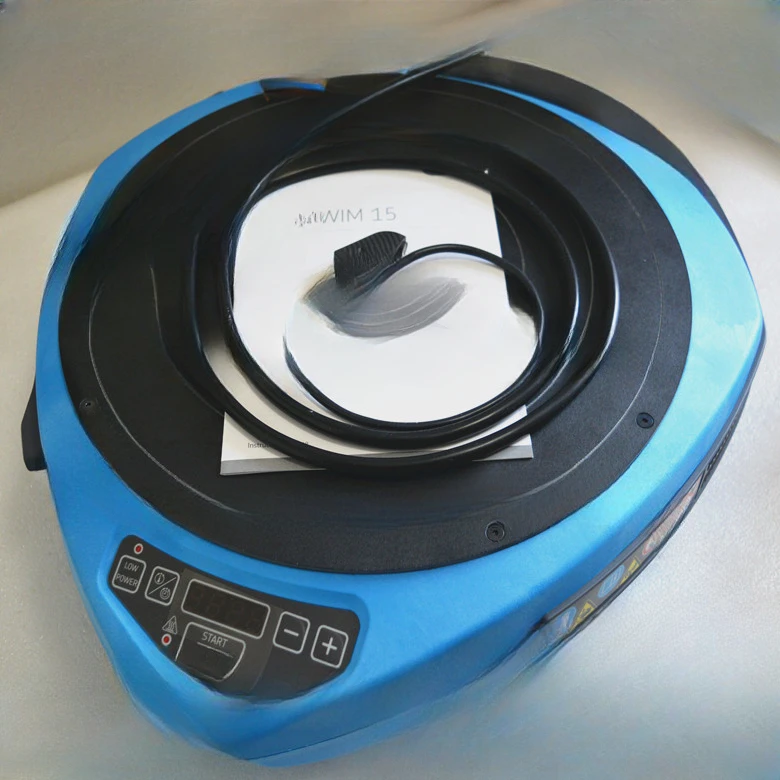

TWIM 15 Portable induction heater package includes:
Portable induction heater TWIM 15
Magnetic K-type 400; Mm temperature probe TWIM; 15-3
Temperature resistant gloves TMBA G11
使用explain
With multiple functions
由于感应板平整的外形,所需不需要磁轭. 这增加了板上可加热部件的种类,并同时减少所需的annex数量.

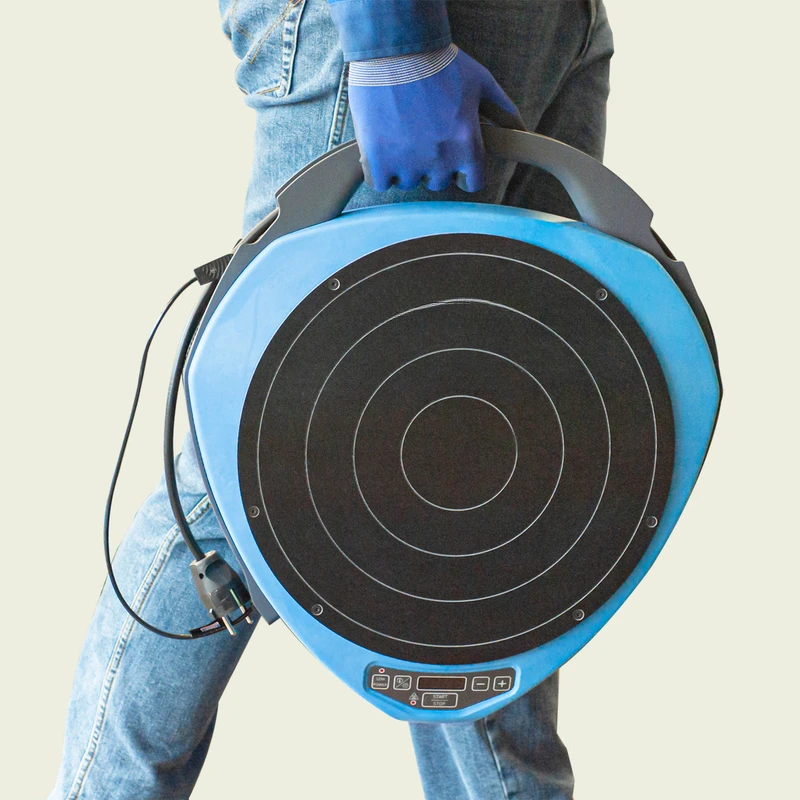

Portable
Thanks to the medium frequency technology and the choice of materials, this heater is light in weight. At the same time, the built-in handle makes it easier to transport and store.
Innovative heating
Using intelligent construction and operating software, a low temperature difference between the inner and outer rings of the heater bearings is achieved. This reduces the internal tension due to excessive thermal expansion on the inner ring compared to the outer ring
Power regulation
Equipped with two functional settings, TWIM 15 can heat sensitive components at a lower speed. At the same time, non bearing power configurations can be achieved, where the majority of power is concentrated on the inner diameter of the component.
quiet
Adopting intermediate frequency technology, the heating of components will not generate noise. Even if you can't hear it, the LED will indicate that TWIM 15 is heating up!
number of order
TWIM 15
Maximum weight added1)
20 kg (44 lb)
Minimum bearing inner diameter
20 mm(0.79 in.)
Maximum bearing outer diameter
320 mm(12.6 in.)
Maximum bearing width
85 mm(3.35 in.)
Performance examples
(Bearing, weight, temperature, time)
6320: 7.1 kg(15.7 lb),110 °C(230 °F),5 min 20 s
22 320 CC/W 33: 12.8 kg(28.2 lb),110 °C(230 °F),12 min 35 s
maximum power
TWIM 15/230 V: 2,3 kVA
TWIM 15/110 V: 1,8 kVA
voltage
TWIM 15/230 V: 230 V,50 Hz
TWIM 15/110 V: 110 V, 60 Hz
Maximum power consumption
TWIM 15/230 V: 10 A
TWIM 15/110 V: 16 A
Temperature-controlled heating mode
20-200 °C (68-392 °F)
demagnetize
The heater is not magnetic
Size (w x d x h)
450 x 500 x 100 mm(17.7 x 19.7 x 3.9 in.)
gross
6,6 kg (14.6 lb)
1)Based on the geometric shape of the bearing, the availability of the highest heating temperature and power.
附件

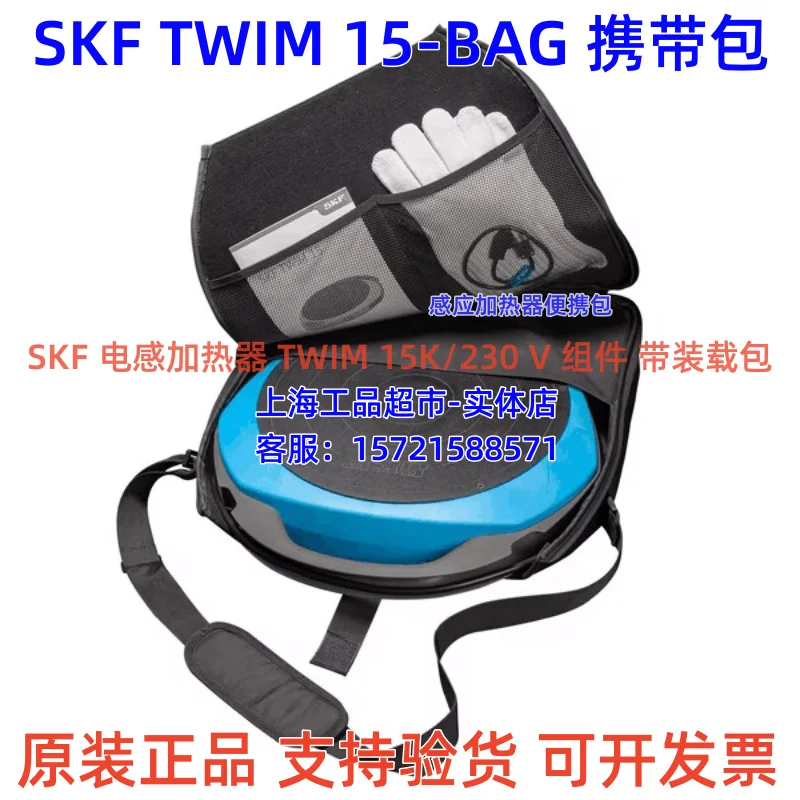

TWIM 15-BAG
Convenient way to carry TWIM 15 induction heater
SKF TWIM 15-BAG is an optional accessory for TWIM 15. It is more convenient to carry the SKF TWIM 15 induction heater. It has two pockets that can accommodate heat-resistant gloves, temperature probes, and user instructions - this allows the heater to be carried with all its accessories. Like induction heaters, TWIM 15-BAG also adopts a compact design.
Helps you protect your heater and keep it clean. For example, it provides a sheath for the heater, making it safe from dust and industrial contamination when stored. Its sturdy material prevents other tools from scratching and improper handling. Easily and safely transport the heater in the trunk of your car.
It also comes with shoulder straps, making it easy to carry the heater to the site. Now you can carry it on your shoulders and back, freeing up your hands!
Features:
Fully compatible with TWIM 15 exterior design
Made of strong materials
Pocket containing accessories for storage
Equipped with shoulder straps for easy carrying
Compact design
TWIM 15K/230V
SKF Inductive Heater TWIM 15K (230 V version) Assembly with Loading PackagePortable, lightweight, compact and sturdy
Sturdy portable toolbox with shoulder straps and pockets for storing accessories
Intelligent and innovative bearing heating technology
No magnetic yoke required
Automatic temperature control
Detects bearing dimensions and automatically realizes heating adjustment
Order number
说明
TWIM 15-3
Magnetic K probe 400mm(1.31 ft)
