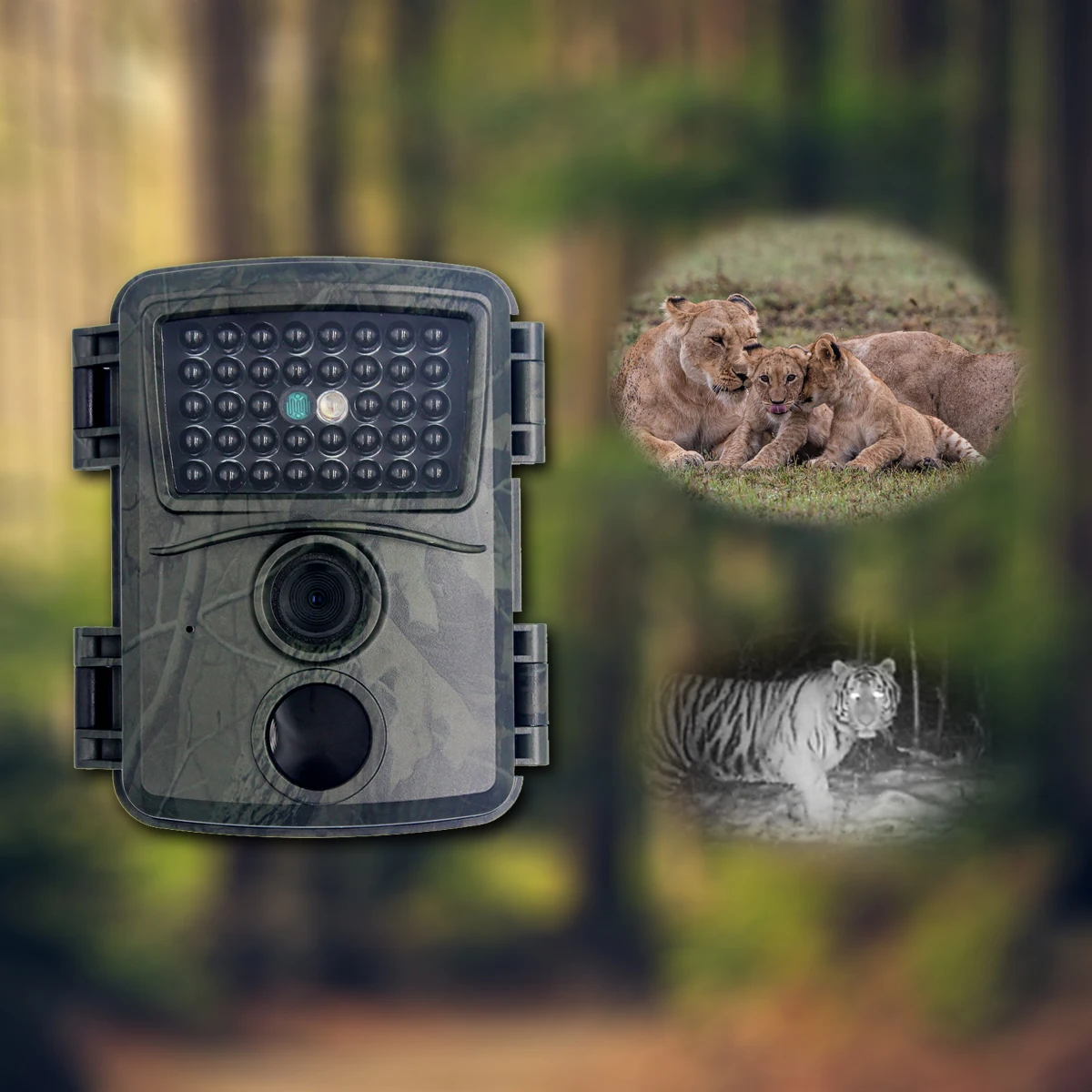

HD 1080P 12MP Resolution Outdoor Hunting Cam Night Vision Mini Hunting Trail Camera Wildlife Hunting Camera Photo PR600

PR600 Hunting Camera Mini Hunting Trail Camera Wildlife Trail Camera HD 1080P 12MP Resolution Outdoor Hunting Cam Night Vision

Features:
1. HD Camera: The trail camera is easy to use and can hold a 32GB TF card to capture clear images. The trail camera has Flextime + time-lapse photography technology, Redux Anti-Blur technology and exposure control system, which can provide clear, high-definition images and high-quality pictures. Its wide-angle 4:3 aspect ratio option is perfect for taking photos during the day or night.
2. Wide Angle: The trigger speed of 0.8 seconds and the detection angle ensure that animals can be captured quickly every time they pass, and no action will be missed.
3. Perfect for Monitoring: The cam features the built-in non-luminous 940nm black 38pcs IR LED can Photographing animals at night, will not scare away animals, and the cam can even Photographing animals 66 feet away. When night falls, the infrared light will automatically turn on and take black and white images.
4. Waterproof and Energy Saving: The cam is IP54 waterproof, perfect for -4-140°F operating environment, and it features the ultra-low power consumption by using the 4 AA 1.5V batteries (not included), in standby, it can be used up to 6 months. With 5V DC connection, it supports external power supply.
5. Multifunctional Cam: Support SD card, SD / SDHC card maximum 32GB. With the help of wall-mounted and tree-shaped straps, the camera can be firmly fixed on the wall/ceiling/trees, with a portable suitcase, the cam is suitable for home security, monitoring, surveillance and reconnaissance games.

Specifications(about):
video resolution: 1920*1080
photo resolution: 12MP, 4000*3000
Image Sensor Type: 3MP color CMOS Sensor
Lens: f=6.0mm FOV=52°
Pir distance: 15m
Pir angle: 60°
Trigger time: 0.8s
Video lenght: 5s/10s/20s/30s
TF Card: 8MB~32GB
Working modes Camera: Photo/Video/Photo + video
IR Filter: Full Automatic IR Filter
TFT Display Screen: None
Housing Style: Toggle
Housing Color: Three colors as shown
Total PIR sensor angle: 110°
PIR Sensing Distance: 65ft/20 meters
Number of IR LED: 38PCS 850nm LEDs
Max Night Vision Lighting Distance: 48ft/15 meters
Trigger Speed: 0.2-0.6 second
Interval: 2 seconds ~ 30mins (default 15 sec)
Selectable Image Resolution: 12MP/8MP/5MP
Video Resolution: 1920*1080P 30fps, 1280*720P 30fps ,640*480P 30fps, 720*480P 30fps
File Format: JPG/AVI(MJPG)
Exposure: Auto
Stand-by current: Less 0.2mA
Stand-by time: about 6 months (battery not included)
MIC: support
Support: USB, TF Card Holder, 5V DC External
Operation Temperature: -30-70°C
Operation humidity: 5% ~ 95%
Power Supply: 4 AA Battery DC: 5V-1A (battery not included)
Waterproof: IP54

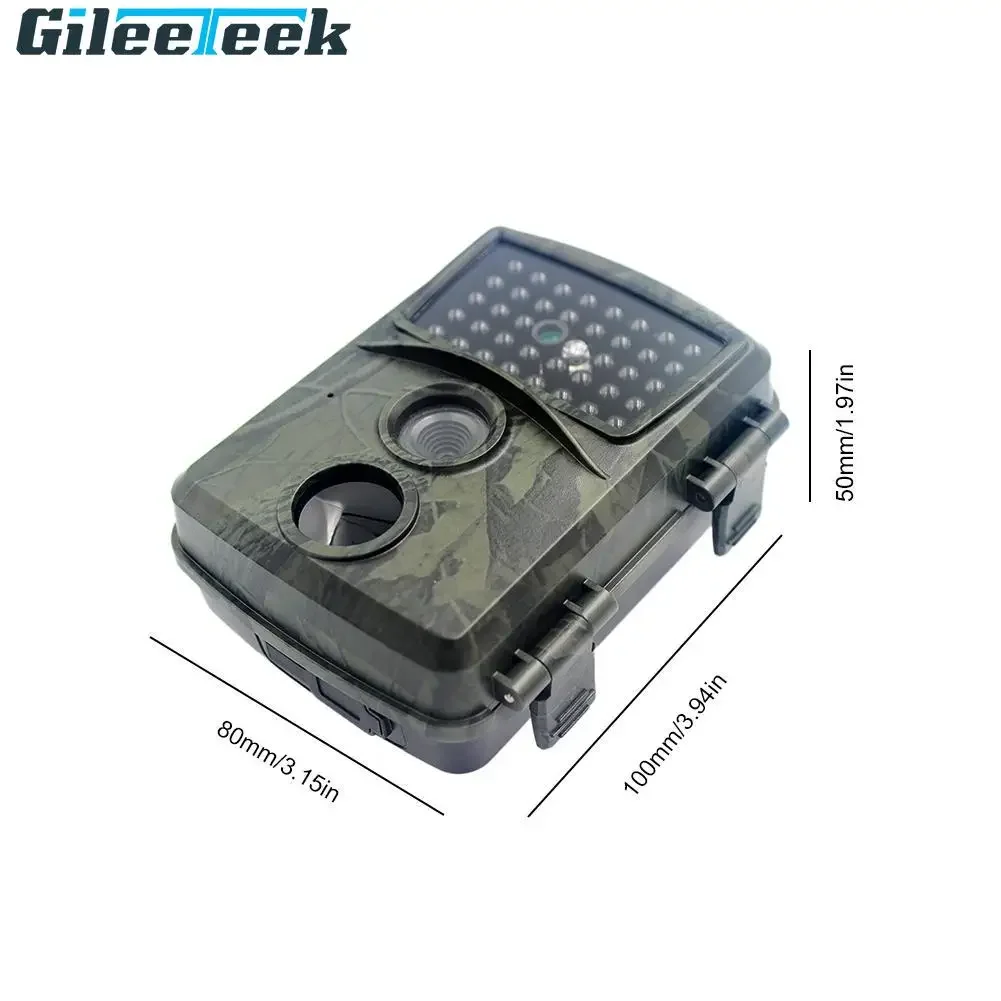

Cam size: about 100(L)x80(W)x50(H)mm/3.94x3.15x1.97in
Package size: about 180(L)x120(W)x50(H)mm/7.09x4.72x1.97in
N.W.: about 165g
G.W.: about 265g
Accessory: user Manual, USB cable, strap, card reader

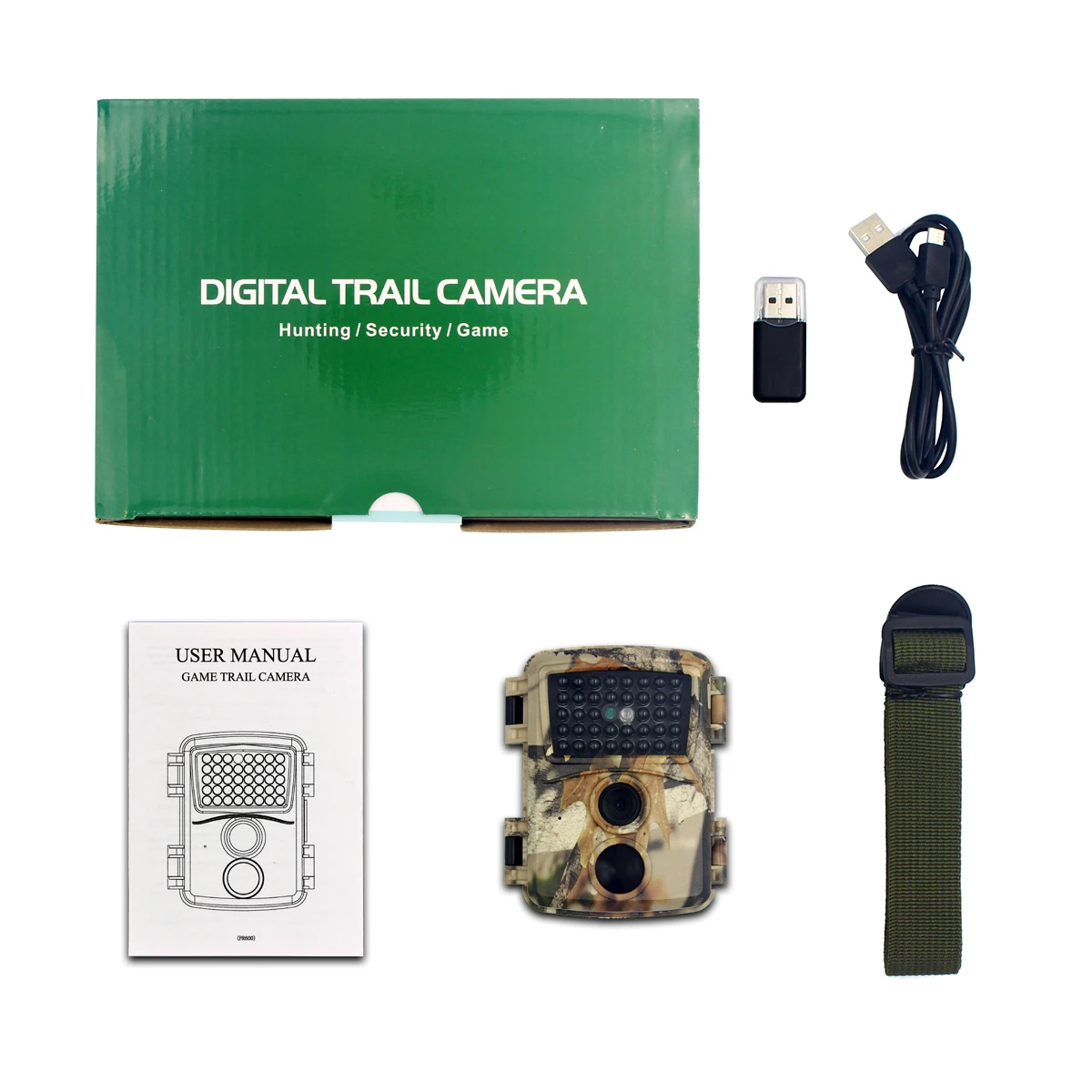

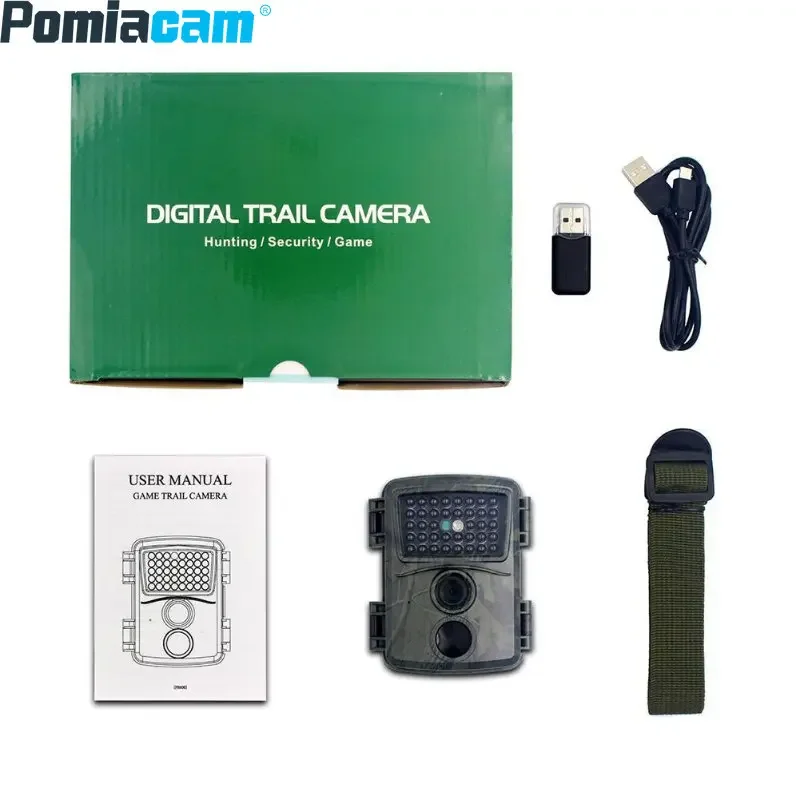

Packing List:
1 x Camera
1 x Mounting Strap
1 x USB Cable
1 x Manual
1 x Card Reader

USER MANUAL

GAME TRAIL CAMERA

Thank you for choosing one of our easy operation highly qualified products. You now may enjoy the excellences reflected on this series product. This 12MP HD digital camera was totally R&D by our diligent and smart engineers based on feedbacks and requirements from customers globally. May you also enjoy and adore this product as we do. And our company is always open-minded with willing to adopt creative ideas from you.

1: Besides all the functions you may experience from any other similar product; This digital camera is aimed to offer user the most easy to use experience withextraordinary features, like 52°FOV Lens, 38pcs IR LED's, 0.8S trigger time,and 1 photo/s, up to 5 photos and 30S video file per trigger.

2: This digital camera is an ideal product for housing security, warehouse surveillance, and monitoring wild animals with its camouflage appearance and nice shape. It is convenient to install or fasten, could be used to take photographs and carry onvideo files.

a. Instant surveillance camera for home, office, construction site, and warehouse, etc

b. Motion-triggered infra-red night vision surveillance;

c. Animal observation and hunting;

3: Power Supply

PR600: Camera runs on 4pcs AA batteries or DC 5V power or 5V solar panel

Note: Recommend to remove AA batteries when power adapter is used.

4: USB Connection

When camera is connected on PC via USB Cable, only read data files

When camera is connected on adapter via USB cable, only power supply

5: How to Start?

A: Open battery box, and put 4pcs AA batteries (PR600) to Camera

B: Insert TF card to Camera, like the following photo

C: Put the switch to "ON"position, and the indicator light will flashing 2 times to go out, Camera will enter PIR detect status.

D: It will take 3 photos and 10s video record when it has PIR detected

E: It will not take photo and video recorder when it doesn't have PIR detect, it will enter standby status or shut off

F: It has Overwrite function

6: Specifications:

1. Image Sensor: 3MP Color CMOS

2. Photo resolution: 12MP 4032*3024

3. Video resolution: FHD 1920*1080P 25FPS

4. Trigger time: 0.8S

5. Work mode: Photo, Video, Photo+video

6. PIR angle: 60 degree

7. Lens: wide 52 degree

8. IR LED: 38pcs 940nm black Lights, 10M

9. PIR Distance: 15M

10. Memory: Max Micro SD 32GB

11. USB Slot: 5pins USB 2.0

12. Power Supply: 4pcs AA Batteries or DC 5V

13. Waterproof: IP54

14. Stand-by Time: 8Months

15. Stand-by current: 0.01mA

16. Size: 110*92*55MM

17. Weight: 110g

18. Temperature: -10~+70℃/-14~+158℉

19. Certification: CE FCC ROHS

7: Set Date and Time, Work Mode:

Set up a text file as name: time, open "time.txt" file, set date and time format: 2019-11-11 12:59:59 332Y, and save it to micro SD card root.

332Y work mode as follows:

The first digital number: 1 for photo mode, 2 for video mode, 3 for photo + video (the default value for 3)

The second digital number: 1 for 1pc picture, 2 for take 2pcs pictures, 3 for 3pcs pictures, 4 for 4pcs pictures, 5 for 5pcs pictures (Max) (the default value for 3).

The third digital number: 1 for 5s video file, 2 for 10s, 3 for 20s, 4 for 30s (the default value for 2)

The fourth letter: Y for show date and time logo on picture and video, N for not show.

Note: change date, time and work mode, only change digital and letter, can not change

format, and save time.txt file.

Change date, time, work mode, must put the switch to off and cut off power

It will not change date, time, and work mode, if no cut off power.

After cut off power, please install the battery box, and insert SD card to camera, and put the switch to ON, the indicator light will flash two times, and camera will take photo or video record, and can find the current date and time on picture or video file, and can check work mode for your settings.

8: Warranty Policy:

A: Dear customers:

Thank you for using our trail camera product, to obtain better warranty service, please carefully read following clauses.

B: Duration of warranty

1: We provide one year warranty service for the main body

2: We do not replace or refund any sold product except for quality problem

C: Disclaimers

This warranty does not cover the followings cases:

1: Man-made surface corruption, break, distortion, or damages due to improper installation, operation, and maintenance.

2: Connecting port is distorted or cracked; PCB is distorted, cracked, damaged or burned; chip is severely burned.

3: The warranty period has expired.

4: Product repaired by unauthorized service provider or personnel, or disassembled by users themselves

5: The original label or bar code has been removed, damaged or modified
