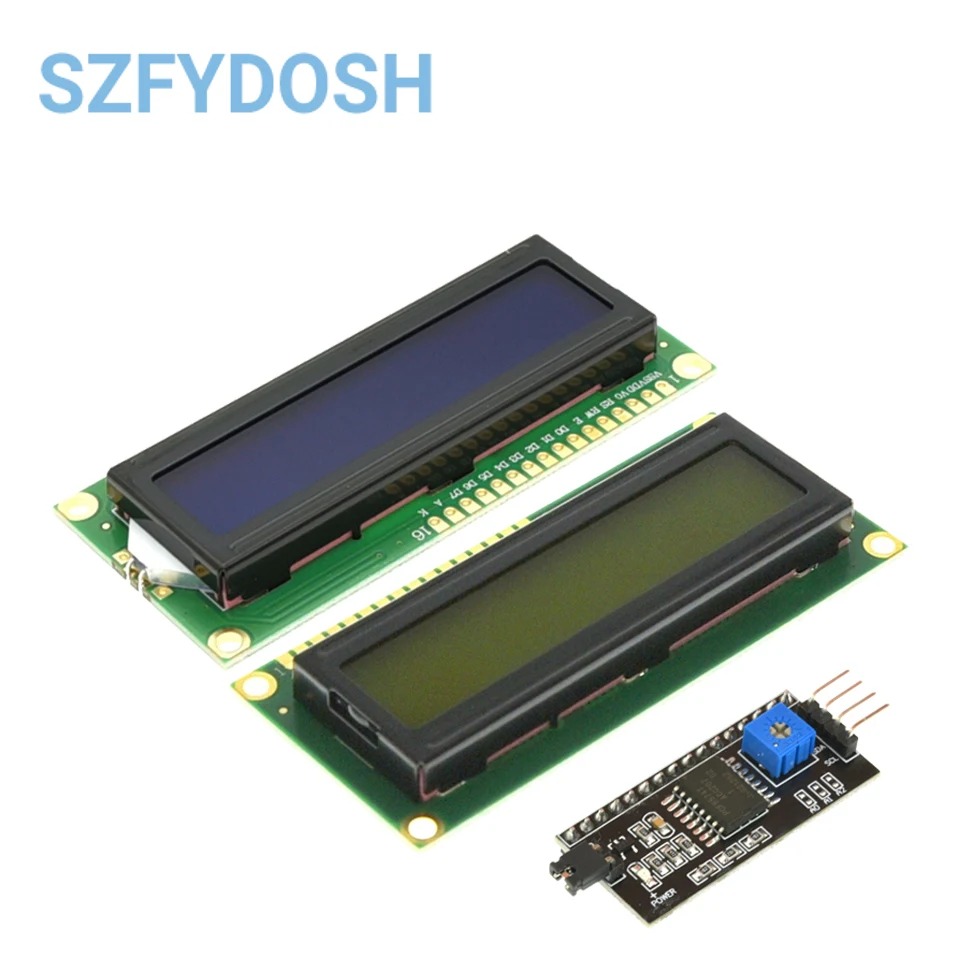

Módulo LCD LCD1602 1602 pantalla azul/amarilla verde pantalla LCD de 16x2 caracteres PCF8574T PCF8574 interfaz IIC I2C 5V para Arduino
0,99 € 1,64 €
Con la garantía de
Selección del modelo
Color
comprobando cupones disponibles...
Some placeholder content for the collapse component. This panel is hidden by default but revealed when the user activates the relevant trigger.
1602A Blue/ Yellow-Green

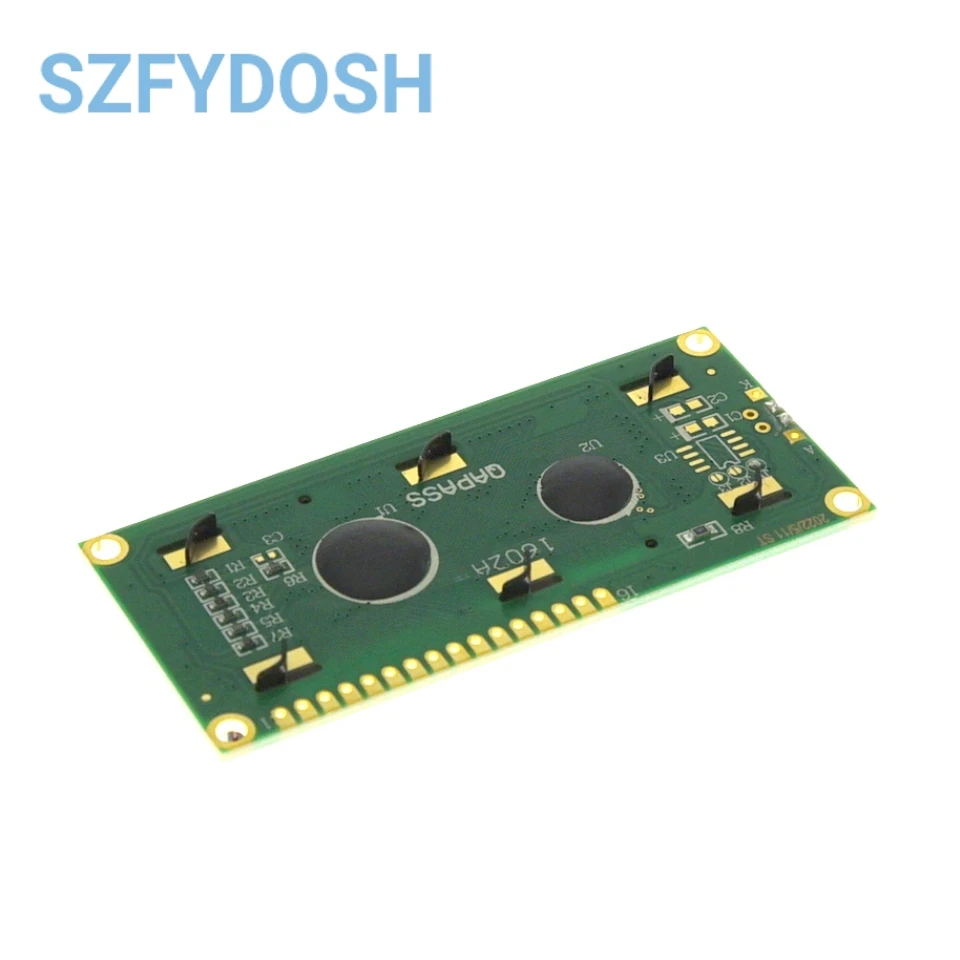

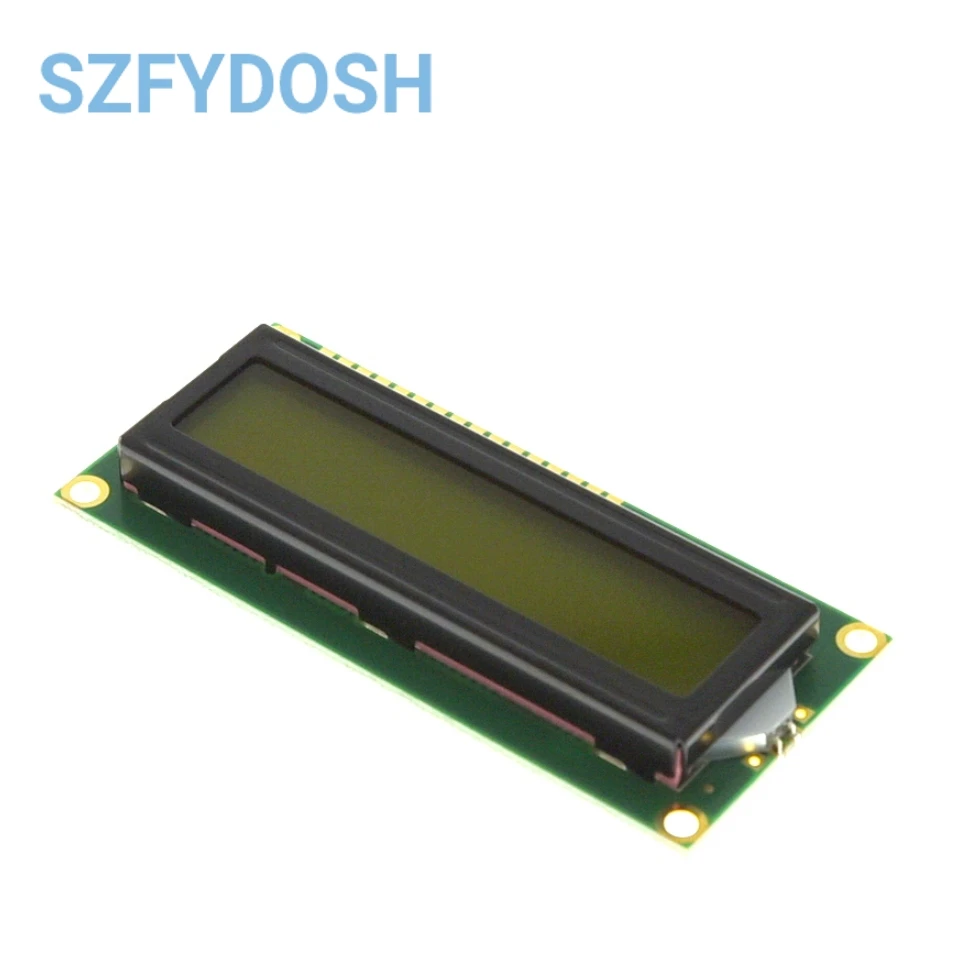

The LCD1602A character type liquid crystal display module is a dot matrix liquid crystal display module specifically for displaying letters, numerals, symbols, and the like. It is divided into 4-bit and 8-bit data transmission methods. Provides a 5x7 dot matrix + cursor display mode. A display data buffer DDRAM, a character generator CGROM, and a character generator CGRAM are provided, and CGRAM can be used to store font data of up to eight 5x8 dot matrix graphic characters defined by itself. Provides a wealth of command settings: clear display; cursor back to origin; display on / off; cursor on / off; display character flicker; cursor shift; display shift element. An internal power-on automatic reset circuit is provided. When the external power supply voltage exceeds +4.5V, the module is automatically initialized and the module is set to the default display working state.LCD1602A is an environmentally friendly liquid crystal display module.
Parameter:
Logic working voltage (Vdd): +4.8~+5.2V
LCD drive voltage (Vdd-Vo): +3.0~ +5.0V
Working temperature (Ta): -20~+70C (wide temperature)
Storage temperature (Tsto): -30~+ 80C (wide temperature)
Operating current (except backlight): 1.7mA (max)
Working current (backlight): 24.0mA (max)

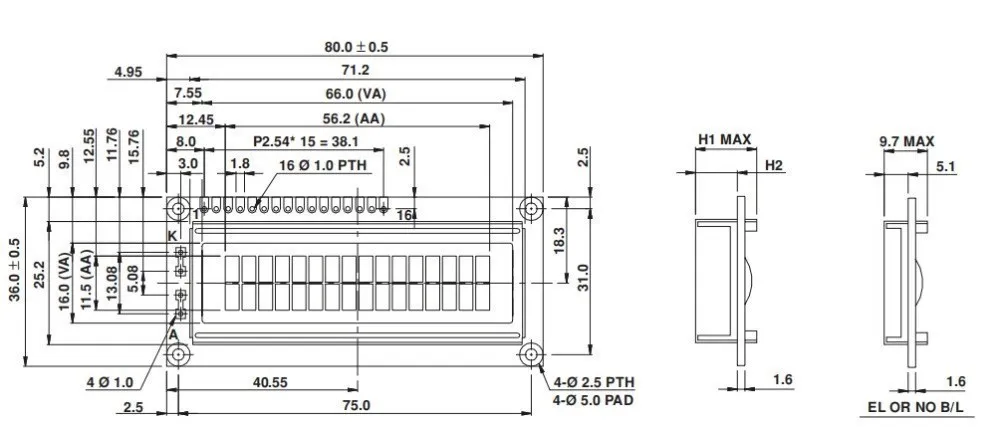

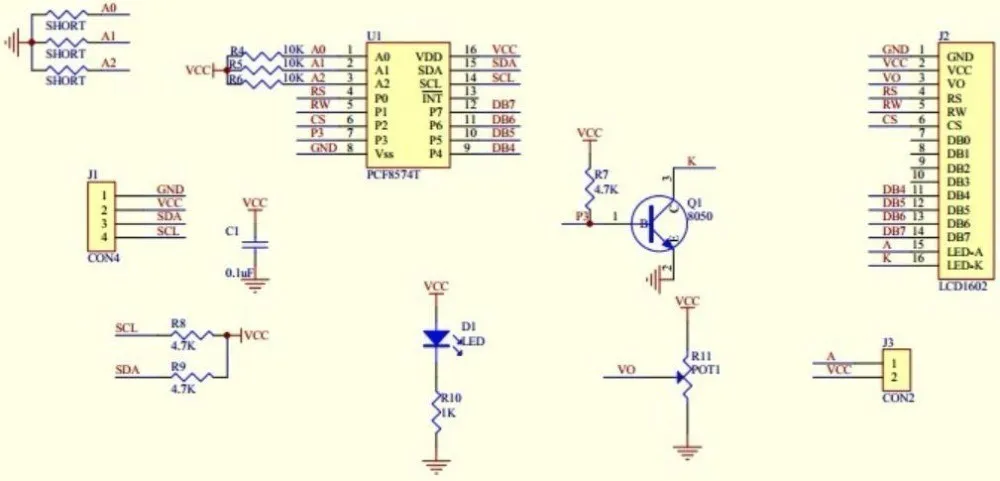

Default address : When shipped, A2~A0 are all left floating. The I2C address at this time is the default address in the table below. If you want to modify the address yourself, note that the address pad is floating and the short is 0.Product Features:The module uses the PCF8574, which enables most MCUs to implement remote I/O port expansion via two bidirectional buses (I2C). The device includes an 8-bit quasi-bidirectional port and an I2C bus interface. The PCF8574 has low current consumption and the port output latch has high current drive capability to directly drive the LED. It also has an interrupt line (INT open-drain output) that can be connected to the interrupt logic of the MCU. By sending an interrupt signal through INT, the remote I/O port can inform the MCU whether there is data input from the port without having to communicate via the I2C bus.Product parameters:Size: 41.mm (length) * 19mm (width) * 15.3mm (height)
Working voltage: 2.5-6V
