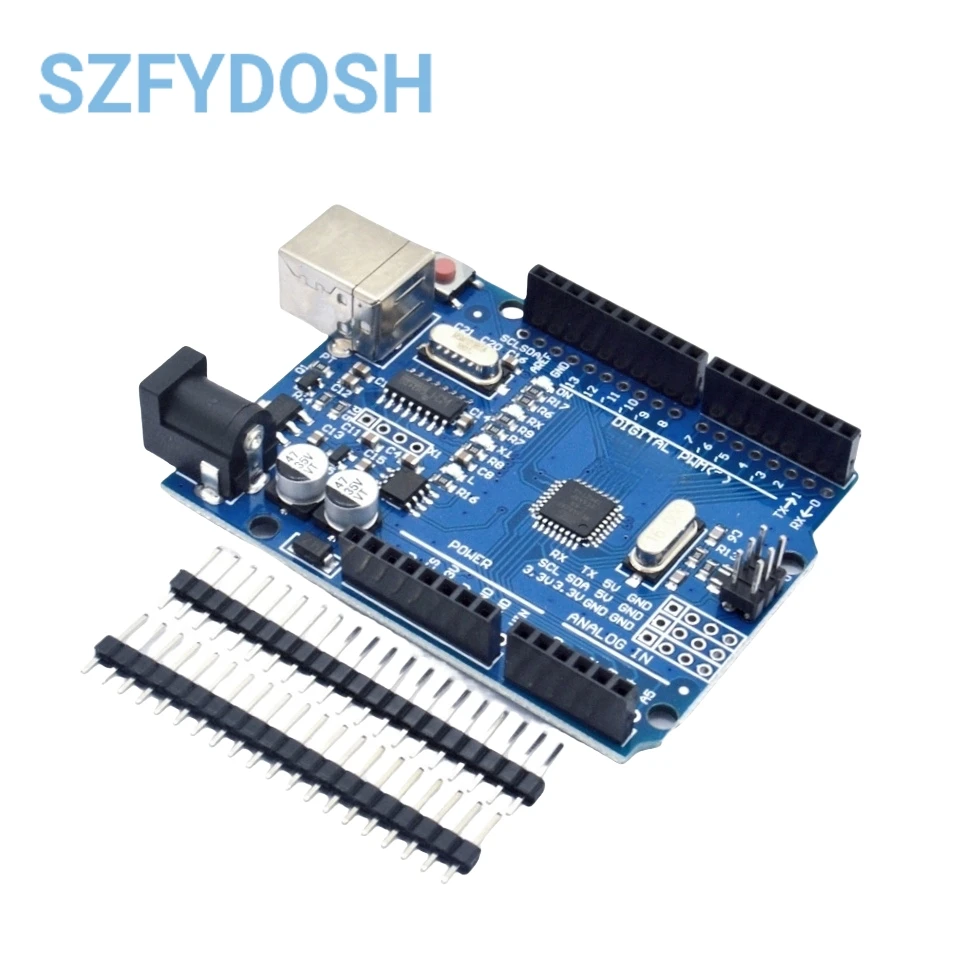

Placa de desarrollo R3 WeMos WiFi R3 ATMEGA328P/PB Chip CH340G para placa de desarrollo UNO R3 Arduino WeMos ESP8266

ATMEGA328P Chip CH340G For Arduino UNO R3 Development Board

This version is optimized on the original version, mainly designed for foreign customers with high product quality and functional requirements. It is guaranteed to be completely consistent with the original version and convenient for everyone to use.

Advantages:
1 completely solved the incompatibility of the traditional UNO board in win7 and win8 system.
2. The pin header is added to facilitate the use of the DuPont line.
3. Replaced 16u2, reducing costs to half, consumers get the most benefits

Instructions:
1. Download arduino's IDE
Download address: (copy open)
2. Download the USB chip driver
Download address:
Download Foreign customer download address:
3. Plug in the UNO development board and the driver will be installed automatically.
4. Select the board in the die UNO
5. Select the COM port, this can be queried in my computer, just the port inside your uno development board
6. It is best to choose the routine program that comes with arduno and burn it into it.
---------
For UNO R3 SMD- parameter
USB power supply pressure: 5V
DC port supply voltage pressure: 7V-12V
Main controller model: SMD package ATMEGA328P
USB to serial chip model: chip package CH340
Digital I0 ports: 14 (6 of which can be used as PWM ports)
The external power supply is limited to a maximum current of 1A
10 ports limit high current 40mA
Analog input pins: 6 (2 of which can be used as I2C interface)
Flash memory capacity: 32KB (of which 2KB has been used as BootLoader space)
SRAM: 2KB
EEPROM: 1KB
Clock frequency: 16MHZ
Size: length 75mm*width 53mm*height 12.5mm

1. Plug in the UNO development board, the driver will be installed automatically
2. Select the board UNO in die
3. Select the COM port, this can be queried in my computer, the port in your uno development board just now
4. It's best to choose first, the built-in routine program, burn it in

Feature description
Open the circuit diagram of the original design, the development software interface is free to download, and you can also modify it yourself according to your needs. The downloading program is simple and convenient. You can simply use sensors and various electronic component connections (such as: LED lights, buzzers, buttons, photoresistors, etc.) to make a variety of interesting works.

Using the high-speed microprocessor controller (ATMEGA328), the development operation interface and environment are very simple and easy to understand, which is very suitable for beginners to learn.

Performance description
Digital I/O Digital input/output terminals are 0~13 in total.
Analog I/O Analog input/output terminals are 0~5 in total.
Support ISP download function.
Input voltage: No external power supply is required when connected to the computer USB, external power supply is 5V~9V DC voltage input.
Output voltage: 5V DC voltage output and 3.3V DC voltage output.
Using Atmel Atmega328 microcontroller
