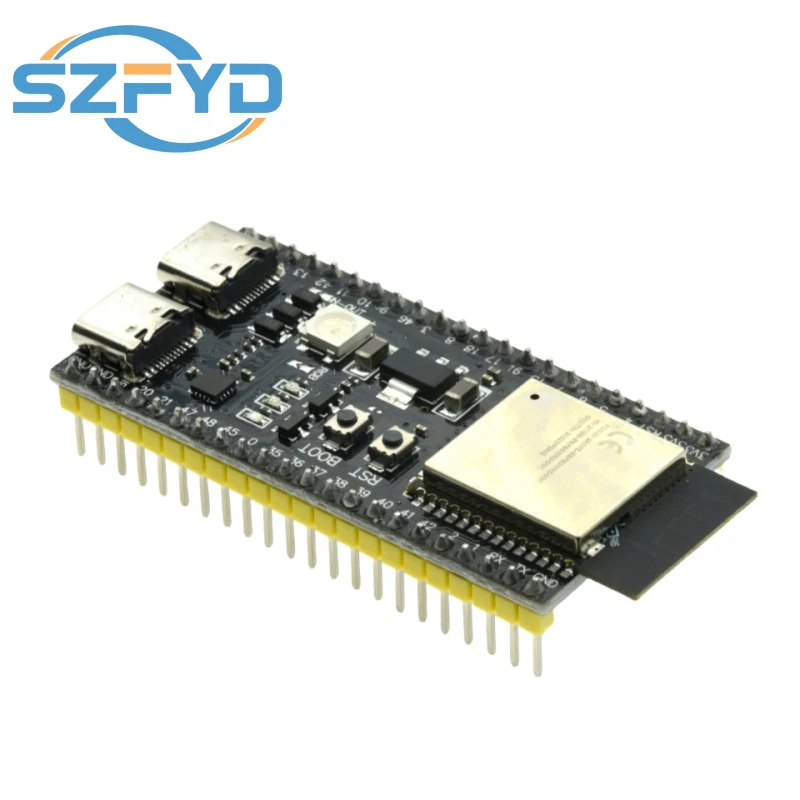

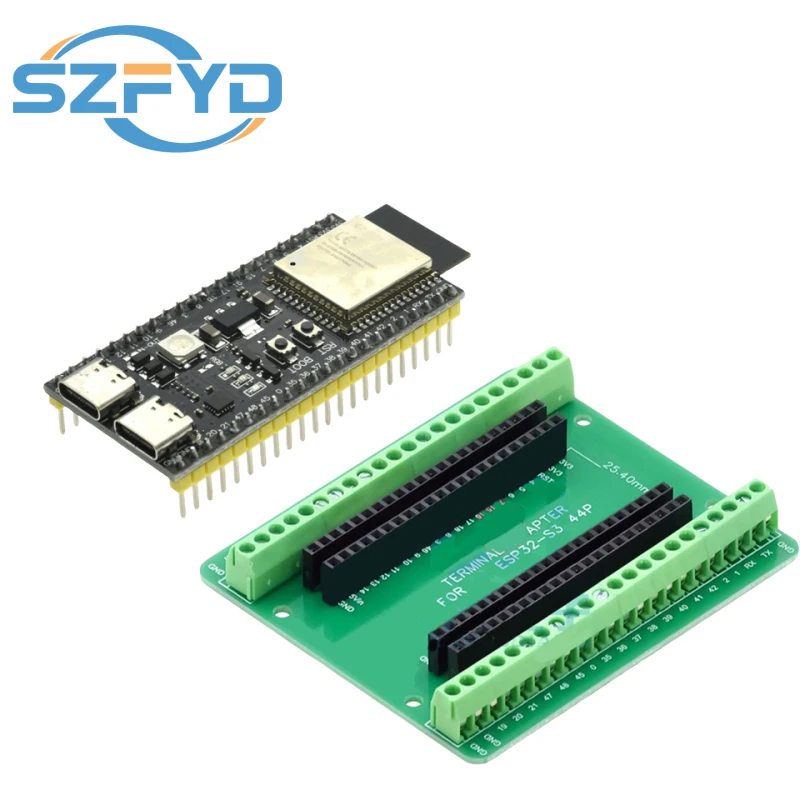

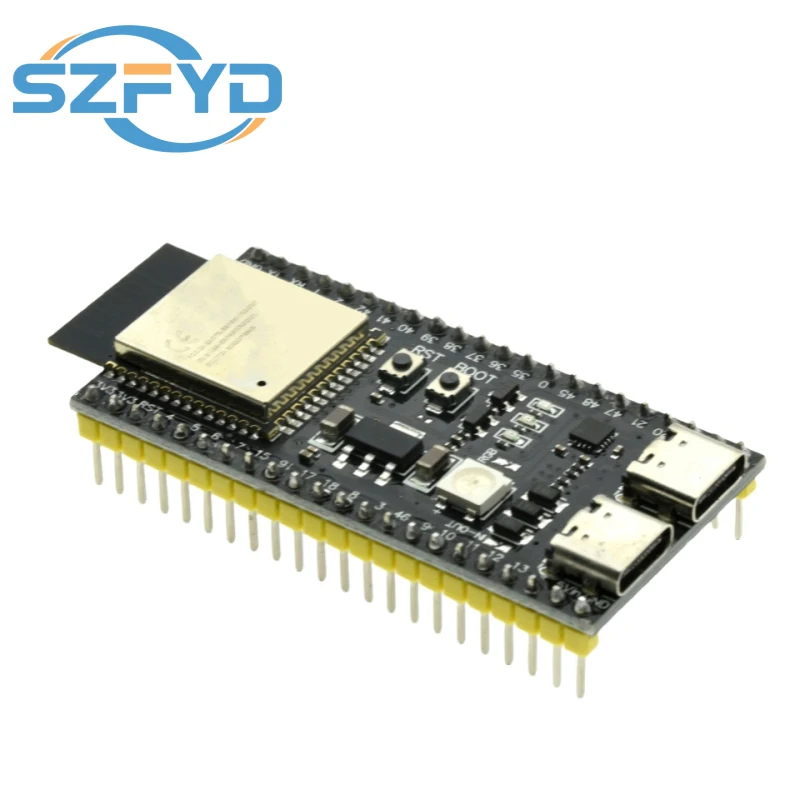

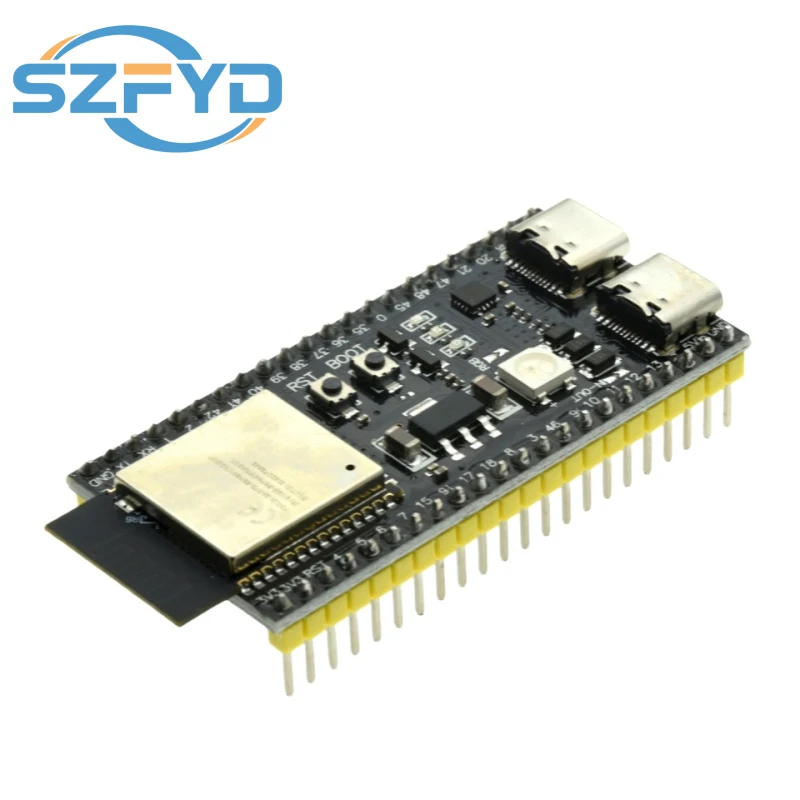

Placas de desarrollo ESP32 S3 con kit adaptador de expansión 2,4G Wifi BT módulo ESP32-S3-1 N8R2/8 N16R8 44Pin tipo C ESP32-S3

The link provides a selection of N8R2/N8R8/R16R8 specification items, which are in turn downward

Capacity, storage specifications of small module programs, can be directly run in higher regulations without modification

A program on a grid storage module, such as N4, can run on top of N8, N16, and outside

The specification module program with prom 0 can operate the external psram module with 2M and 8M

Block above.

About ESP32-S3 hardware resources

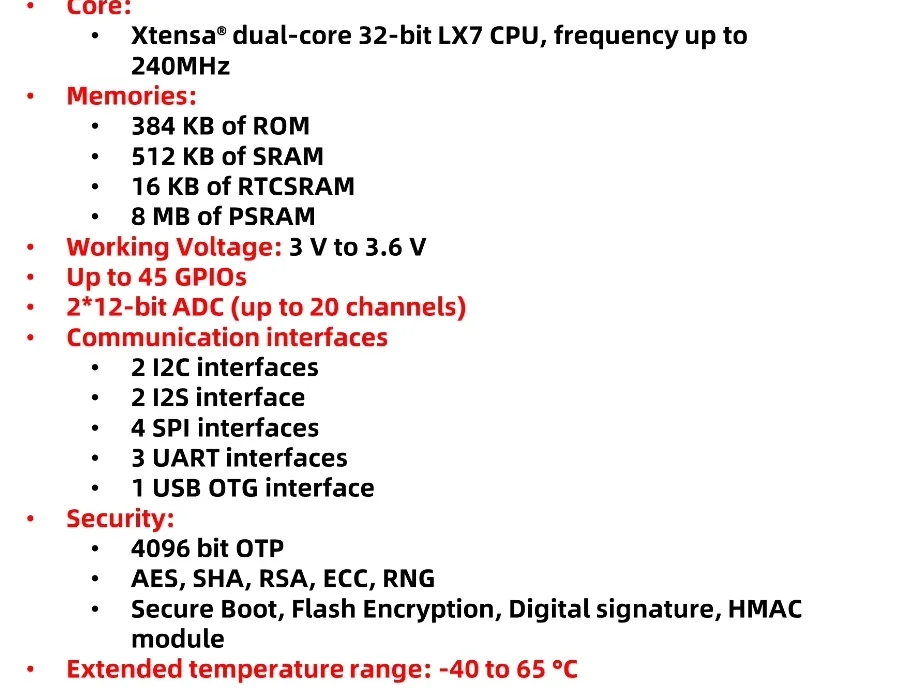

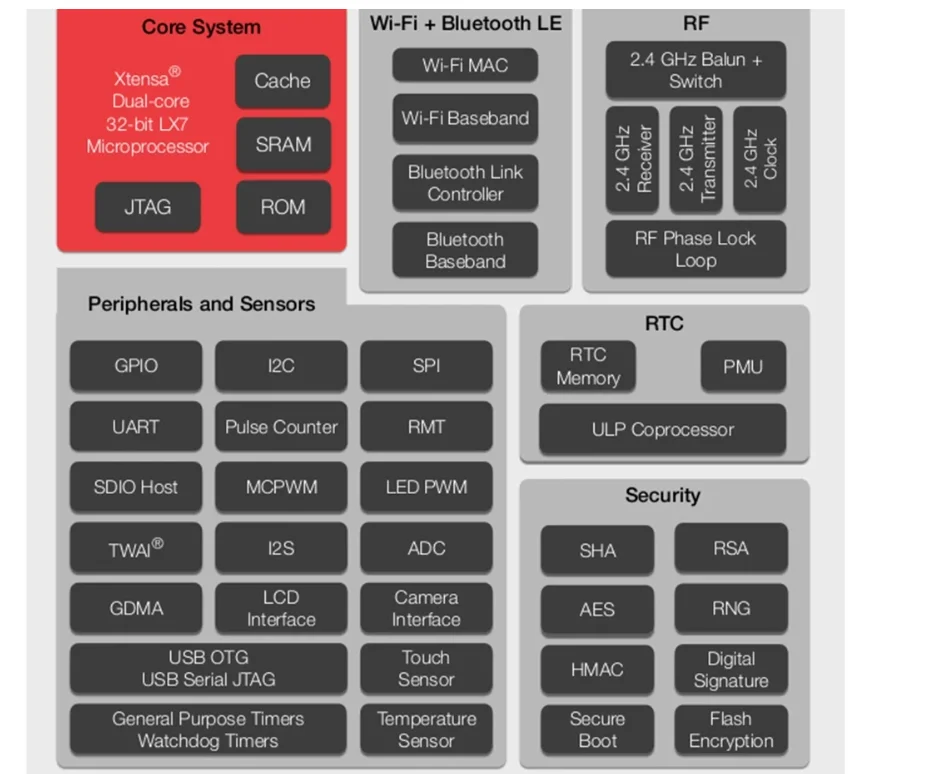

The ESP32-S3 is a low-power MCU system-on-chip (SoC) with integrated 2.4GHzWi-Fi

And Bluetooth Low Power (Bluetooth®LE) dual-mode wireless communication.

The ESP32-S3 has a full Wi-Fi subsystem and Bluetooth Low Energy subsystem with the industry leading low

Power performance and RF performance. Supports a variety of low-power working states to meet the power requirements of various application scenarios.

ESP32-S3 chip provides a rich peripheral interface, and has a variety of unique hardware security mechanisms.

The perfect security mechanism enables the chip to meet the strict security requirements.

Property：

WI-FI

Support lEEE 802.11 blg/n protocol support 20 MHz and 40 MHZ

bandwidth in 2.4 GHz band;

Supports 1T1R mode with data rates up to 150 Mbps;

Wireless Multimedia(WMM);

Frame aggregation (TX/RXA-MPDU, TX/RXA-MSDU);

mmediate BlockACK:

Fragmentation and defragmentation;

Beacon automatic monitoring (hardware TSF);

4 x virtual Wi-Fi ports;

Supports Infrastructure BSS Station mode, SoftAP mode, Station+

SoftAP mode and Promiscuous mode at the same time (please note

that when ESP32-S3 series chips scan in Station mode, the SoftAP

channel will change at the same time);

Antenna diversity;

802.11 mc FTM;

Support for external power amplifier.

Bluetooth

Bluetooth Low Energy (Bluetooth LE): Bluetooth 5, Bluetooth mesh;

High Power Mode(18 dBm);

Rates support 125 Kbps, 500Kbps, 1 Mbps, 2 Mbps;

Advertising Extensions;

Multiple Advertisement Sets;

Channel Selection Algorithm #2:

Wi-Fi and Bluetooth coexist and share the same antenna.

Advanced peripheral interfaces and sensors

45 xGPlO ports

Digital interface

-4x SPI

-1xLCD interface (8-bit to 16-bit parallel RGB, I8080, MOT06800)

Support conversion between RGB565, YUV422, YUV420, YUV411)

-1 x DVP 8-bit~16-bit camera interface

-3 xUART

-2 x12C

-2 xI2S

-1 x RMT (TX/RX)

-1 x Pulse counter

-LED PWM controller, up to 8 channels

-1 x Full Speed USB OTG

-1 x USB Serial/JTAG controller

-2xMCPWM

-1x SDlO host interface with 2 card slots

-General purpose DMA controller (GDMA for short),5 receive

channels and 5 transmit channels

-1 xTWA® controller, compatible with lS011898-1(CAN

specification 2.0)

Analog Interface

-2x12-bit SAR ADC, up to 20 channels

-1xtemperature sensor

-14 xcapacitive sensing GPlO

timers:

-4x54-bit general purpose timers

-1 x52-bit system timer

-3 x watchdog timers
