SKWoptics-First Focal Plane Rifle Scope FFP, largo alcance, anillo de 34 mm, caza, resistente, retícula BDC 5-30x56
473,69 €
Selección del modelo
Color
ABOUT THE SS 5-30x56FFP-MIL-C
SS 5-30X56FFP-MIL-C, the latest product developed by SKWoptics, is designed for the following professionals: Tactical Shooting Shooting competition Long-range Precision Shooting Users who require high reliability of products in harsh environments. The error of optical axis is close to 0 when changing different magnification. The product is quite strong.
It use the BDC Reticle, its shell thickness of the main body is 2.5 mm, which is much higher than that of similar riflescopes. ent sizes.
34mm Tube，each click value is 0.1 MIL, Side Focus System, Side focus range of 10 yards to infinity.
Description:
SKWoptics Tactical Riflescope SS5 - 30 x 56FFP-MIL-C，
34mm Tube，
Each click value is 0.1 MIL,
Side Focus System,
First Focal Plane system, NoIlluminated
Enhanced BDC Reticle
Length: 375mm
Matte was created specifically for tactical situations using state of the art technology and proven construction techniques.
This high Magnification rifle scope features fully multi-coated optics. Part of the series, the rifle scope features multi-coated lenses that allow for superior light transmission and high resolution images, even at the high magnification.
And all of the lenses in 5-30X56 FFP are also physically coated to achieve maximum surface scratch resistance. Nitrogen-filled and waterproof rubber gasket seals ensure adequate waterproof and fog-proof performance at all temperatures and climates.
Made of solid 34mm diameter 6061-T6 aviation grade aluminium tube, 5-30XFFP is equipped with high sensitivity and wind direction adjustment handwheel. The total adjustment range is 24 MIL, each click value is 0.1 MIL.
A First focal plane optical system is designed to meet the requirements of competitive shooting. The first focal plane can keep the scale value of the aiming point unchanged at any magnification.
Adjusting for distance and windage is easy with the side focus parallax adjustment knob, The parallax adjustments ranging from 10 metres to infinite.
The 5-30x56 Tactical Rifle scope main tube is 34MM. It is nitrogen-sealed to prevent internal fogging and protect the scope from water, shock, and exterior fog.
The wide field of view makes it easy to accurately sight your targets, and the scope's 4 inch eye relief keeps your eyes from getting tired during a long working.
Specification:
• Magnification: 5-30
• Objective lens: 56mm • Tube piece: single
• Tube size: 34mm
• Coating: FMC
• Field of View(ft@100yds): 22.8~ 4.3
• Windage Range of Adjustment: 90mil
• Elevation Range of Adjustment: 70mil
• Mil Adjustment: 0.1
• Finish: Matte black
• Waterproof: Yes
• fogproof: Yes
• Max Recoil: 1200g/s
• Nitrogen: Full filled Nitrogen
• Side Focus: 10 ~infinity
• Reticle: Glass-etched MIL
• Length: 375mm
What 's New
Lightweight Design
Most optical sights, with 34 mm or 35 mm tubes, usually weigh badly, usually about 1,000 grams or more; however, these problems do not exist in SS5-30 X56 FFP products, because SS5-30 X56 FFP uses light metals instead of some traditional heavy-duty materials inside. The total weight is less than 900 grams, lighter than most similar products, and even close to the weight of the optical sight of 30 mm tubes.

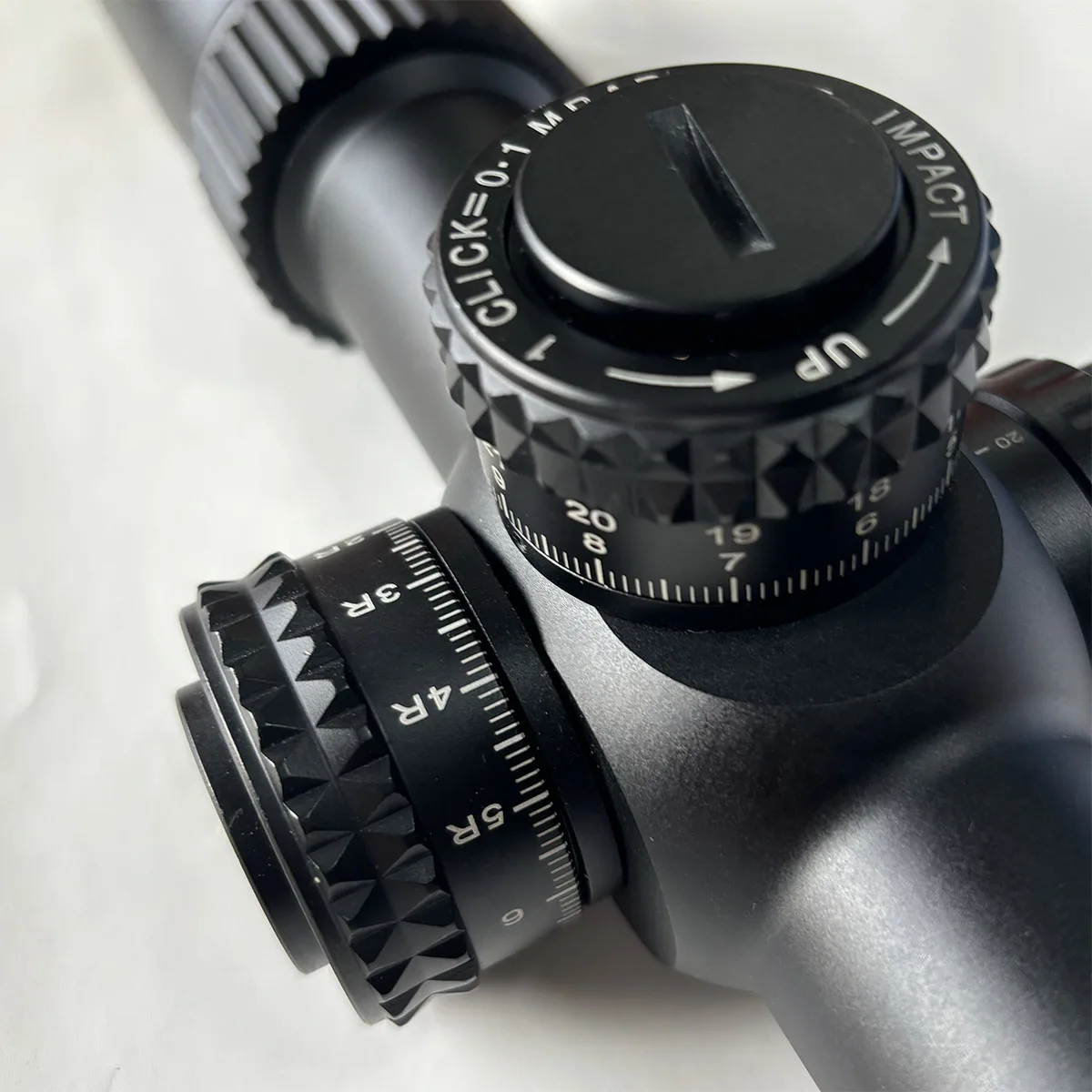

Steel Turret Gear
Most optical sight turrets have gears, and the accuracy of gears determines the accuracy of the sight. Usually the material of gears is mainly copper or aluminium, and even some high-end products are made of copper. Our 5-30X56 uses steel. After finishing all gears, quenching and hardening heat treatment is added. It's very wear-resistant and improves its life. In the optical sighting industry, steel gear is always a production problem. If the material is too soft, the hardness of the gear is not as good as copper, but if the hardness of steel is higher, the processing is very troublesome. After heat treatment, the size is prone to change. But we solved that.
Strong Metal Structure

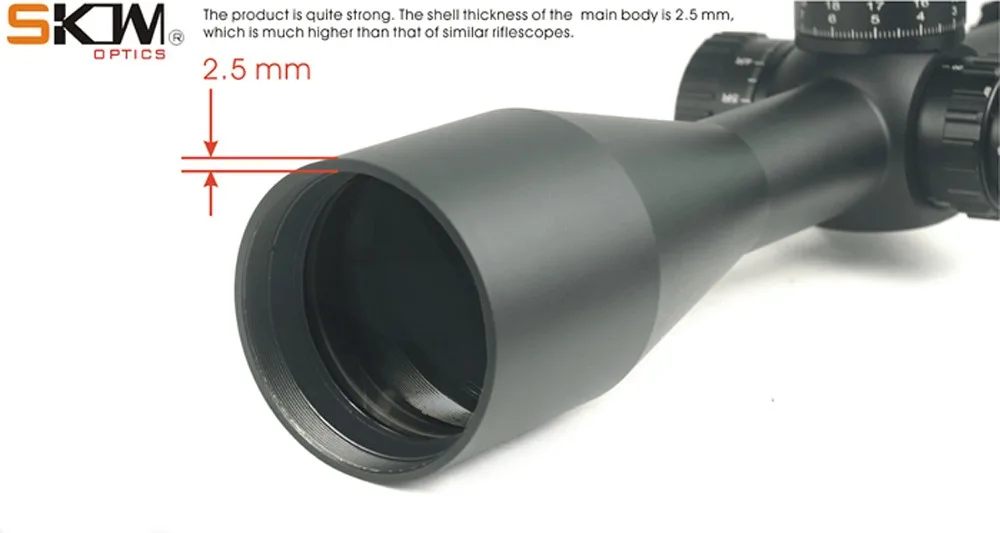

The main tube of the riflescope has a shell thickness of up to 2.5 mm. It is well known that most of the ordinary optical sights are 1.8 mm, and a few are 2 mm. This model is mainly used for powerful rifles(sush like 0.5 bullet, so the product is reinforced from inside to outside. It can ensure reliable use in harsh Situation.

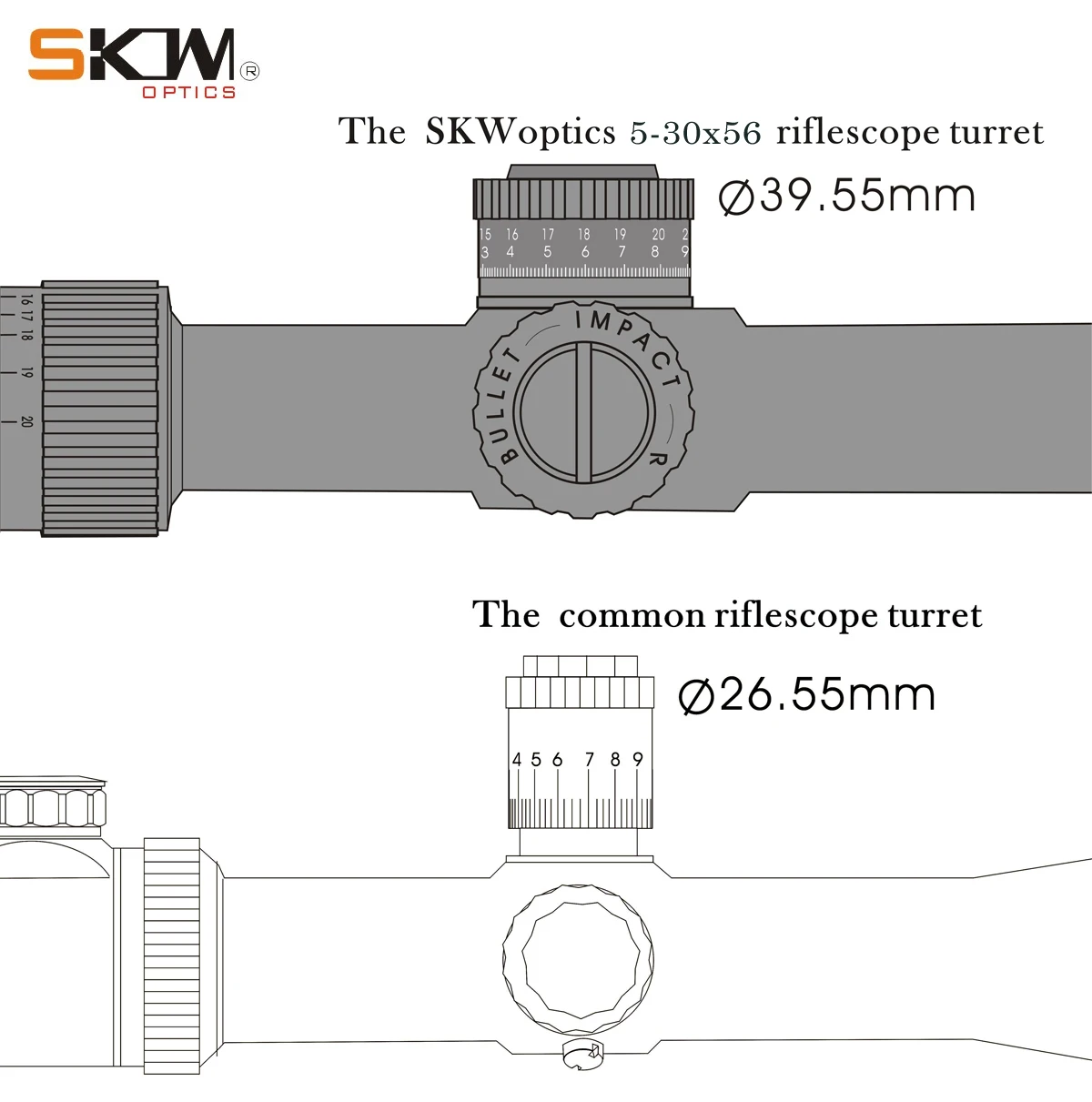

Big Size Turret.
Compared with the standard small diameter gear, the turret of SKWoptics optical sight reduces the total number of turning cycles on the premise that the total amount of adjustment is the same. In this way, the height of the turret is effectively reduced. The internal structure of the product is more compact and the failure rate is lower. As follows: SKWoptics 5-30X56 turret has only two adjustments, but it reaches 24 MIL (82.48 MOA) and 12 MIL (41.24 MOA) per turn. Ordinary optical sight turrets with small diameter usually rotate about 4-6 cycles to achieve such a total adjustment.
Features:
First Focal Plane Reticle

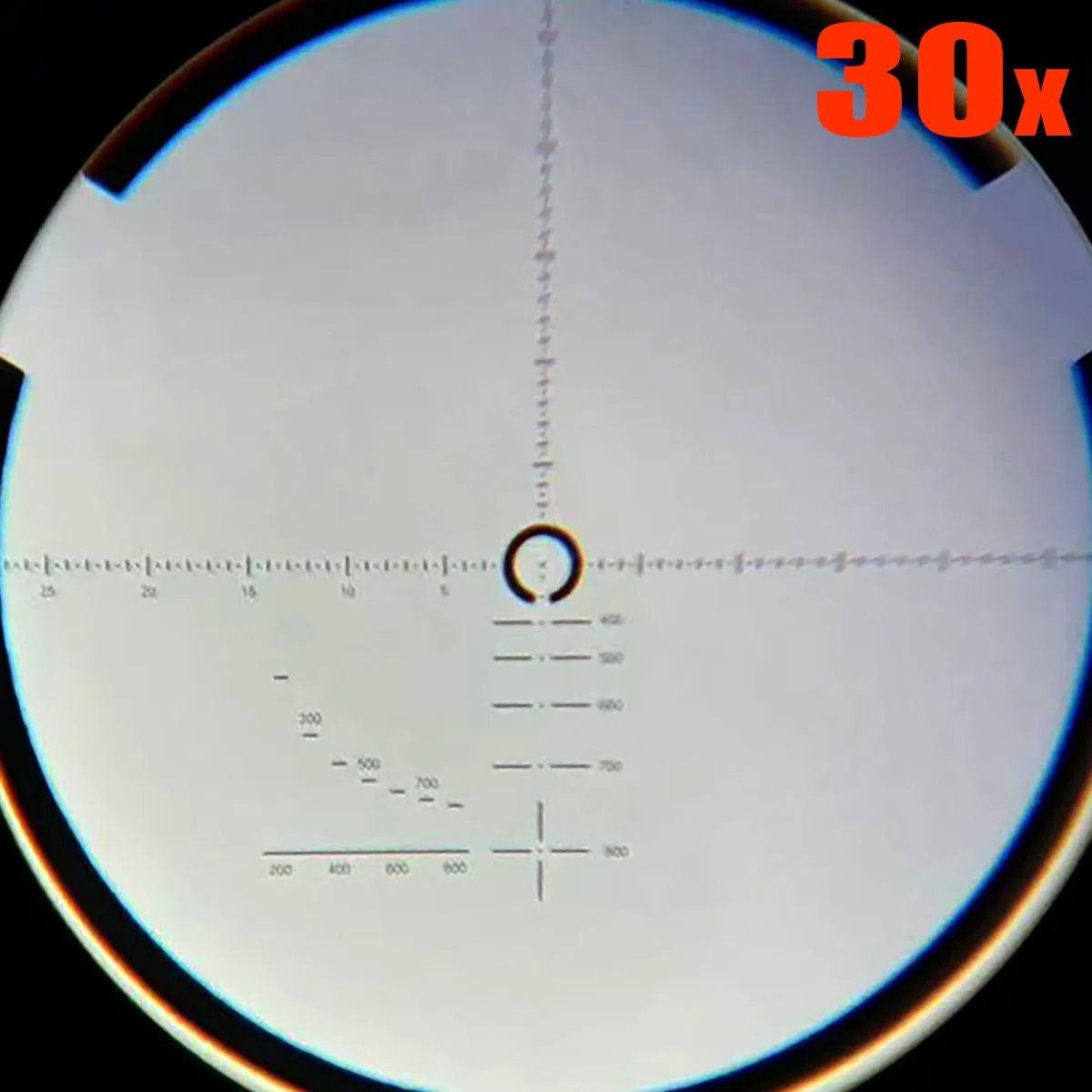

First focal plane reticle stays valid at all power settings allowing you to fully utilize the specially designed reticle that shrinks or grows along with your target as you zoom in or out. The reticle offers quick target engagement at low power while offering precise holdover positions with finer details.

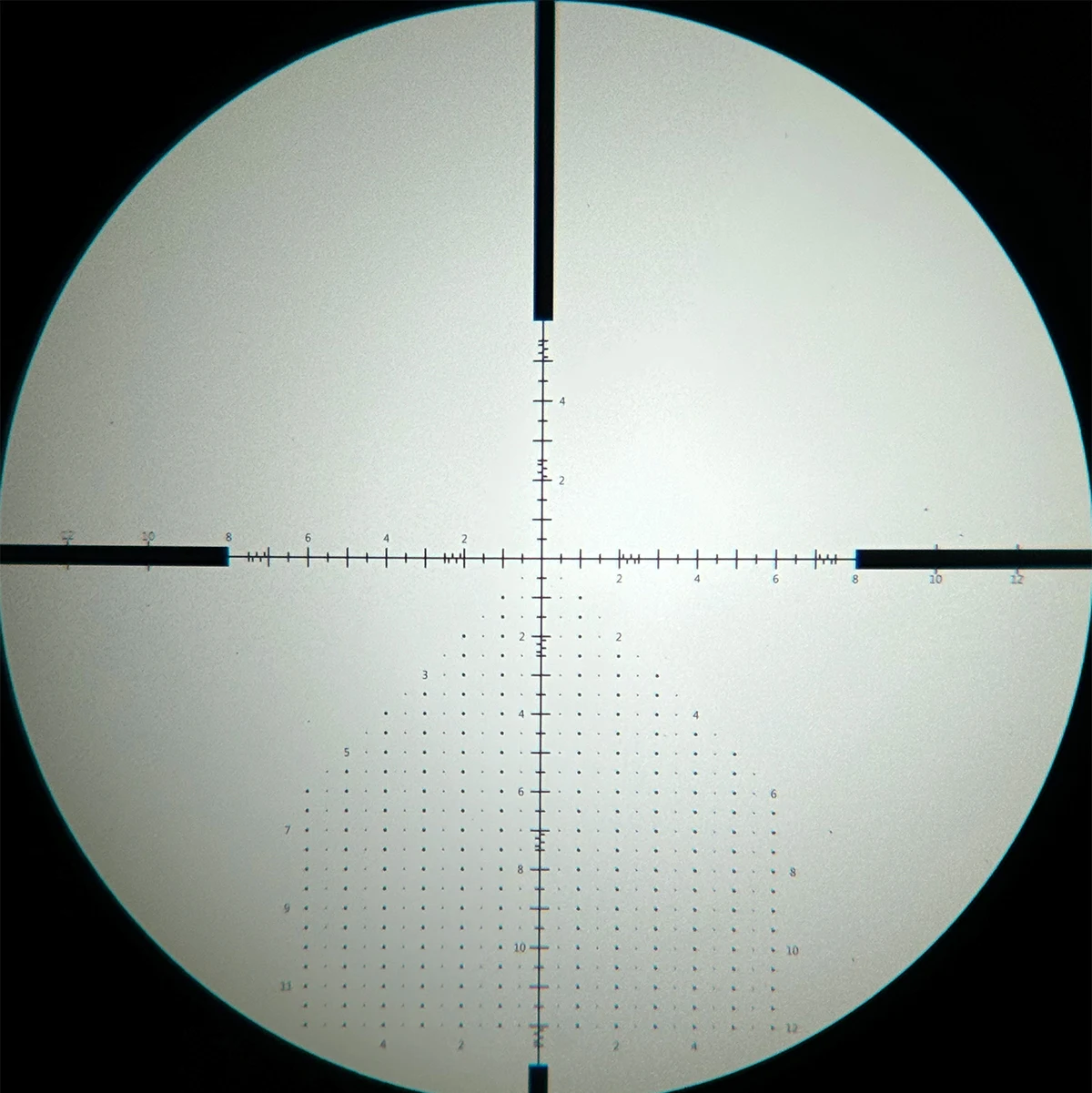

Etched Glass Reticle
Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Fully Multicoated
Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Physical hard Coating
Physical hard Coating gives you an extra protection on the exterior lenses from dirt, oil and scratches or anything else mother nature can throw at you.
6061 T6 Aluminum
The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.

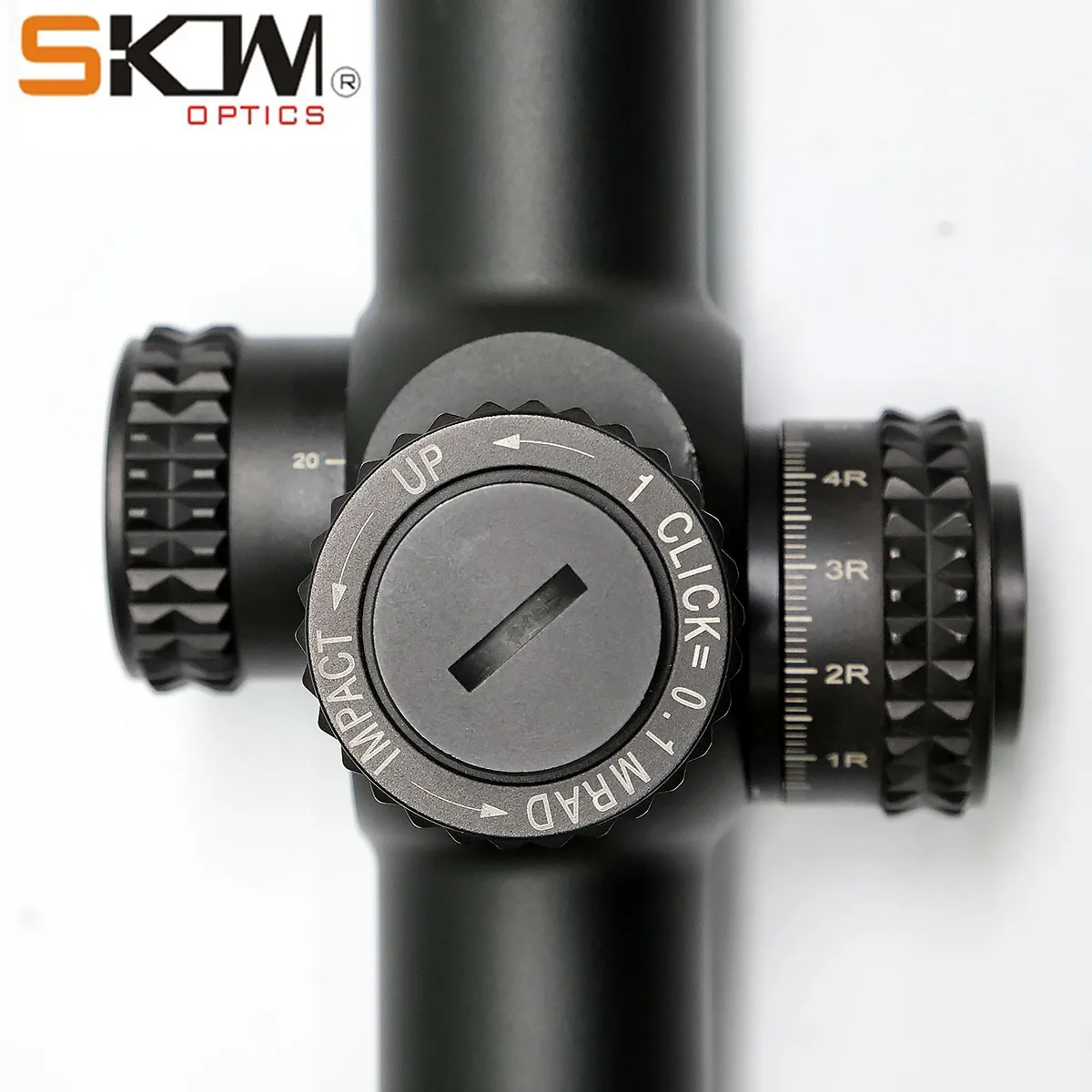

Exposed Tactical Direct Dial
Exposed Direct Dial Turrets for elevation and windage allow you to quickly make adjustment as you needed and engage your target within a blink of your eyes
One Piece Tube Construction
Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof
Waterproof to protect the scope in the harshest weather conditions or if accidently submerged underwater
Fog proof
Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside
Shockproof
Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Nitrogen Purged
Nitrogen Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability .
0
0
Packaging details:
SS5-30x56 scope 1pc
Flip-open scope cap 2pcs
Lens cleaning cloth 1pc
What is FFP rifle scope:

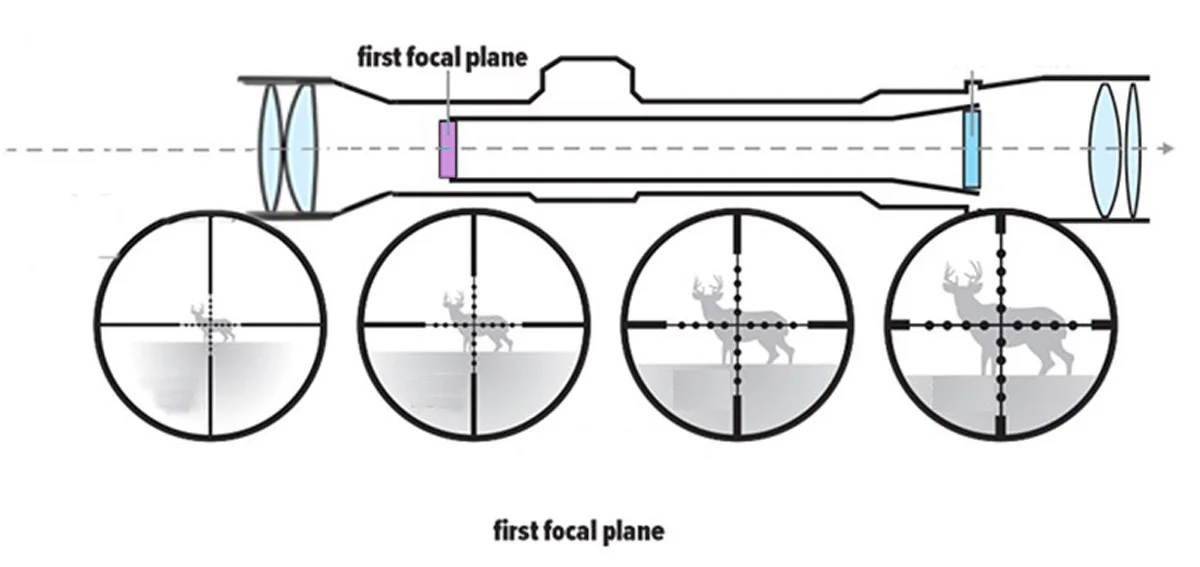

FFP is the abbreviation or abbreviation of "first focal" . Most modern variable powered riflescopes will have the reticle installed in one of two ways, in the first focal plane or the second focal plane. Now, there are one or two manufacturers that have scopes with reticles in both focal planes but this is more the exception than the rule. The focus of this article though will be the differences between FFP and SFP reticles and what that means to the shooter. First Focal Plane: First focal plane optics are fairly common with many European manufacturers however that is no so much the case with some American optics companies. It wasnrsquot until just recently that some of the larger names in the American optics industry began to offer scopes with first focal plane reticles. Part of the reason is that this method is costly and time consuming from a production and design stand point. First focal plane optics have the reticle installed towards the front of the erector or forward of the lenses that help control the magnification range of the scope. What this means is that as that scope goes through its magnification range the reticle will appear to change size, becoming thinner or thicker depending on the magnification. The reticle isnrsquot actually changing size but is in fact maintaining its size relative to the target image in the scope meaning that its subtensions stay the same. With the subtensions staying the same throughout the magnification range range estimation, trajectory compensation, and zeroing can be performed on any power greatly increasing the scopes utility. The rough diagram below shows reticle placement in a first focal plane optic. Note its forward position in the erector.

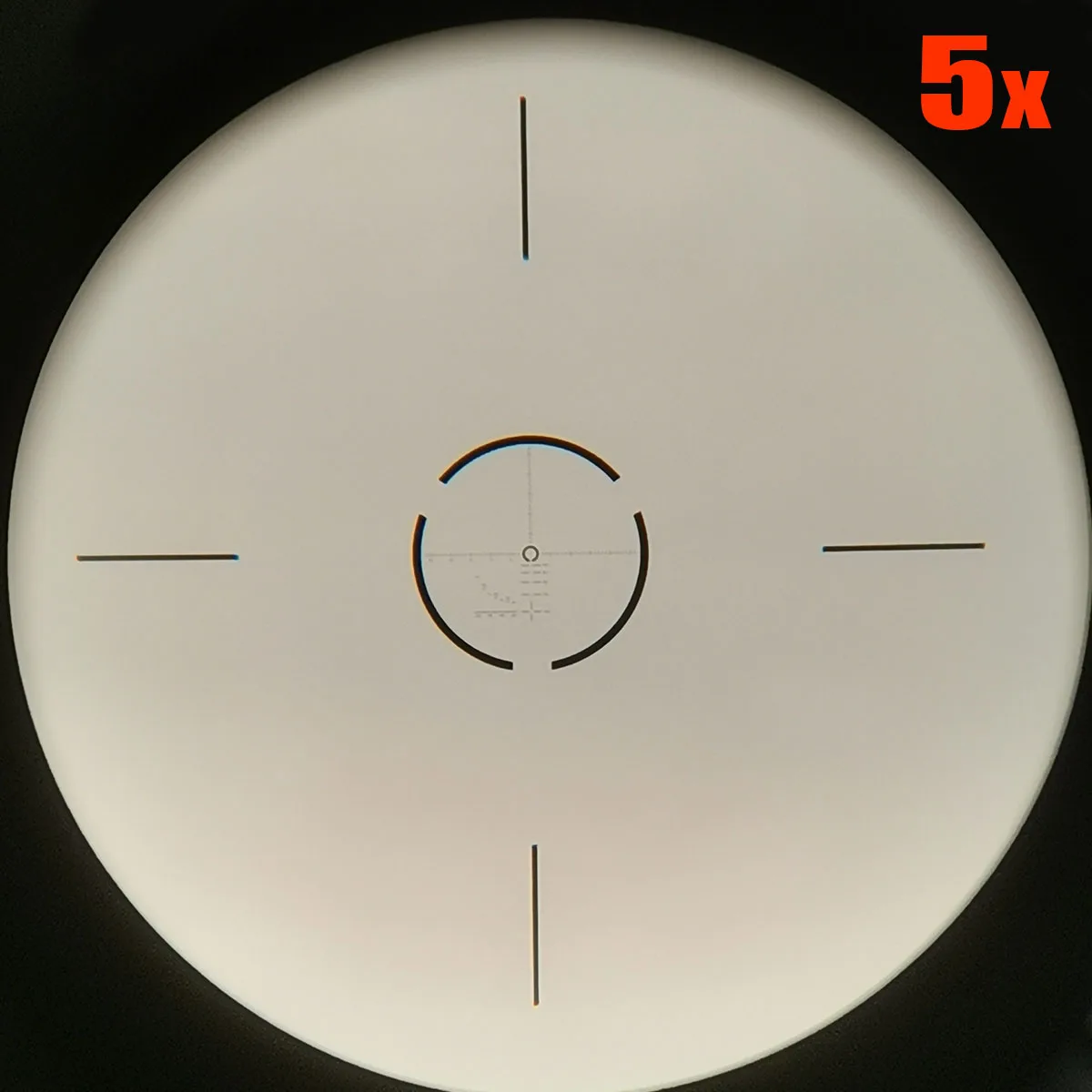

Below is an example of what the reticle would look like while looking through a FFP optic on high and then low power. Eventhough the reticle appears to get smaller or thinner, it is in fact staying the same size relative to the target.
0
About SKWoptics
SKW Optical Technology (Shenzhen) Co., Ltd. It is located in Shenzhen, China. it is a manufacturer of high quality optical equipment for both military and civilian use. Our company specializes in the production of professional optics sight. Product categories are: lens type, prism type, red dot type, holographic type (including mechanical type). According to product structure classification: lens sight, prism sight, red dot sight, holographic sight (including mechanical sight).They can be reliably used in military and civilian firearms. And we also produce spotting scope (for sniper or of for wild), binoculars, firearm tactics accessories (fully conform to international law), camouflage uniform、Tactical vest, gun carrying bags and a wide range of outdoor accessories for both military and civilian use. which are designed by expert engineers and military shooters. We produce an excellent full range of sight models suitable for guns of various applications, such as pistol, rifle, airgun, Shotgun, anti-equipment rifle, and sniper rifle. All products are manufactured by the most professional CNC precision machine tool and assembled by professional technicians. All of our products are tested by American Business Standards (Civil) and Military Standards (Military) before being delivered to customers. Aside from our excellent scopes, we offers firearm accessories such as bracket, tactical accessories，binoculars. As with all of our products, they are manufactured to meet both military and international industry standards. They have been chosen by users and militaries from many countries. All products are manufactured and tested in modern facilities by expert engineers and hunters. Each of our products fully conforms to international laws and standards. Our military products undergo similar (if not, better) quality controls. We can custom tailor each item to meet our customers’ individual requirements. Most importantly, we can do this year round. It goes without saying: we will back our claims with a warranty.
