Válvula DIN, válvula de carga de tanque de aire, estación de llenado, adaptador de recarga de cilindro, 4500psi/300bar, rosca de medidores duales M18 * 1,5 o 5/8-18UNF

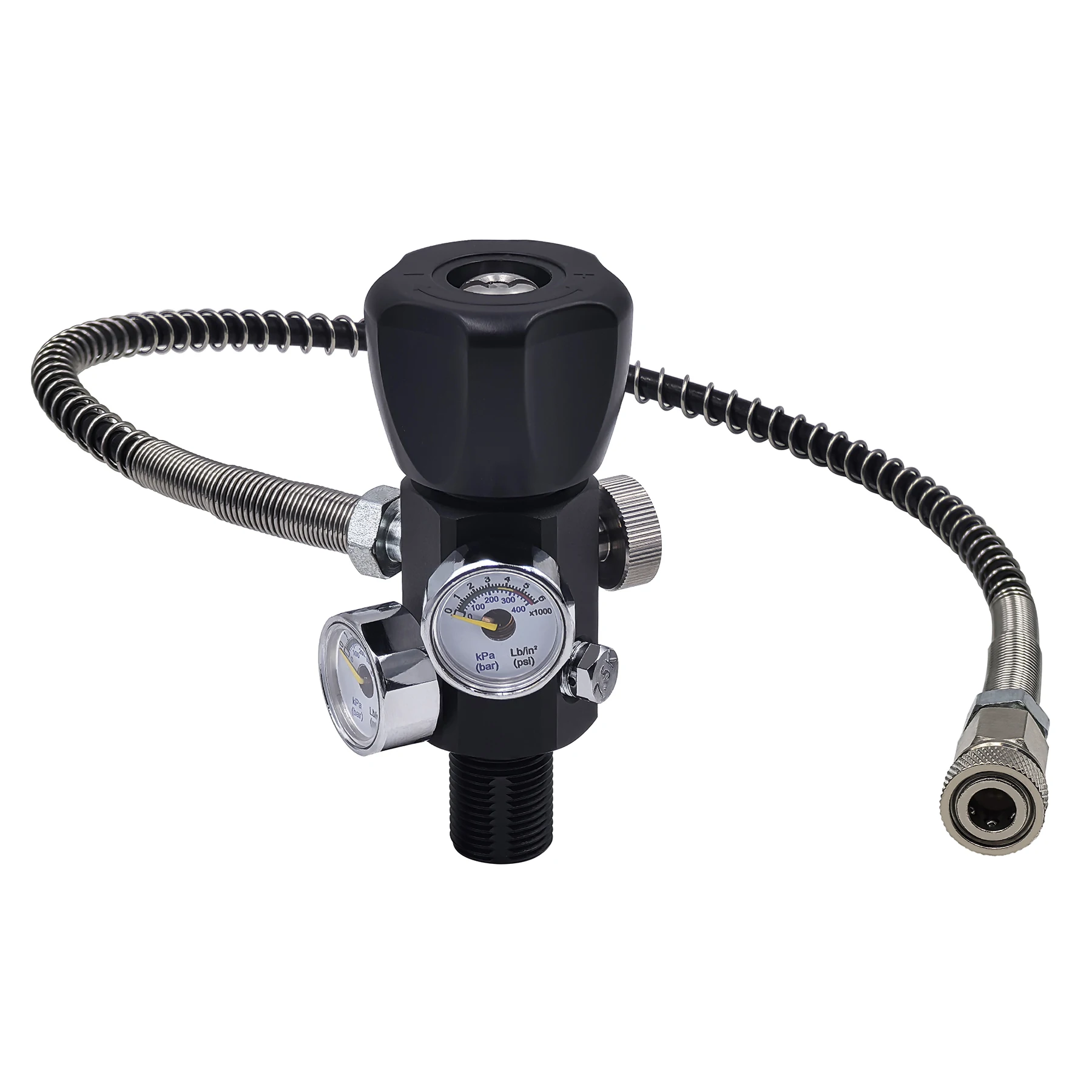

DIN Valve Air Tank Charging Valve Filling Station Cylinder Refill Adapter 4500psi/300bar Dual Gauges Thread M18*1.5 or 5/8-18UNF

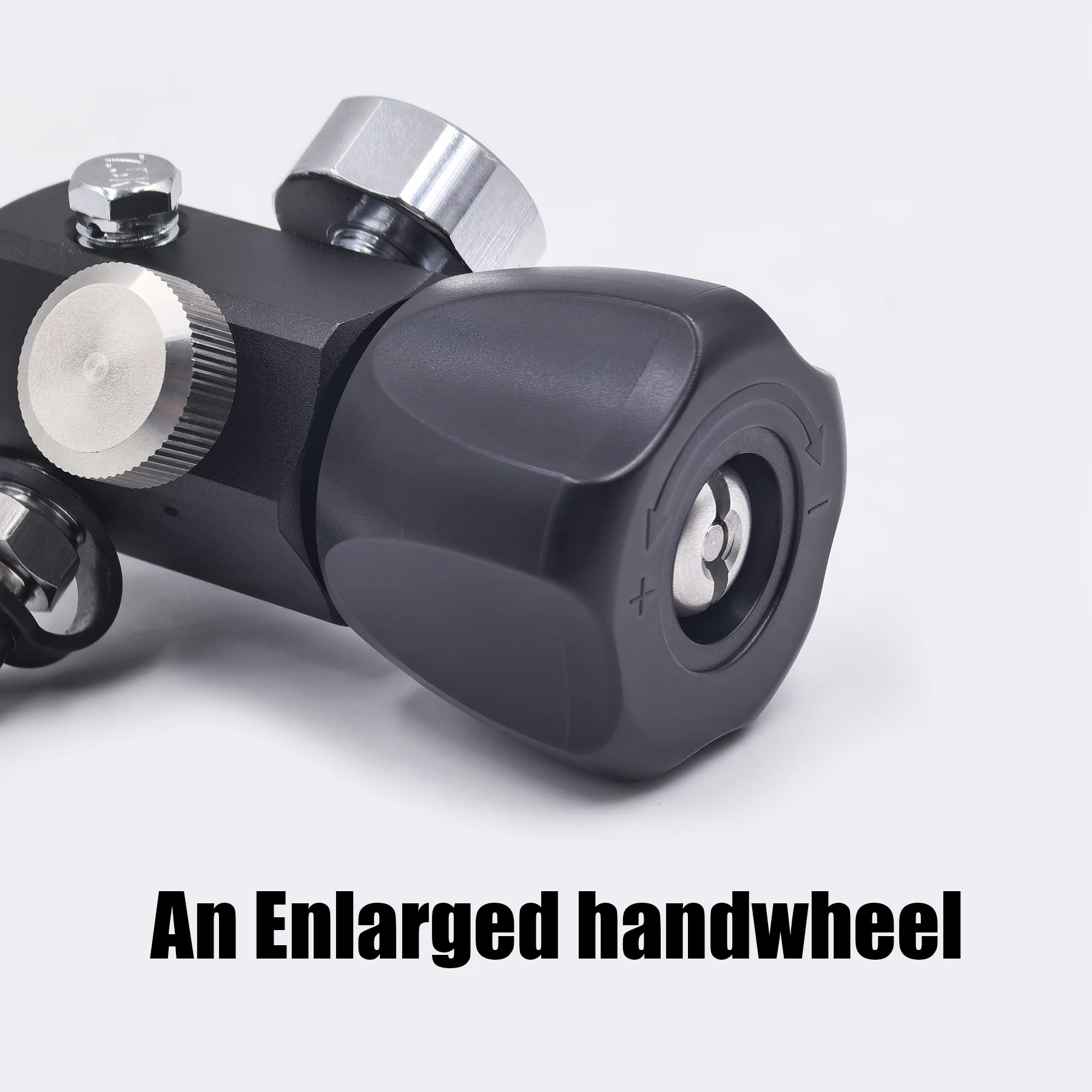

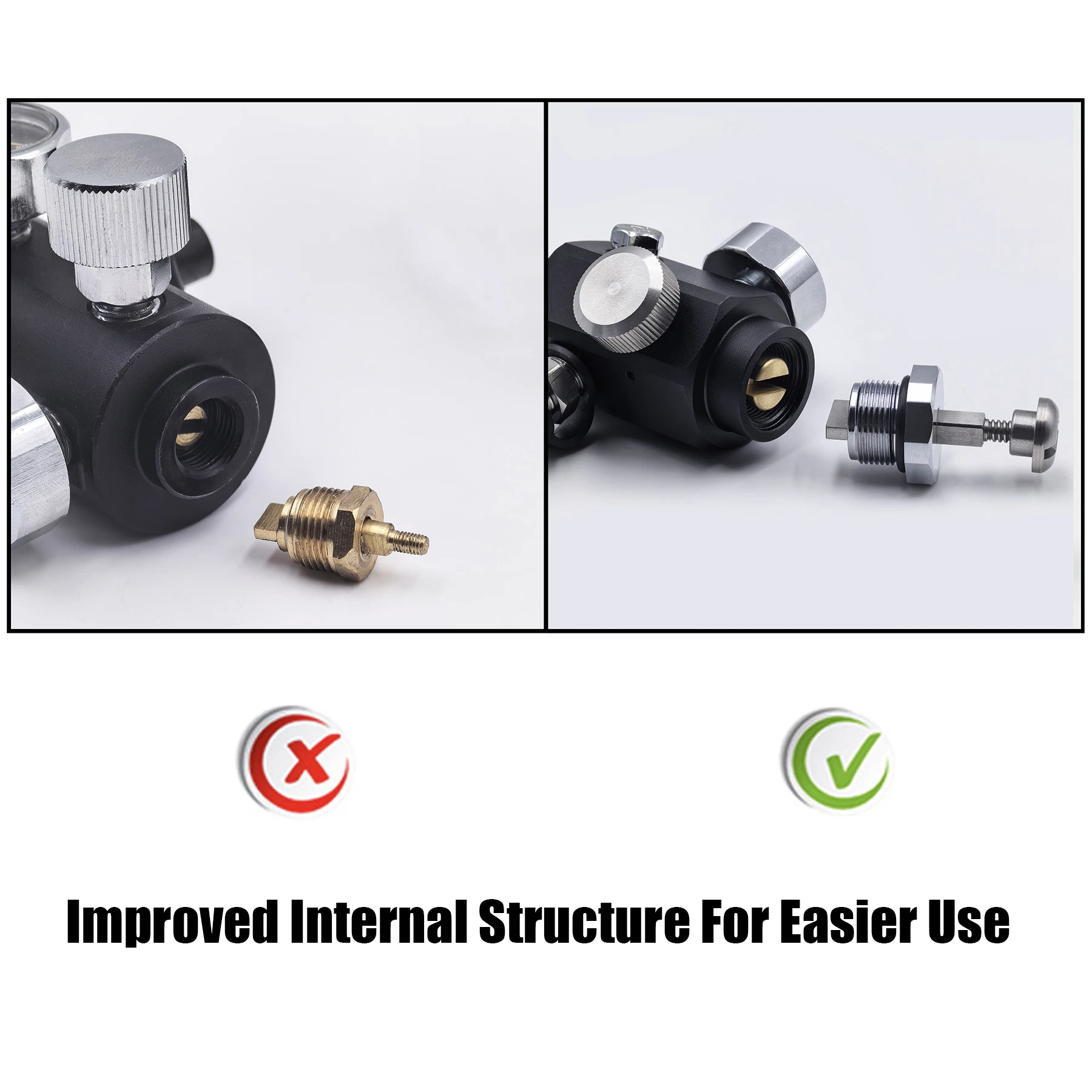

Important improvements ~ Improved the structure of the internal air chamber and the shape of the handwheel, making it easy to operate even under high pressure. All core components have been changed to stainless steel material.

Parameters ~ Max Input pressure: 4500psi/300bar, Input Thread: M18x1.5 or 5/8"-18UNF, Output Adapter: Standard 8mm female quick disconnect.

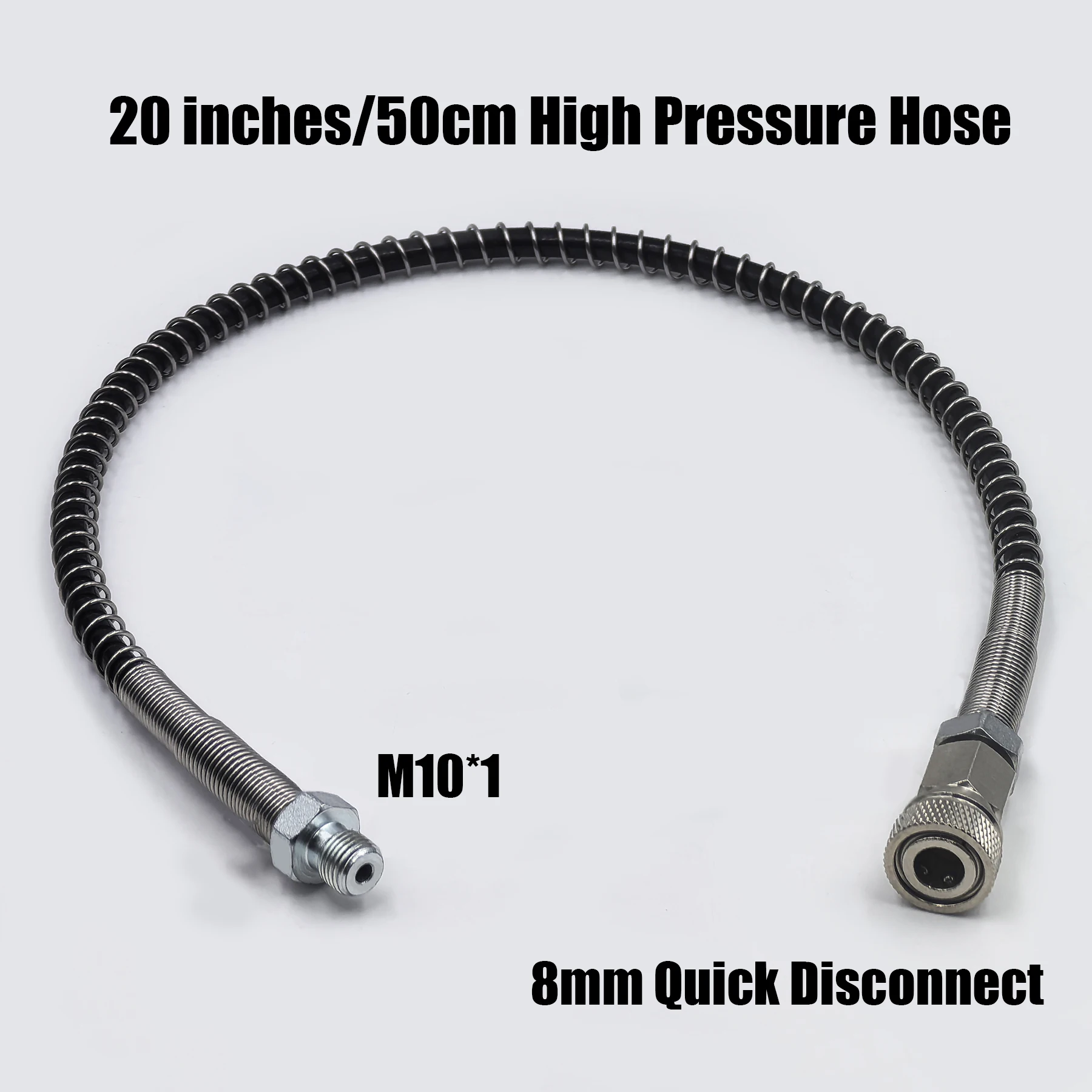

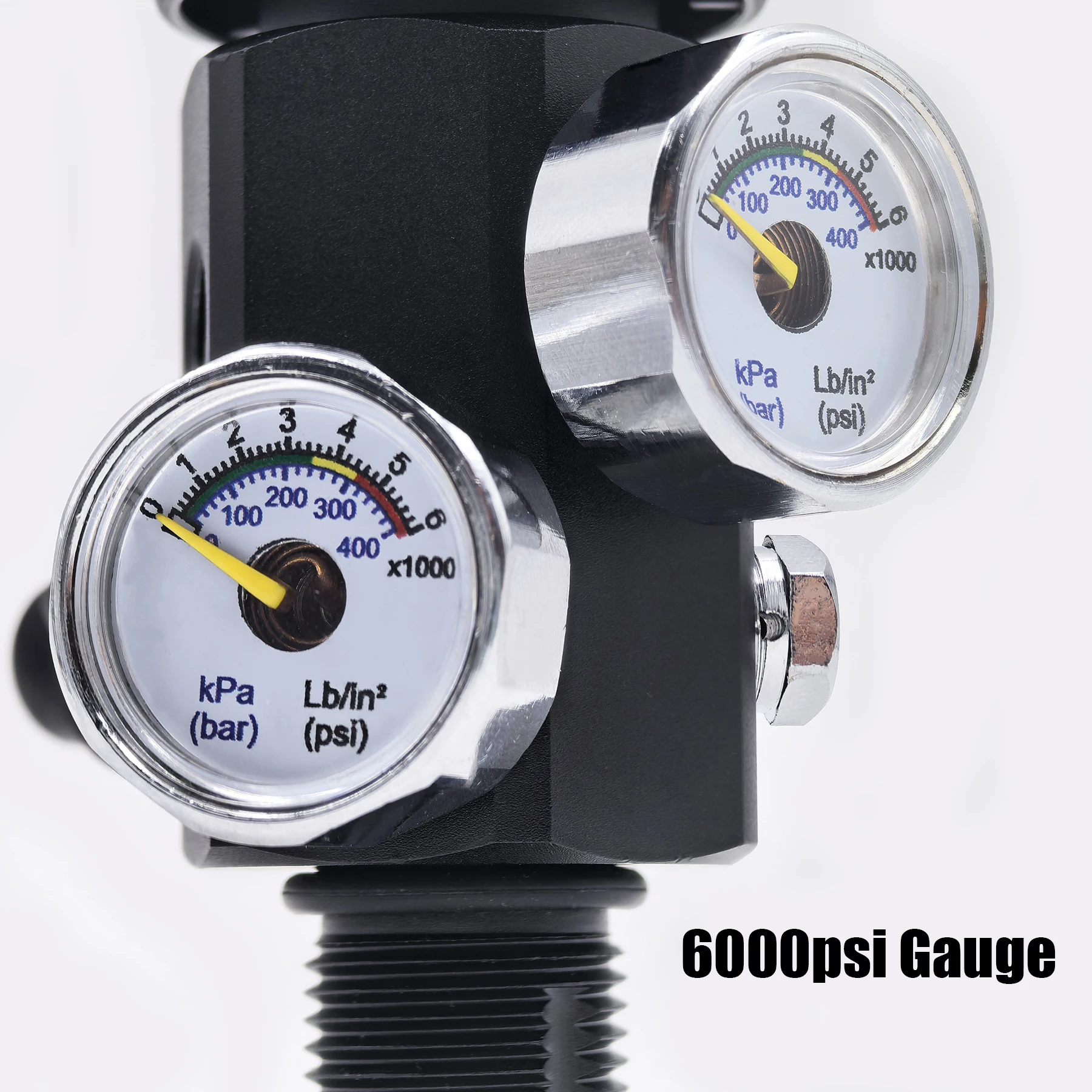

Two gauges design ~ One gauge displays the pressure inside the cylinder, and one gauge displays the output pressure. With 20 inches/50cm high pressure hose with spring protector.

Simple operation ~ Easy to operate, without training, anyone can easily operate it. It can quickly filling and deflate.

Widely used ~ It is can be used in various industries such as paintball, PCP, airsoft shooting, diving, mountaineering, firefighting, medical facilities, and mineral mining, household soda water, etc.

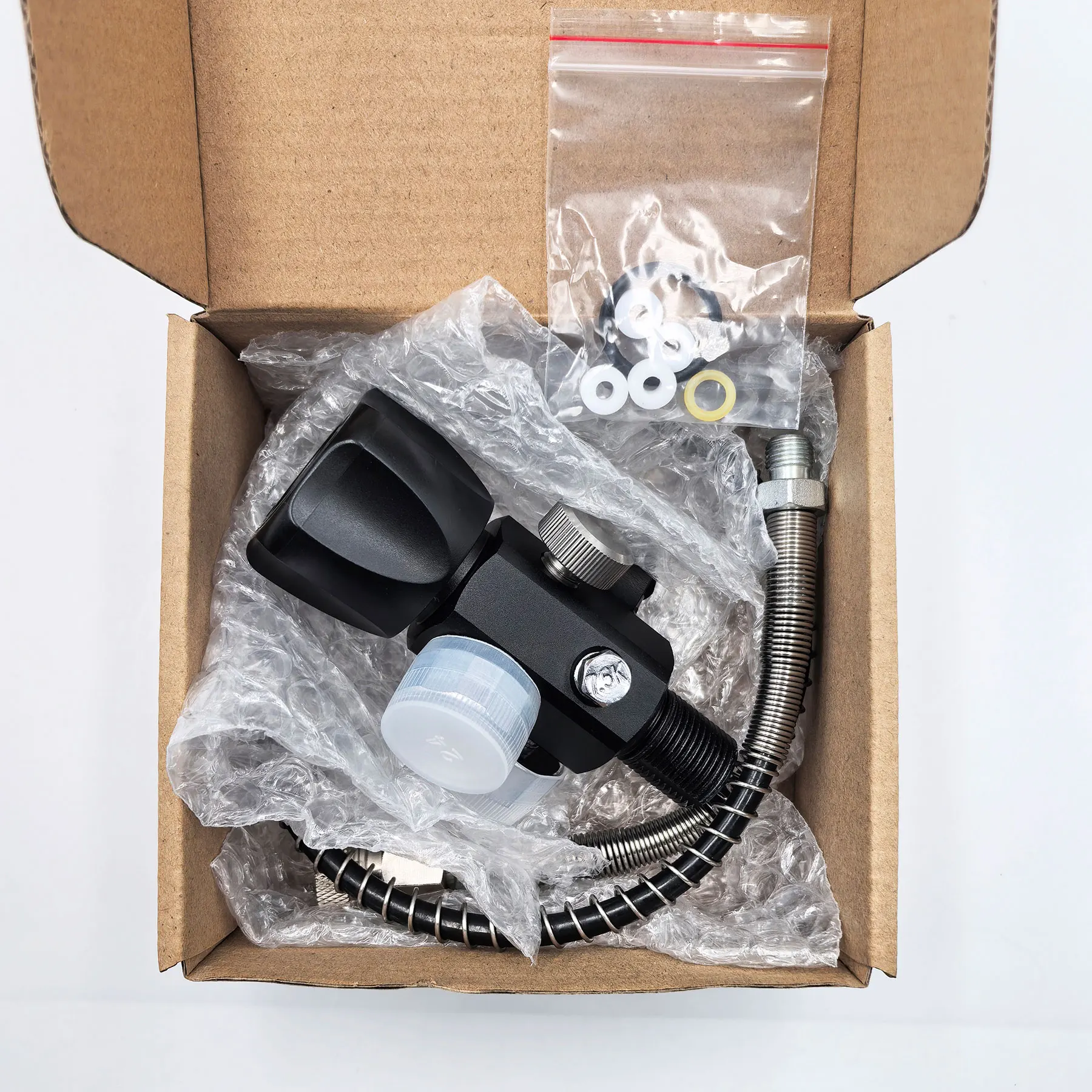

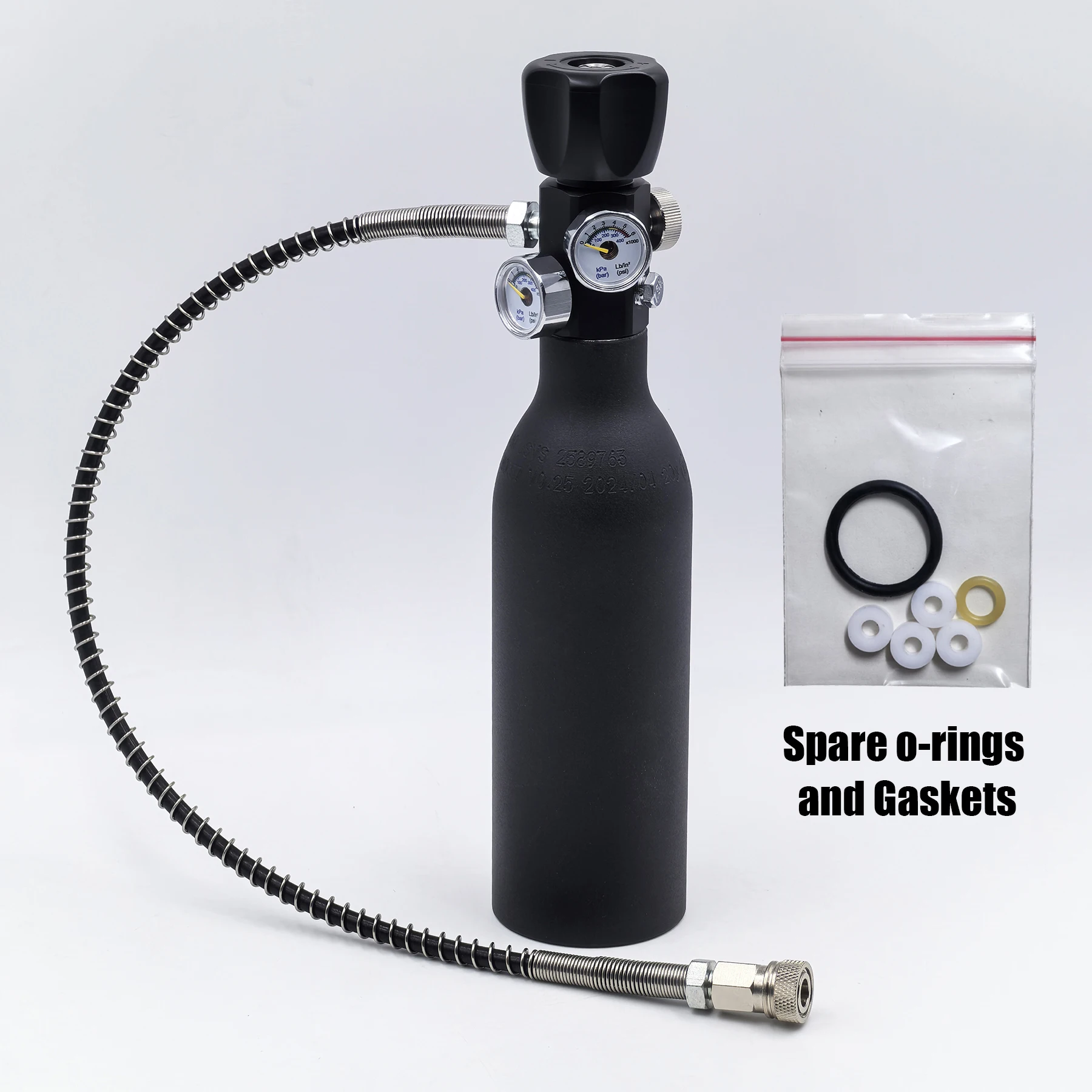

Comes with spare O-ring and gaskets.

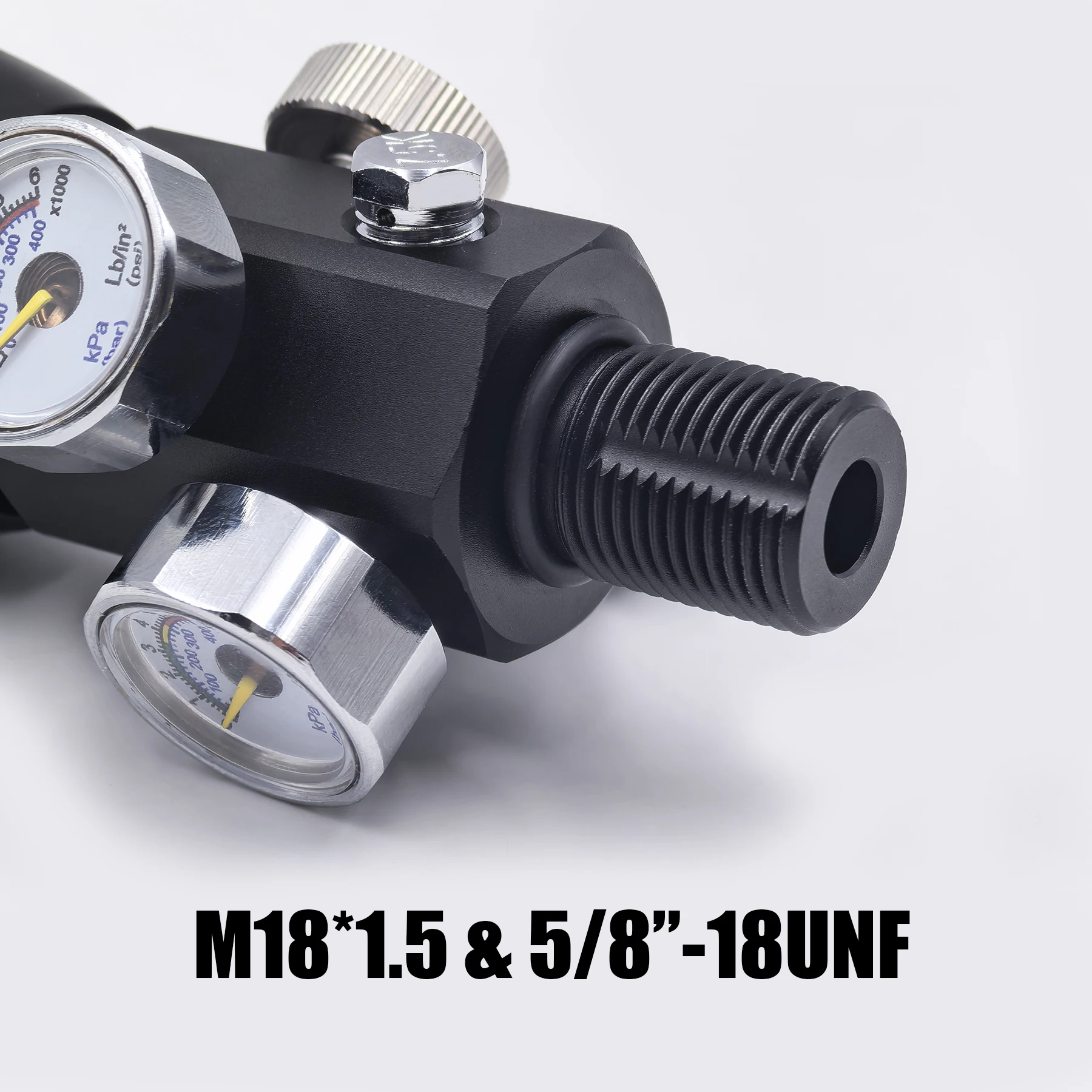

Input thread: M8*1.5 or 5/8"-18UNF
Output: 8mm female quick disconnect
Max working pressure: 4500psi/300bar
Hose length: 50cm/20inches
Material: Stainless steel and Aluminum alloy

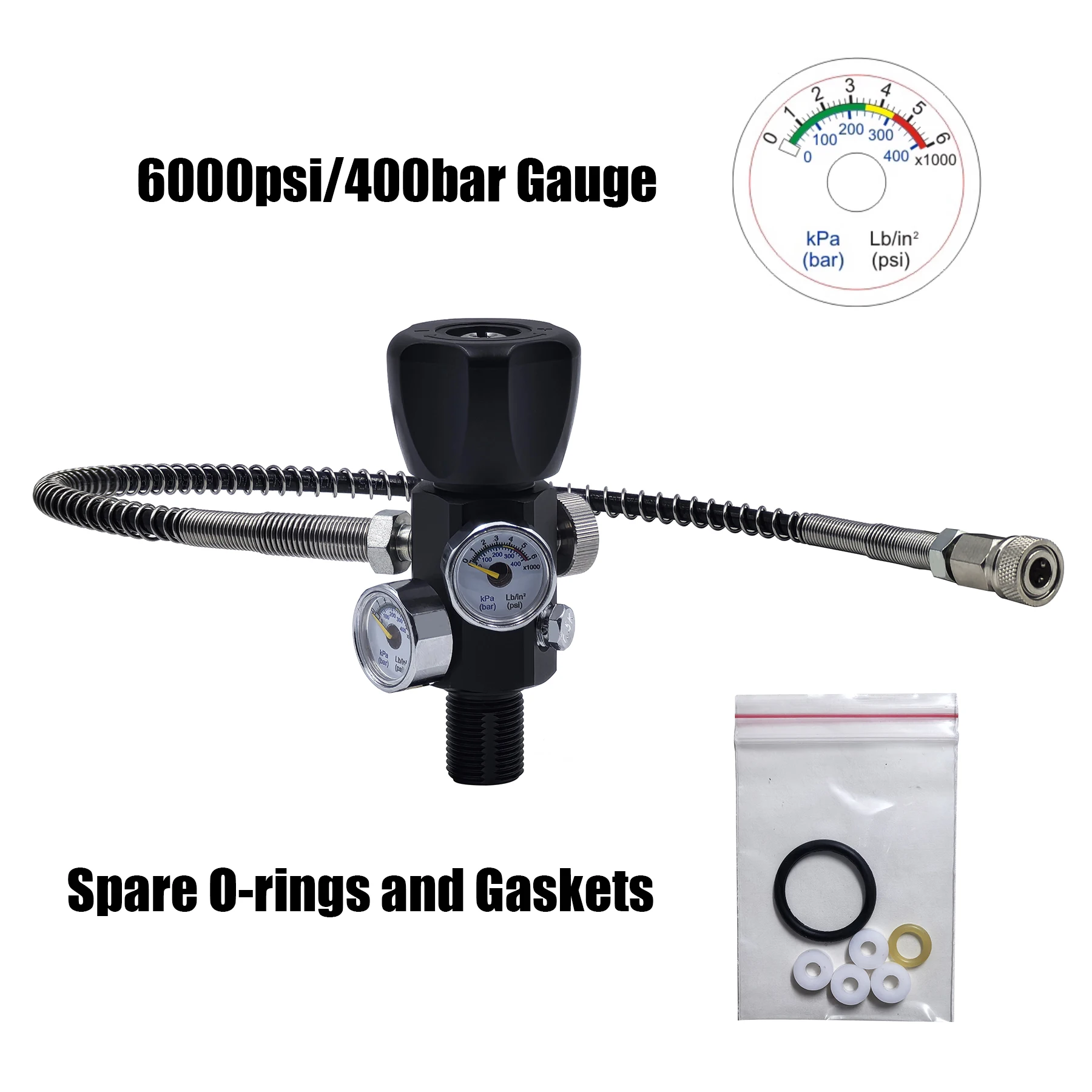

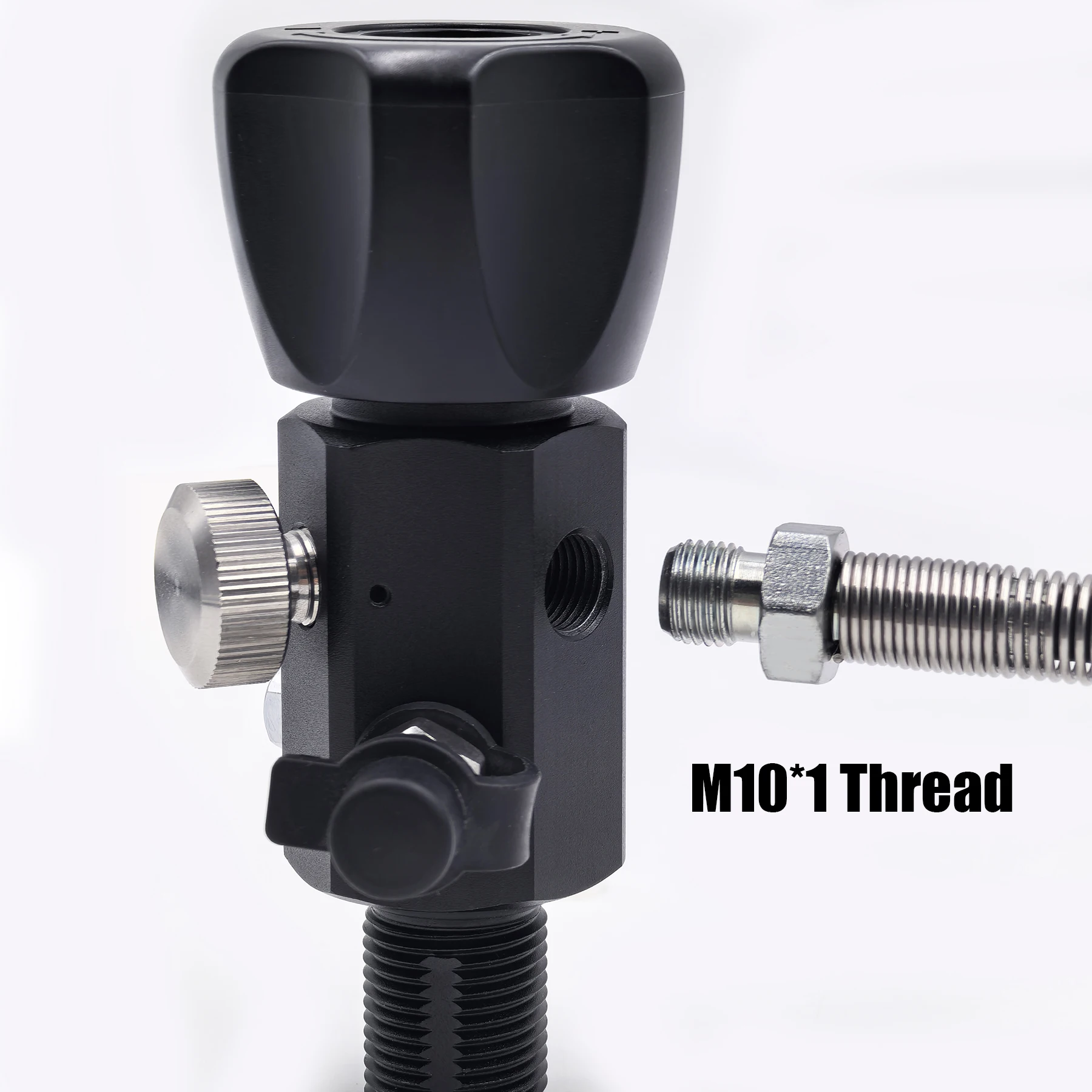

Gauge: M10*1 thread 6000psi/400bar, 1inch dial

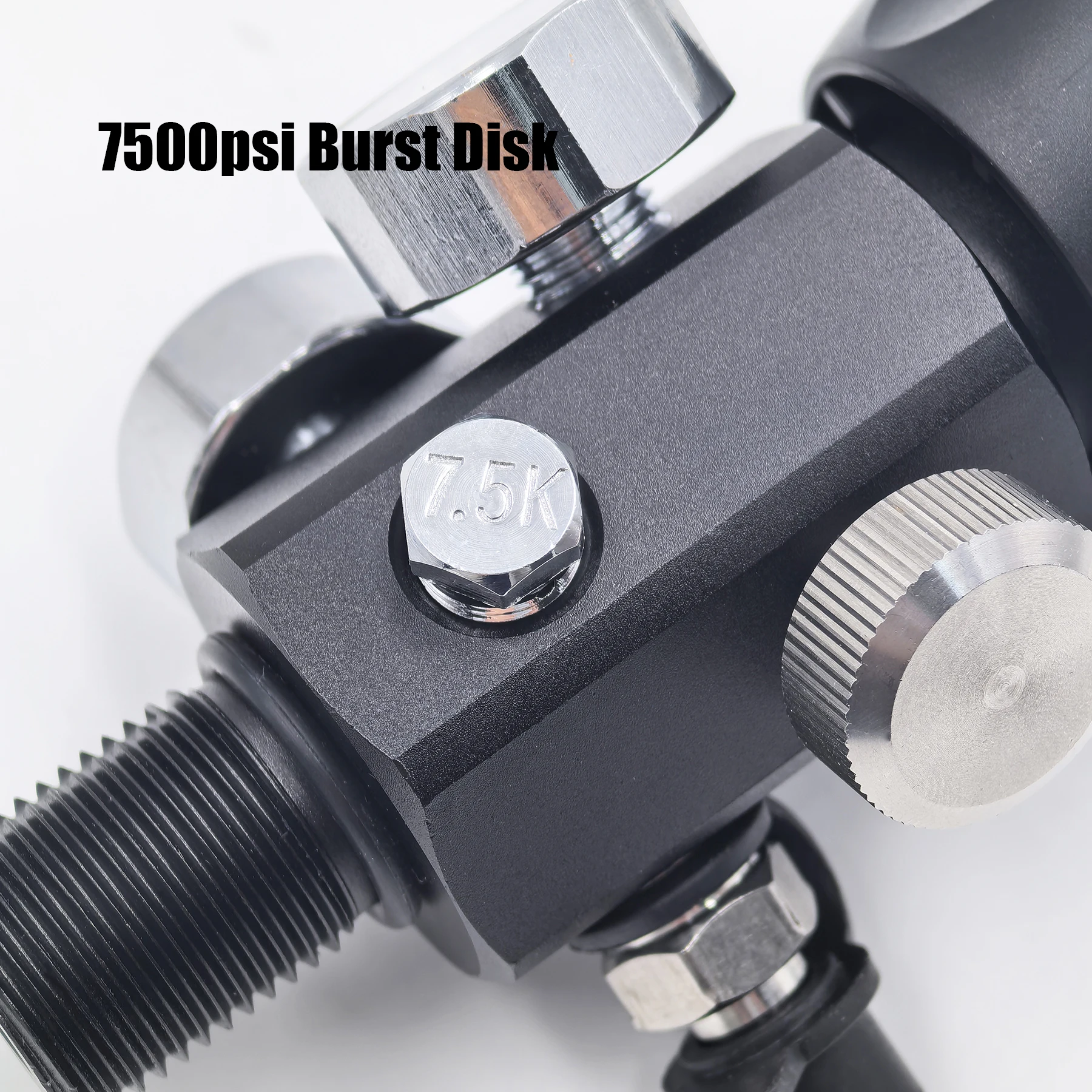

Burst disk: 7500psi/510bar

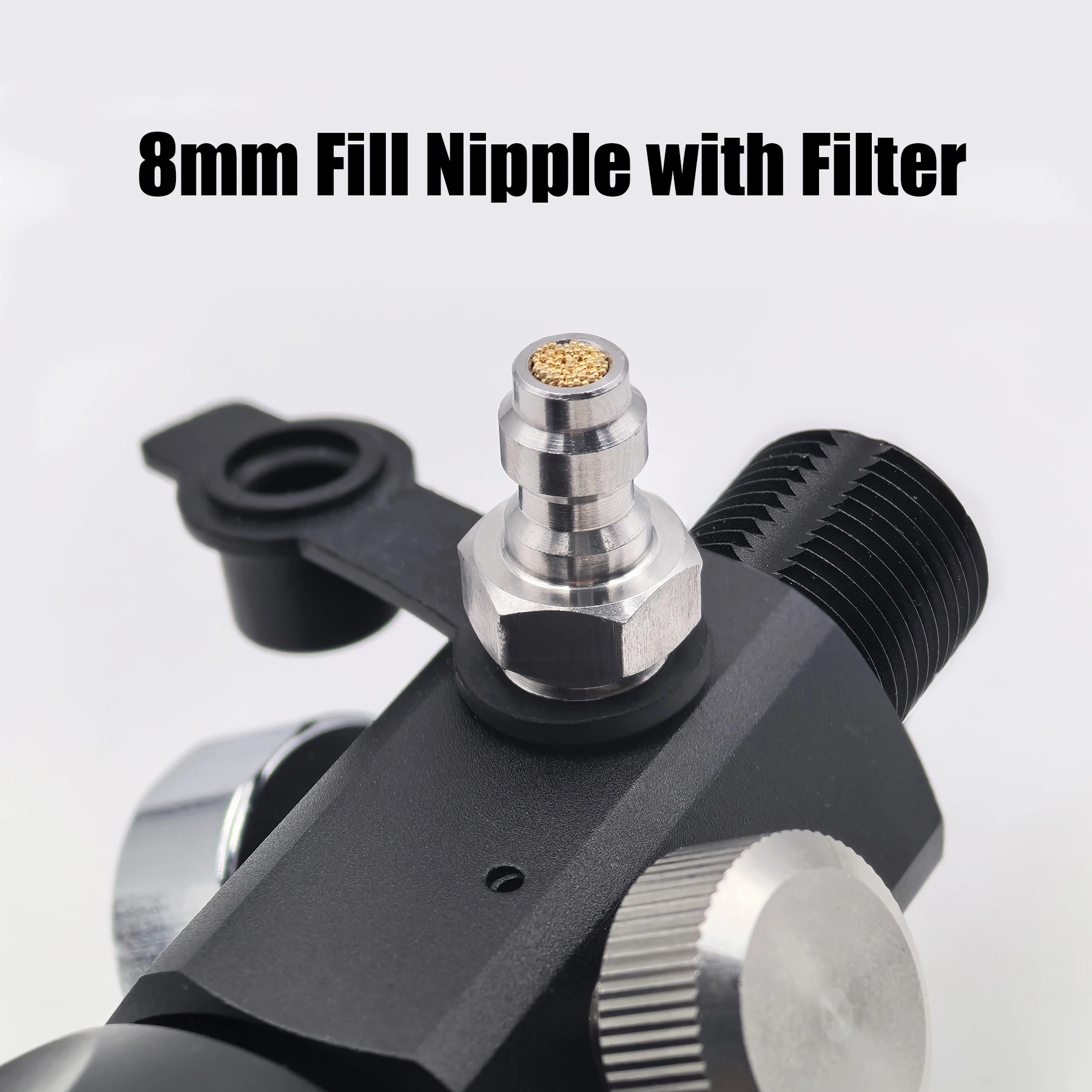

Fill Nipple: 8mm male quick disconnect with filter.
